Method for the continuous production of organically bonded boards of ligneous material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 20, 2003
Grant Date -
Dec 13, 2001
app pub date -
Feb 6, 2001
filing date -
Feb 6, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

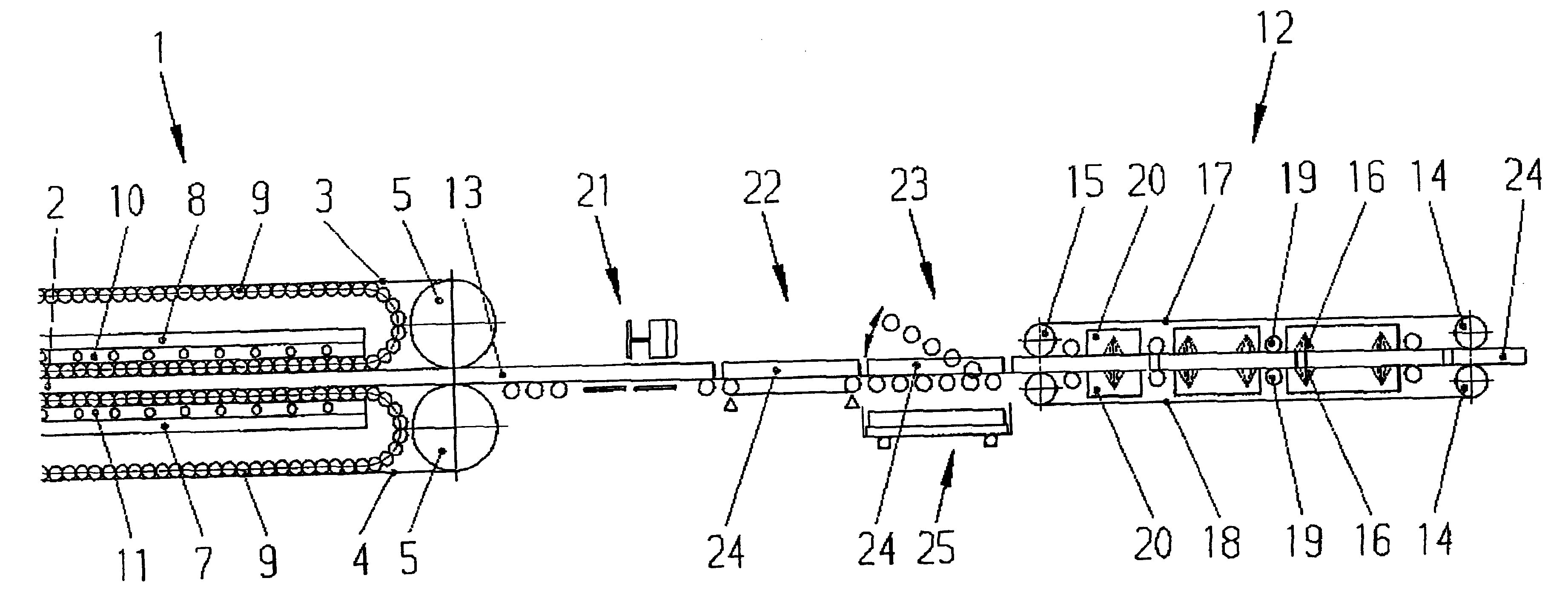

A method is provided for making ligneous material boards into an endless board strand with a continuously operating press. The press includes two flexible endless steel belts which take the press material between them and carry it through the press. The steel belts thrust with friction-reducing elements against heated press plates of the press table and press ram and a cooling system that follows. The cooling system is configured as a double-belt holding apparatus with an applicable holding pressure up to a maximum of 0 to 0.05 N/mm.sup.2. A diagonal sawing apparatus, which is disposed directly behind the continuously operating press and ahead of the cooling system, divides the board strand into single boards. Several rows of coolant spray nozzles disposed on the backs of the holding belts making contact with the single boards.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B29C Class
- 2.93 % this patent is cited more than
- 22 Age
