Drift stabilizer for reciprocating free-piston devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 20, 2003
Grant Date -
N/A
app pub date -
Apr 27, 2001
filing date -
Apr 27, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

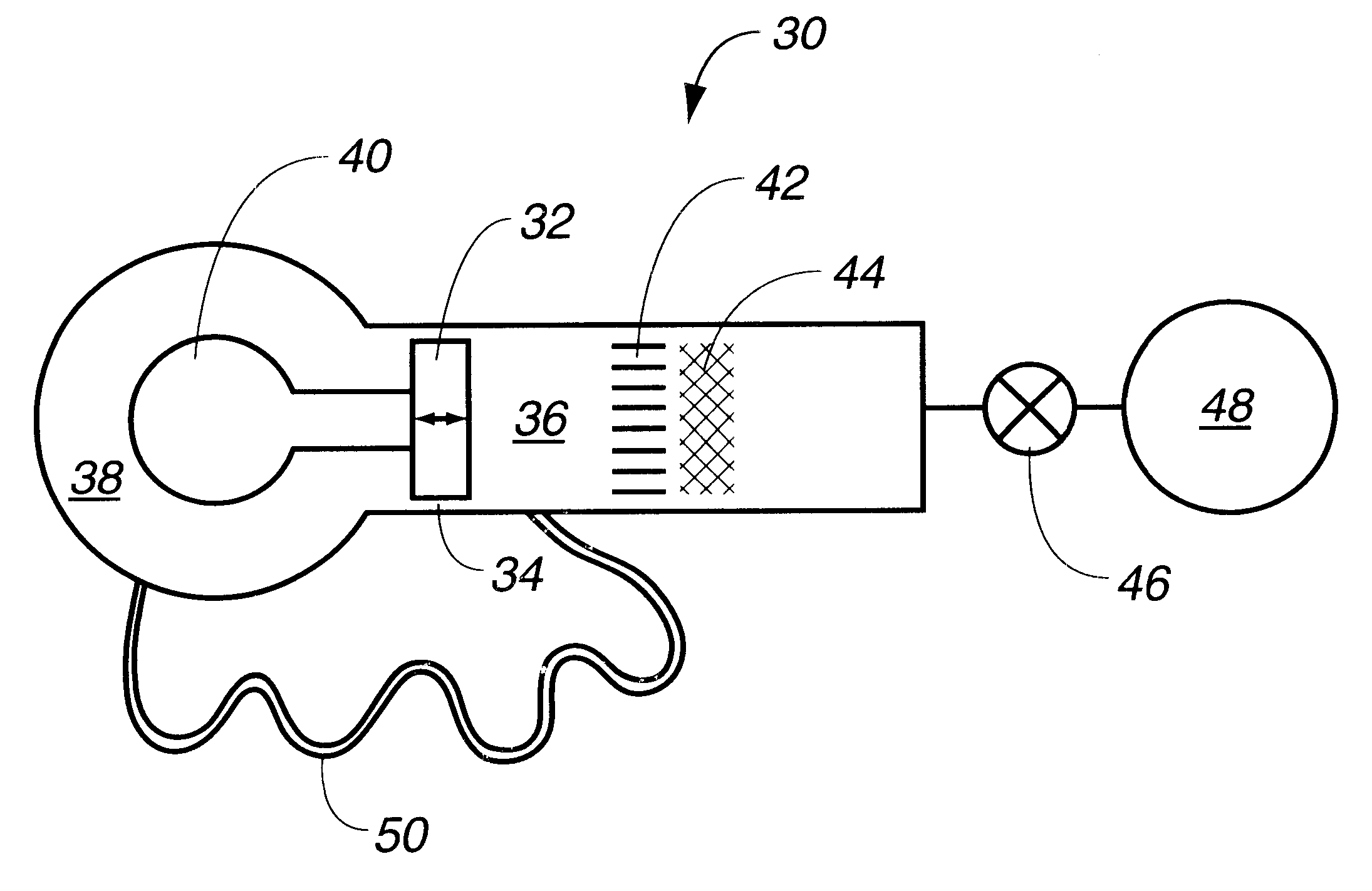

A free-piston device has a stabilized piston drift. A piston having a frequency of reciprocation over a stroke length and with first and second sides facing first and second variable volumes, respectively, for containing a working fluid defining an acoustic wavelength at the frequency of reciprocation. A bypass tube waveguide connects the first and second variable volumes at all times during reciprocation of the piston. The waveguide has a relatively low impedance for steady flow and a relatively high impedance for oscillating flow at the frequency of reciprocation of the piston, so that steady flow returns fluid leakage from about the piston between the first and second volumes while oscillating flow is not diverted through the waveguide. Thus, net leakage about the piston is returned during each stroke of the piston while oscillating leakage is not allowed and pressure buildup on either the first or second side of the piston is avoided to provide a stable piston location.
First Claim
Other Claims data not available
