Contacting-making system for two printed circuit boards
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 20, 2003
Grant Date -
Nov 8, 2001
app pub date -
Dec 1, 2000
filing date -
Dec 1, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

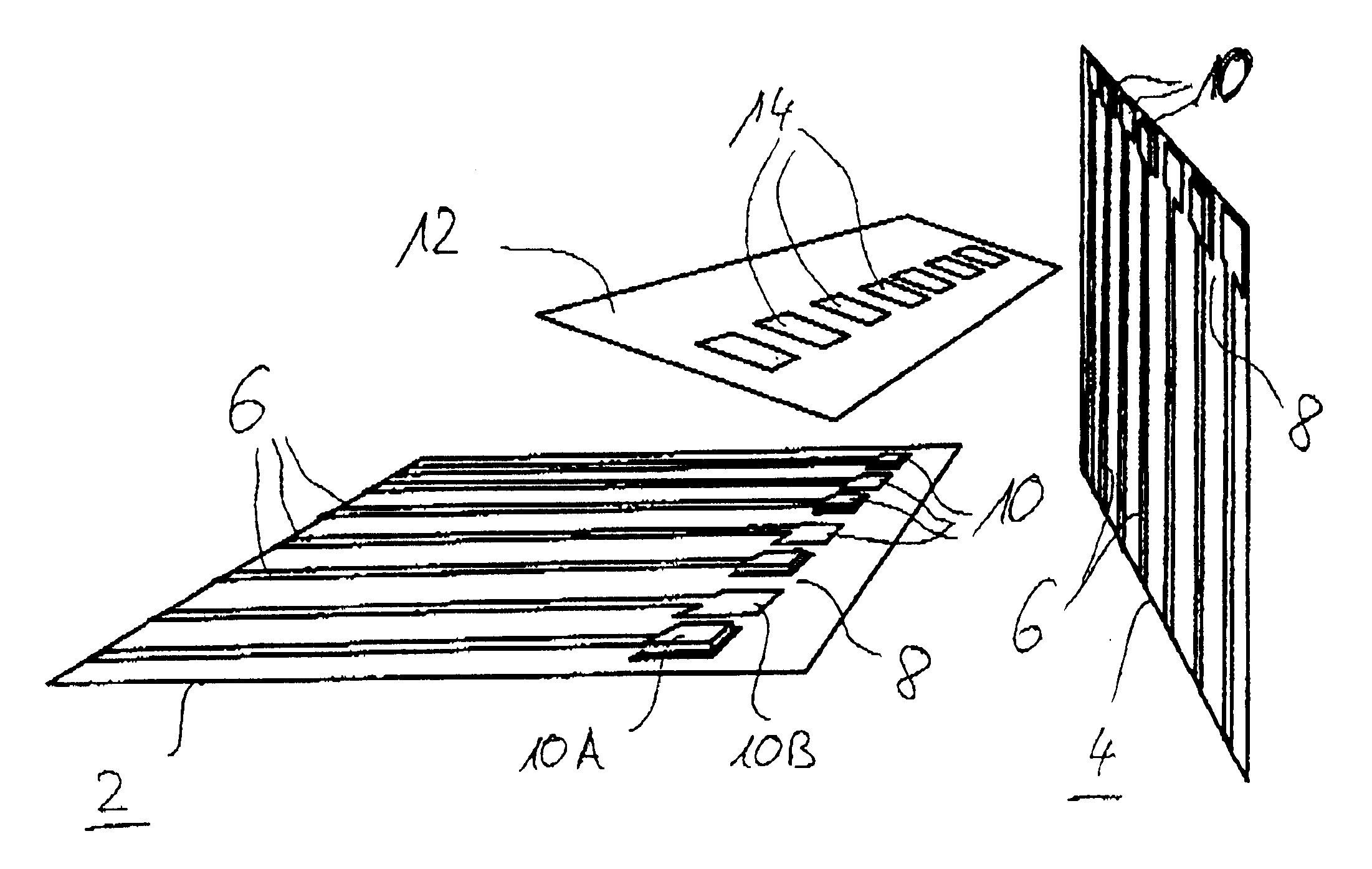

In a printed circuit board pair, each of the printed circuit boards having a contact region with contact elements, a contact-making system includes a first circuit board having three-dimensionally structured contact elements and a second circuit board also having three-dimensionally structured contact elements structured complementarily with respect to the contact elements of the first circuit board for positioning the two boards together. The contact elements of the first board reciprocally electrically contact the contact elements of the second board. The configuration ensures a high positioning accuracy of the two contact regions with respect to one another. A mask having cutouts for contact elements of the two boards can be provided. Such contact element positioning using the conductor track pattern and being independent of a contact-making housing has the advantage that the positioning accuracy is unaffected by tolerances between the conductor track pattern and the contact-making housing.
