Machine for corrugating metal foils
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 6, 2003
Grant Date -
N/A
app pub date -
Oct 4, 2001
filing date -
Oct 4, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

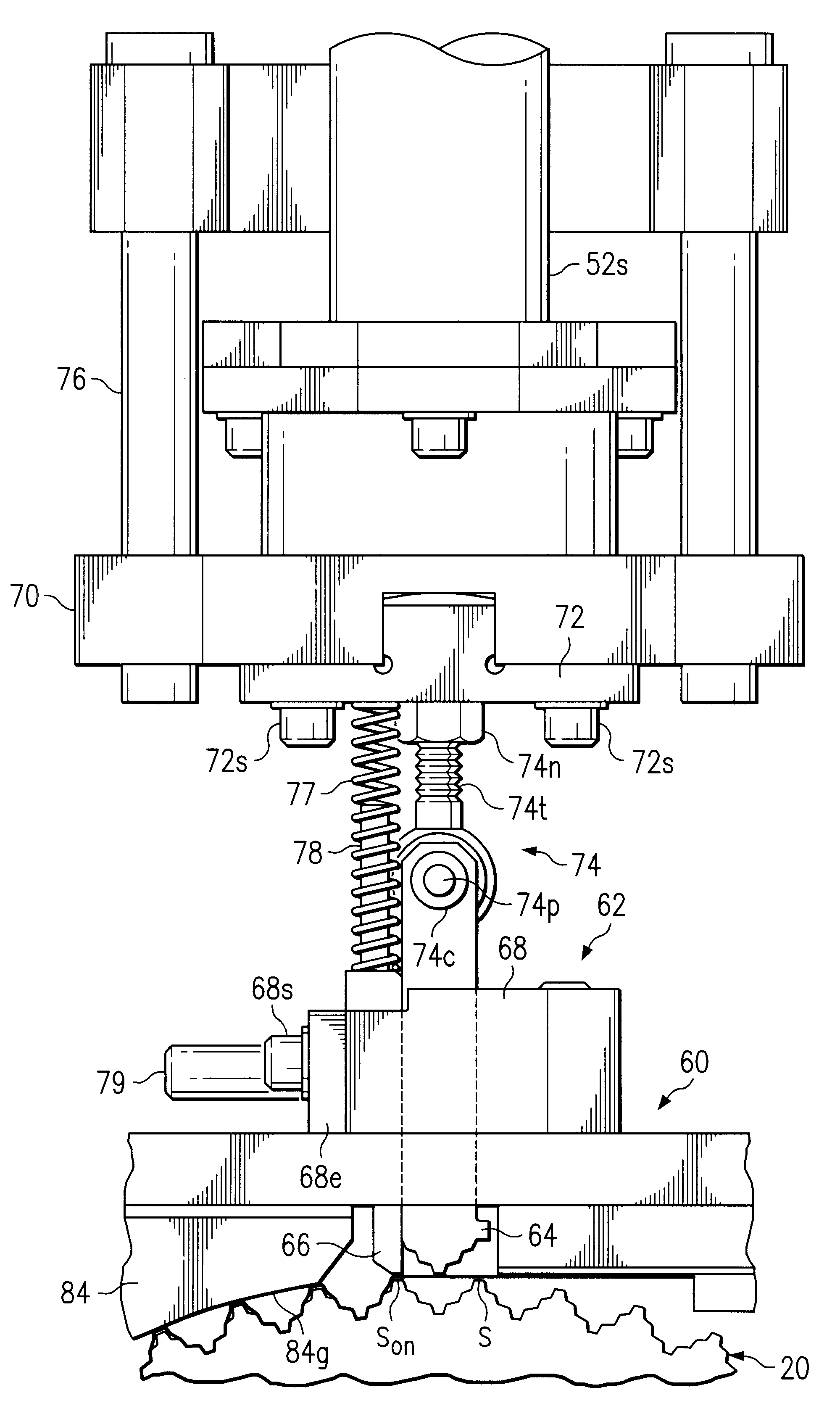

A machine for corrugating a metal foil strip includes a form gear having identical cavities along its perimeter that is driven intermittently by an electronically controlled rotary servomotor to index successive cavities to a forming station. During each dwell of the form gear, a form tooth of a punch unit at the forming station is driven by an electronically-controlled linear servomotor into the cavity to at least partly form a corrugation in the strip. During each operating stroke of the punch unit, a hold finger clamps the immediately outgoing node of the corrugation that just left the forming station against the immediately outgoing tooth of the form gear, thus preventing any part of the outgoing corrugation from being pulled back into the cavity and ensuring that the next corrugation is formed solely from a segment drawn in from the incoming foil.
