Escalator equipment for coins
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 29, 2003
Grant Date -
Jun 21, 2001
app pub date -
Dec 8, 2000
filing date -
Dec 9, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

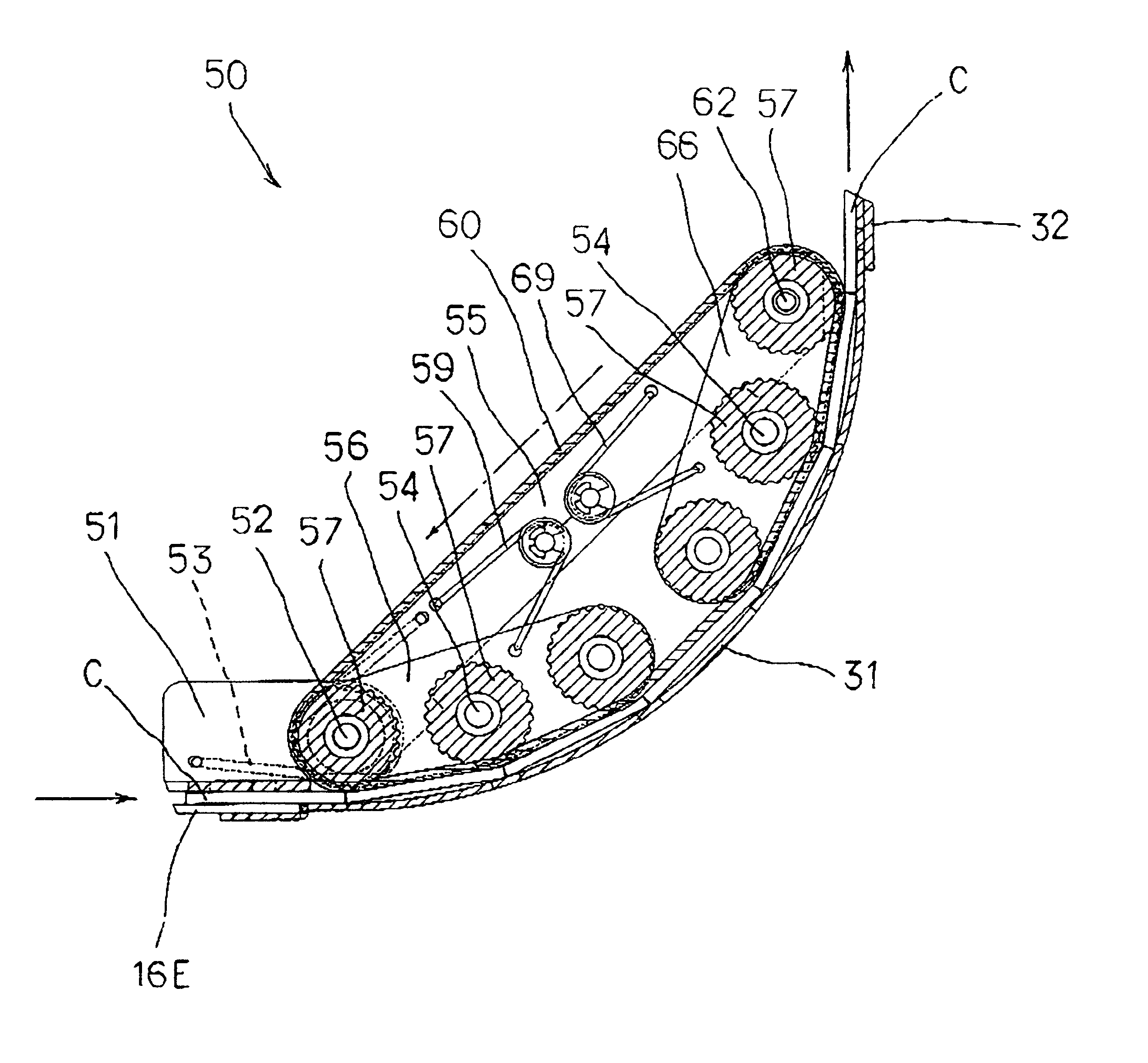

A miniaturizes lifting style coin hopper is provided with a coin escalator device. The lifting style hopper equipment uses a small hopper with improved escalator equipment. The escalator equipment for coins includes a back plate with a curved surface for carrying a plurality of coins which are arranged in a single plane row from bottom to top. A pair of spacers are placed at each side on the upper surface of this back plate, respectively. The escalator equipment for coins has at least a plurality of idlers which are freely rotatably arranged, covering the back plate between the paired spacers. A spring device presses these idlers to the back plate.
First Claim
Other Claims data not available
