Power oscillator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 22, 2003
Grant Date -
May 2, 2002
app pub date -
Sep 12, 2001
filing date -
Sep 12, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

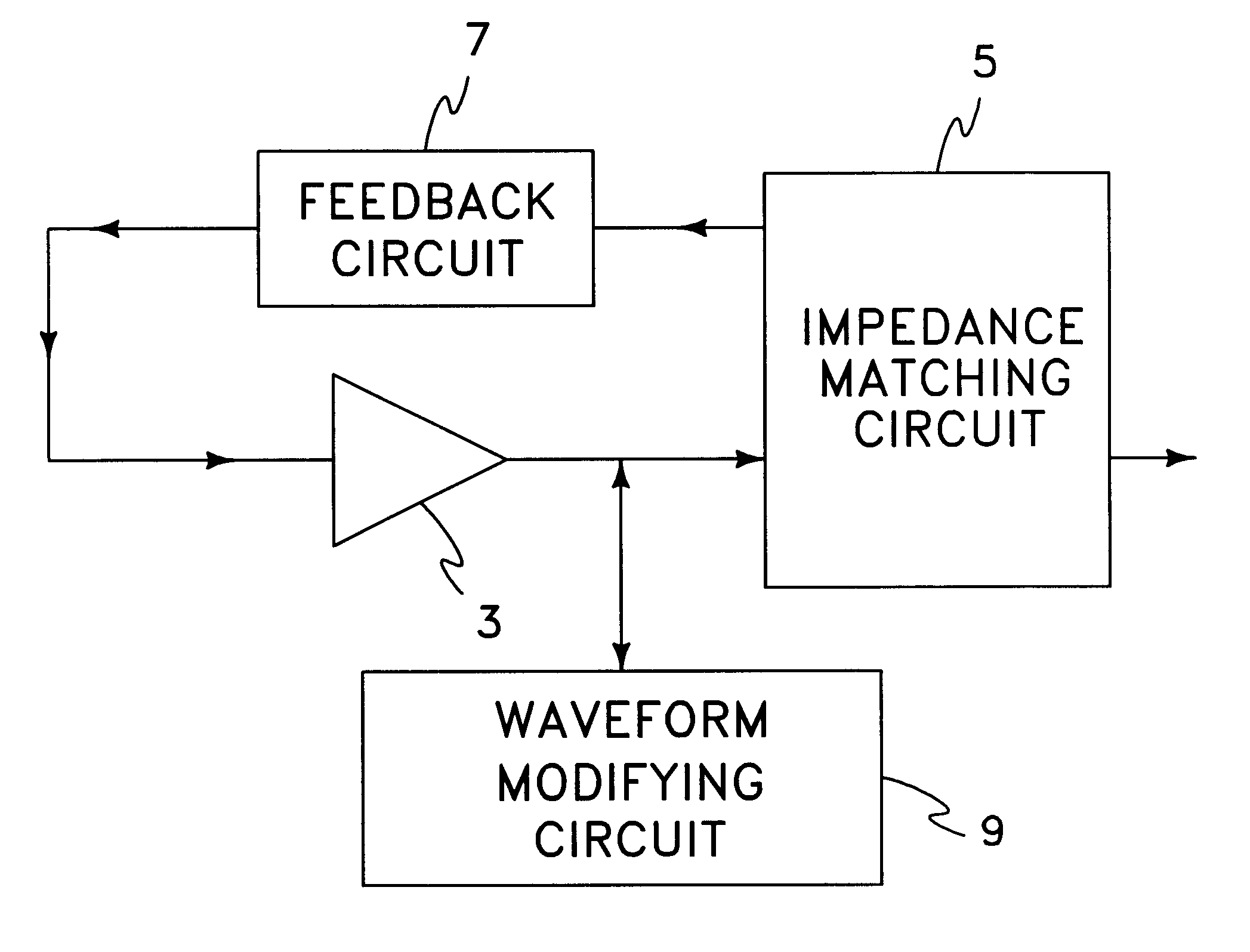

An oscillator includes a solid state active device having an input and an output, a feedback circuit connected from the output of the active device to the input of the active device, the feedback circuit providing suitable positive feedback to initiate and sustain an oscillating condition at a fundamental frequency, and a waveform modifying circuit connected to the output of the active device, wherein the waveform modifying circuit is adapted to modify the waveform on the output in a manner which increases an efficiency of the oscillator. For example, the waveform modifying circuit comprises transmission lines and optionally components which provide a high impedance for odd harmonics of the fundamental frequency. The waveform modifying circuit may further include transmission lines and optionally components which provide a low impedance for even harmonics of the fundamental frequency. The waveform modifying circuit utilize class F amplifier principles to cause the waveform on the output to be relatively more square in shape.
First Claim
Other Claims data not available
