Valve assembly for a pressure flush system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 22, 2003
Grant Date -
Apr 3, 2003
app pub date -
Sep 28, 2001
filing date -
Sep 28, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

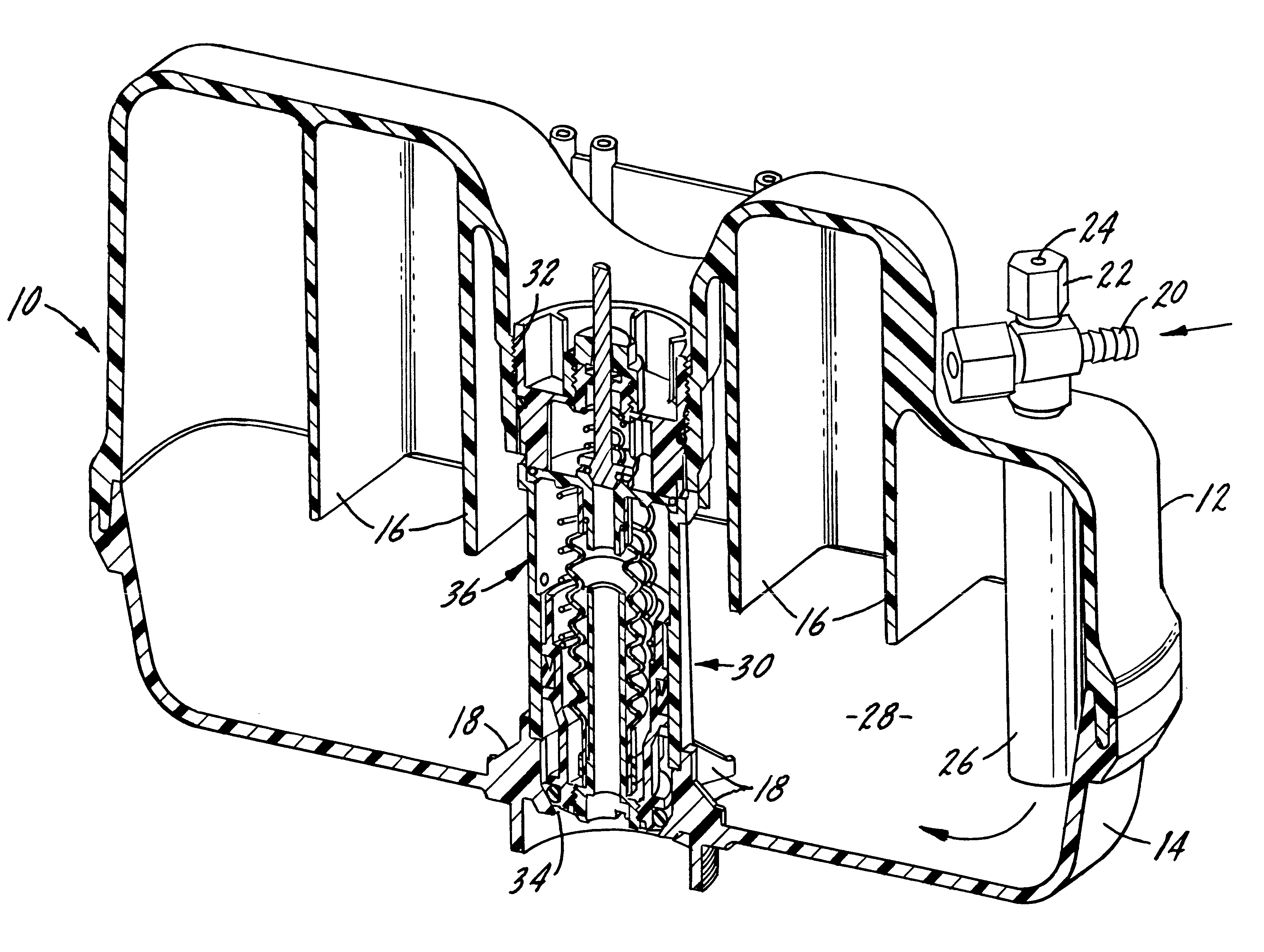

A pressure flush system for use within a toilet tank includes a pressure flush tank having an inlet port and a discharge port, an air inlet, and a valve assembly. The valve assembly includes a generally cylindrical housing, a water inlet in fluid communication with the pressure flush tank, a water outlet in fluid communication with the discharge port, a normally closed valve which allows fluid communication between the water inlet and water outlet when the valve is opened, a piston axially spaced from the valve, and a flexible tube positioned within the housing which is carried between the valve and the piston and in fluid communication therebetween. Relative to the valve, the piston is movable into and out sealing engagement with the discharge port to permit the discharge of water under pressure contained within the pressure flush tank. The flexible tube is movable in response to movement of the piston.
First Claim
Other Claims data not available
