Carburetor valve rotational setting retainer assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 1, 2003
Issued Date -
N/A
app pub date -
Feb 1, 2002
filing date -
Mar 29, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

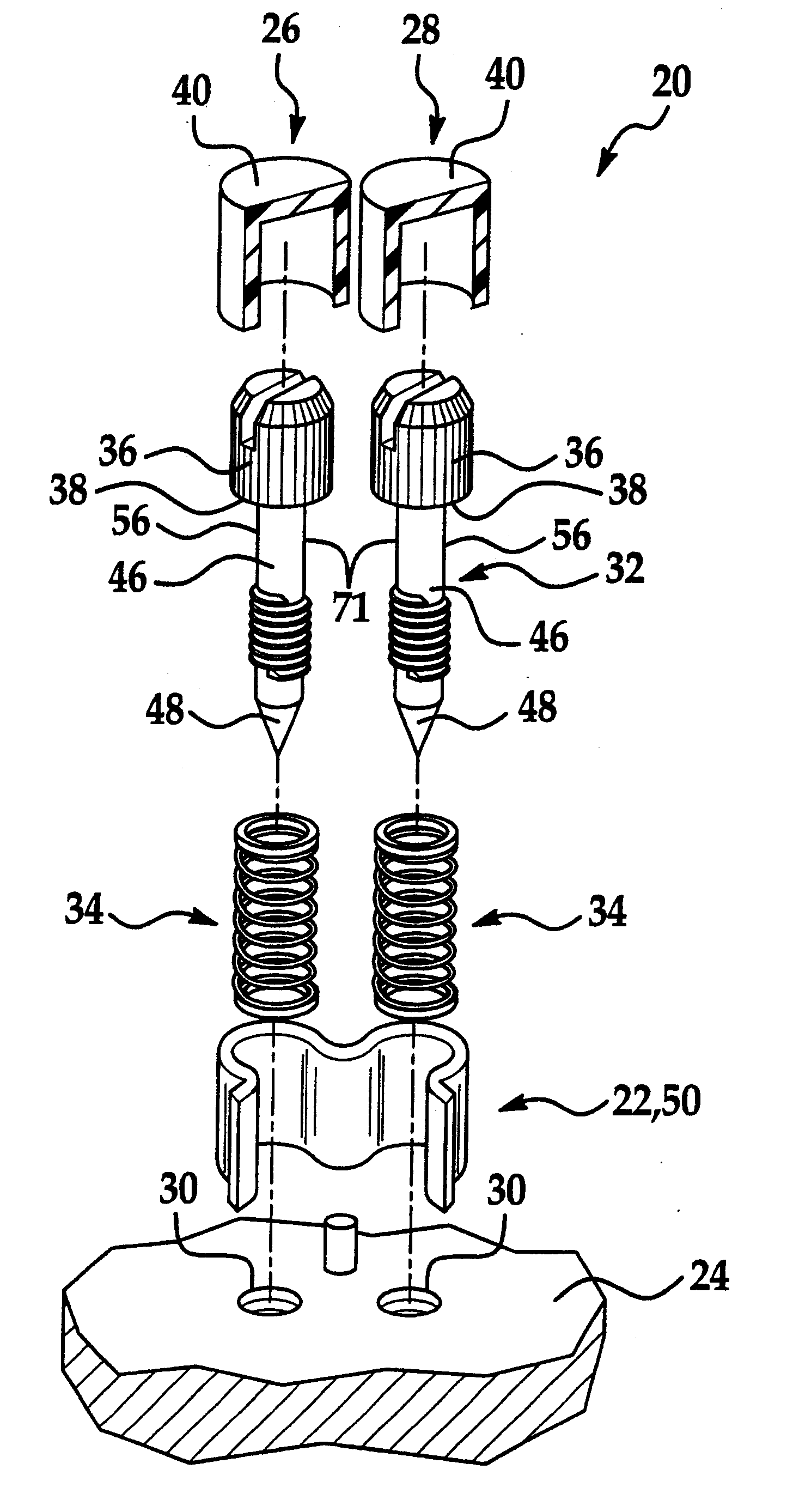

A fuel needle valve assembly of a carburetor has a retainer which yieldingly restrains the rotational fuel flow setting capability of the needle valve. The retainer engages a shank of the needle valve and a parallel shaft, both of which project from the carburetor body. The retainer exerts a force which laterally displaces the projecting shank with respect to the shaft. The retainer has sufficient strength to ensure the factory set rotational setting of the fuel needle valve does not alter when a limiter cap is press fitted to a distal head of the needle. Furthermore, wherein the shaft is also a shank of a second needle valve, the same retainer laterally displaces the projecting shanks of both needle valves.
First Claim
Other Claims data not available
