Pulper for a fiber stock preparation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 21, 2003
Grant Date -
Nov 14, 2002
app pub date -
May 11, 2001
filing date -
May 11, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

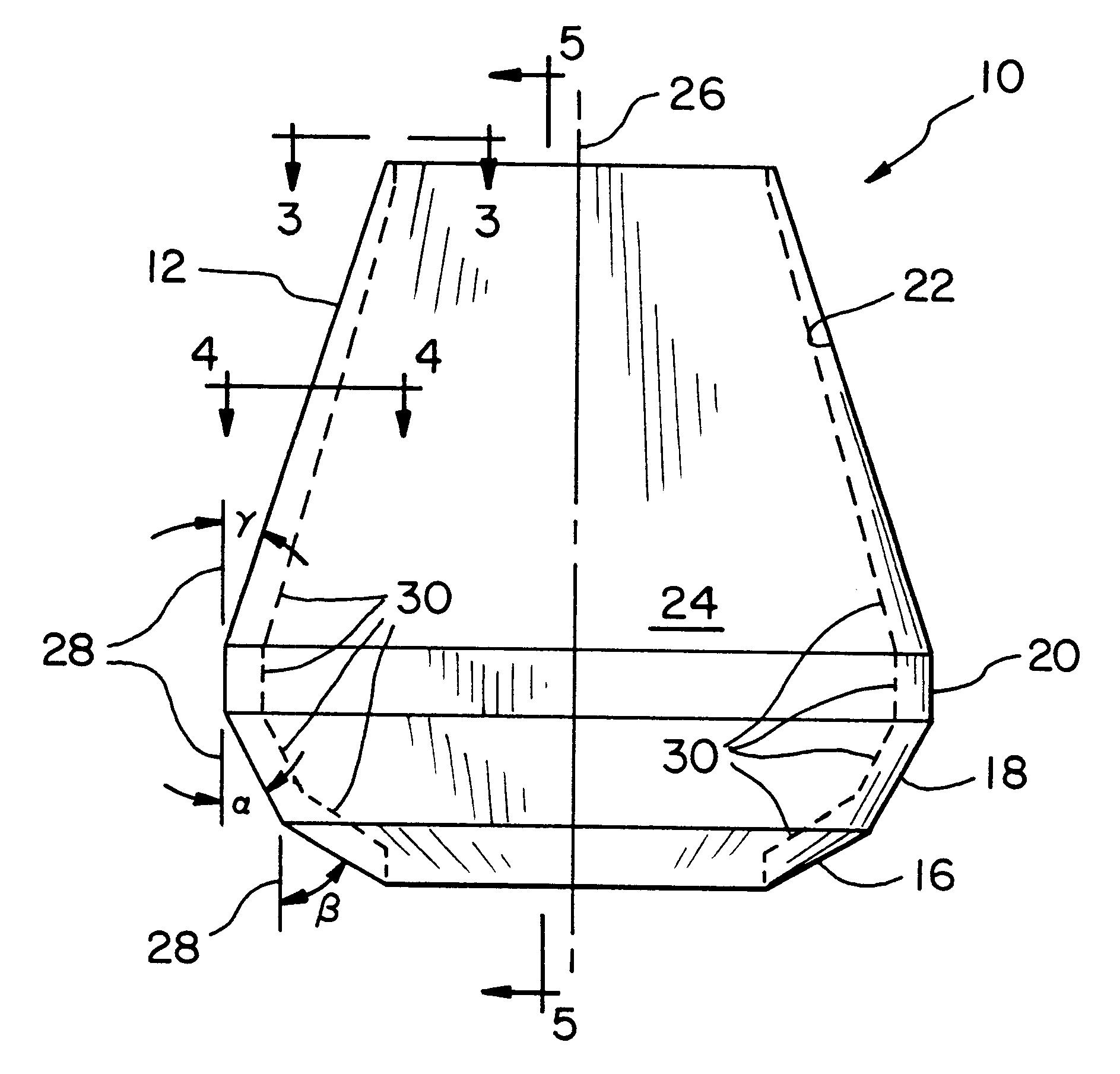

A pulper for pulping a fiber source includes a tank and a rotor. The tank has a plurality of annular-shaped inner walls defining a chamber. The plurality of walls include a first wall, second wall, third wall and forth wall which are sequentially vertically adjoining relative to each other. Each of the walls are disposed at an angle relative to a vertical reference. The first wall is disposed at an angle of between 45 and 70.degree. relative to the vertical reference. The second wall is disposed at an angle of between 20 and 45.degree. relative to the vertical reference. The third wall is disposed generally parallel to the vertical reference. The forth wall is disposed at an angle of between 10 and 30.degree. relative to the vertical reference. The tank further includes two baffles within the chamber which inhibit rotational movement of the fiber source within the chamber.
First Claim
Other Claims data not available
