Bill arranger
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 14, 2003
Grant Date -
May 16, 2002
app pub date -
Mar 9, 2000
filing date -
Mar 10, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

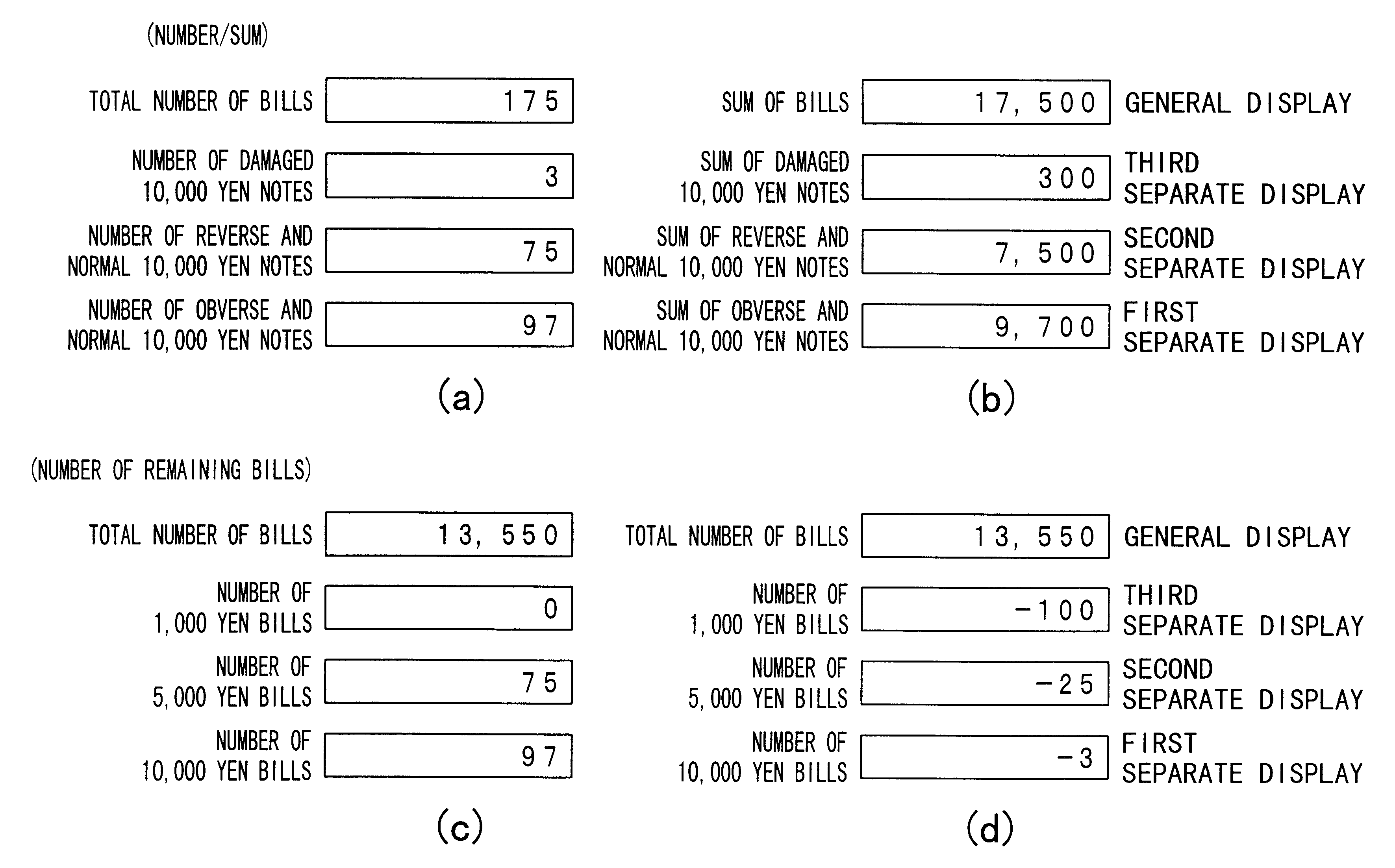

The bill arranger of the present invention comprises: a loader for loading bills and feeding the bills one by one; a conveyer for conveying the bills fed from said loader; a discriminating device for discriminating the bills conveyed by said conveyer; a plurality of stackers for stacking the bills, which are conveyed by said conveyer, so that the bills can be removed; an operating device for selecting one of sorting process modes which defines a method of sorting the bills loaded in said loader; a controller for delivering the bills, which are fed from said loader, to one of said stackers, by said conveyer, based on the results of the discrimination by said discriminating device, according to the sorting process mode selected by said operating device; and displays, separately provided for said respective stackers, which can change displayed contents.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- G06F Class
- 0.79 % this patent is cited more than
- 22 Age
