Pedal box for vehicle etc
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 31, 2002
Grant Date -
Oct 4, 2001
app pub date -
Dec 21, 2000
filing date -
Dec 24, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

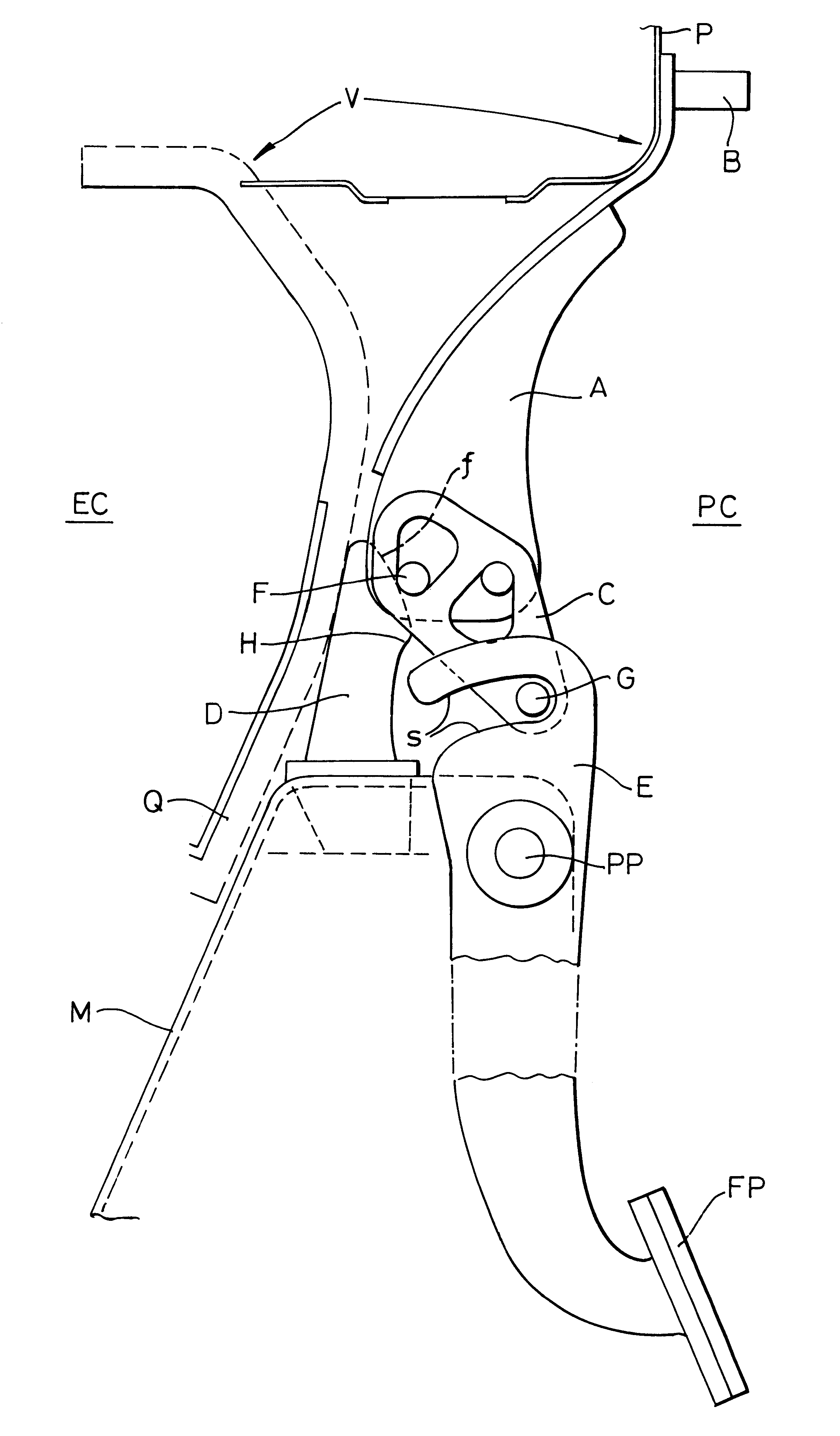

A pedal box for a vehicle (V), comprises a pedal (E) pivotally mounted intermediate its end on a pedal pin (PP) carried by the pedal box, so as to have, beyond each side of the pedal pivot (PP), a lower pedal part carrying a footpad (FP), and an upper pedal part; an abutment surface (S) provided in or on the upper pedal part and so located with respect to the pedal pivot axis (PP) that the abutment surface (S) is beyond a top dead center position of the pedal pivot (PP) at the driver/passenger compartment (PC) side; and an activation device (C, D) adapted, in use, to be secured between a portion (Q) of the vehicle (V) designed to deform upon frontal impact, and a portion (P) of the vehicle (V) designed for minimal deformation upon frontal impact and, upon activation, to engage the abutment surface (S) such that the upper pedal part is rotated towards the driver/passenger compartment (PC), and the lower pedal part is rotated away from the driver/passenger compartment (PC).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- B60K Class
- 55.29 % this patent is cited more than
- 23 Age
