Fastening device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 24, 2002
Grant Date -
N/A
app pub date -
Nov 22, 2000
filing date -
Nov 22, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

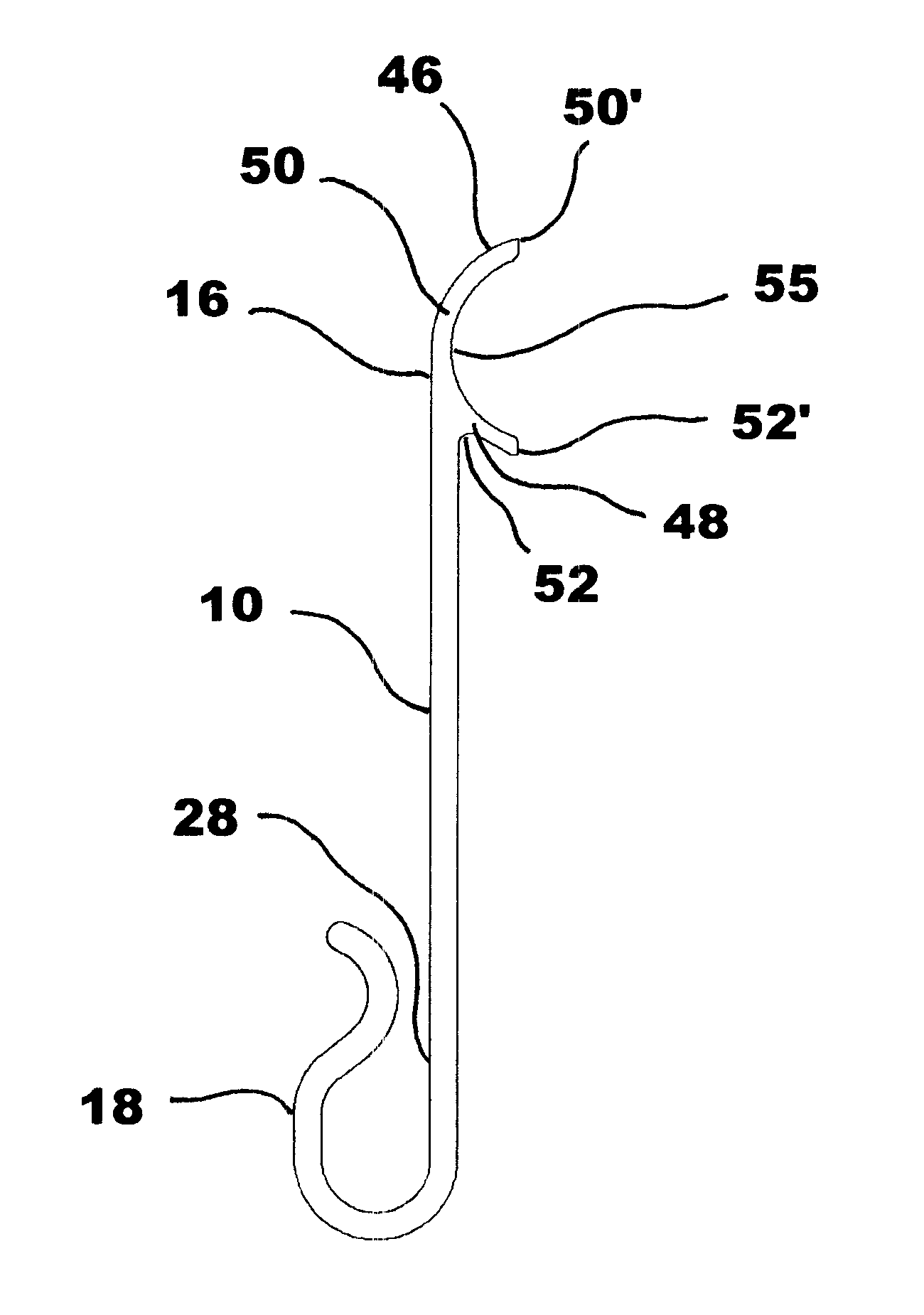

A fastening device for supporting various objects on a brick wall, block wall, tile wall or a wall having grooves therein, wherein the fastening device may comprise a clip member and a mounting member, wherein the clip member has a first arm portion, a second arm portion, an intermediate portion and a biasing mechanism, and wherein the mounting member extends downward from the clip member and may take the form of an S-shaped hook member. Alternatively, the mounting member may include a cam member. The fastening device may also be provided with a plurality of tangs on the exterior of the clip member and a living hinge that connects the first and second arm portions of the clip member. To accommodate different sizes of mortar joints the clip member may include a notch that allows for the alteration of the clip member to fit within different sizes of mortar joints. Another embodiment may include a second mounting member.
First Claim
Other Claims data not available
