Cooling apparatus for power semiconductors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 10, 2002
Grant Date -
May 30, 2002
app pub date -
Nov 20, 2001
filing date -
Nov 24, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

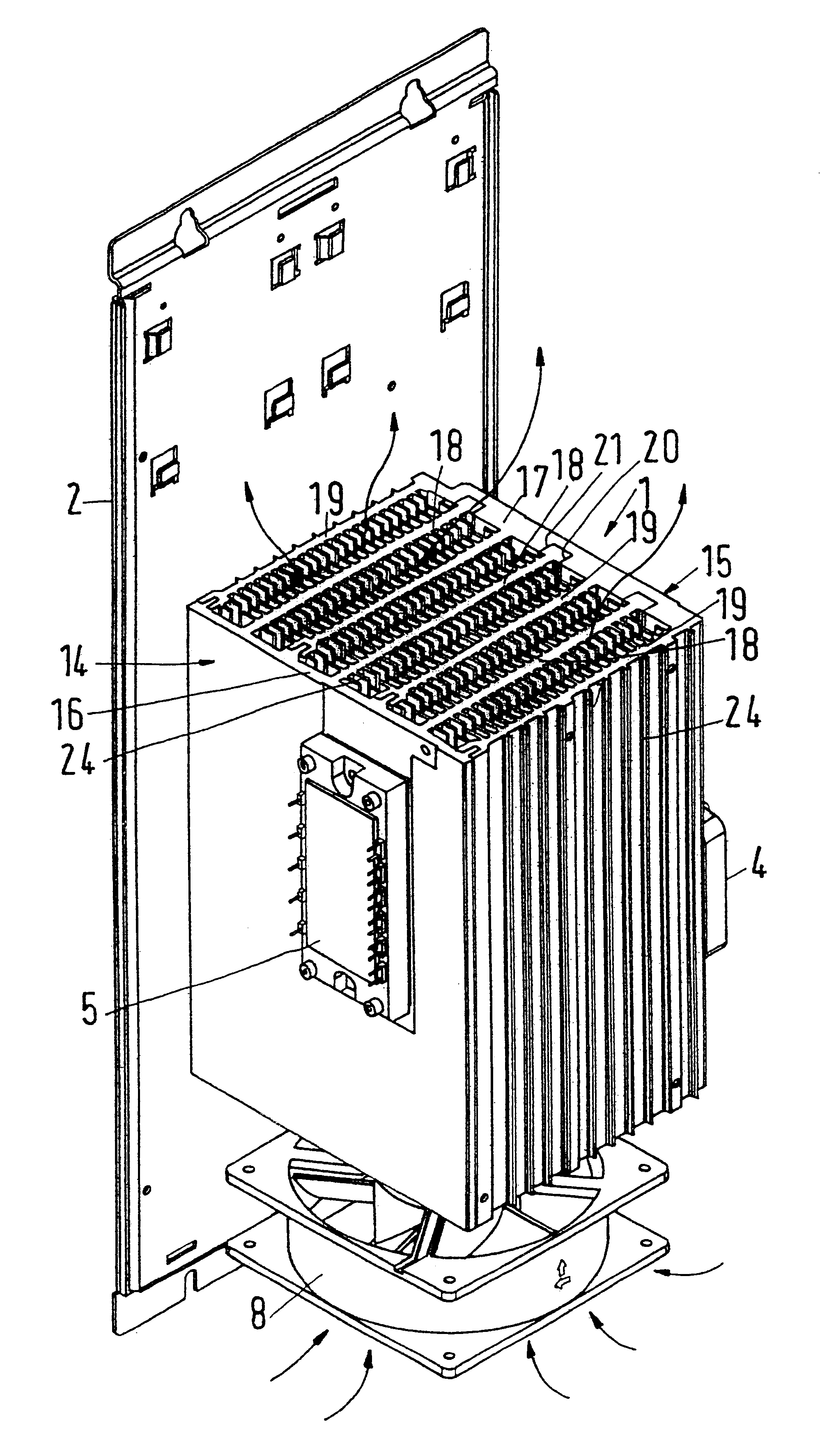

A cooling apparatus for power semiconductors, which apparatus is essentially box-shaped, has two extruded cooling sections (14, 15) joined to each other. One of the cooling profiles (14) forms a first heat-conducting side wall (16), and the other cooling profile (15) forms a second heat-conducting side wall (17), opposite the first side wall (16), of the cooling apparatus (1). The side walls (16, 17) have cooling partitions (18, 19) formed on the inner sides of the latter, which cooling partitions bound cooling channels through which a cooling fluid can be conducted. Power semiconductors (4, 5) are to be attached to the outer sides of the side walls (16, 17) in a heat-conducting manner. In order to achieve the largest possible cooling surface of the cooling apparatus, the cooling partitions (18) formed on the first side wall (16) project between the cooling partitions (19) formed on the second side wall (17).
