Sulky for outdoor power equipment unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 26, 2002
Grant Date -
Nov 21, 2002
app pub date -
May 18, 2001
filing date -
May 18, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

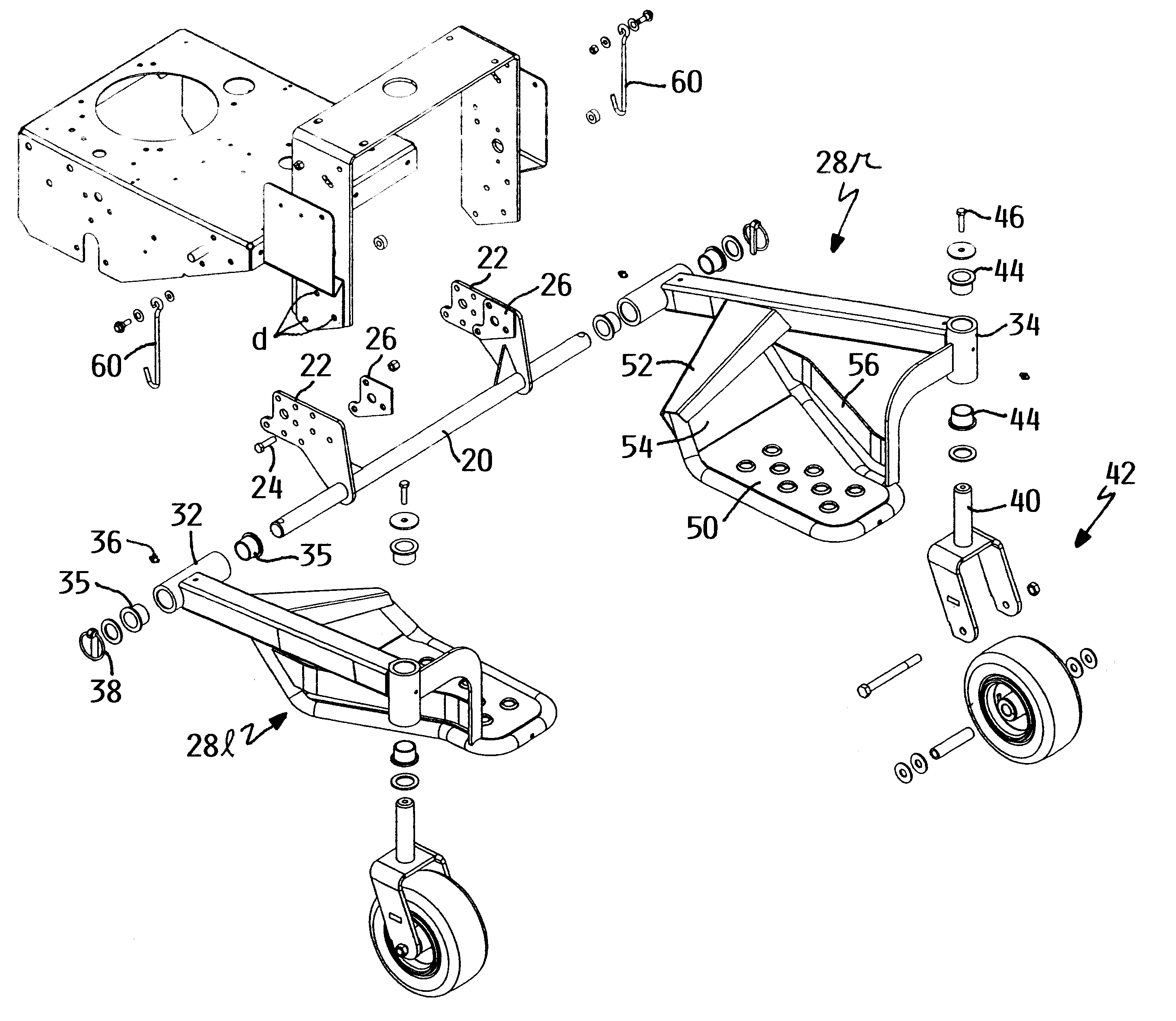

A sulky for a self propelled, outdoor power equipment unit, such as a wide area mower or WAM, comprises independent left and right foot platforms to support a standing operator. A ground engaging caster wheel is carried on each foot platform to allow the foot platforms to roll over the ground during operation of the mower. The foot platforms are mounted to the mower by an axle with each foot platform being pivotally carried on the axle using a separate pivot hub. Thus, the foot platforms can pitch up and down separately from one another during operation of the mower over uneven terrain. Latches are provided for selectively holding the foot platforms in raised transport positions.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- B62D Class
- 54.53 % this patent is cited more than
- 23 Age
