Spacer with specially fastened springs for fuel assemblies of nuclear reactors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 29, 2002
Issued Date -
N/A
app pub date -
Jul 15, 1999
filing date -
Jan 15, 1997
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

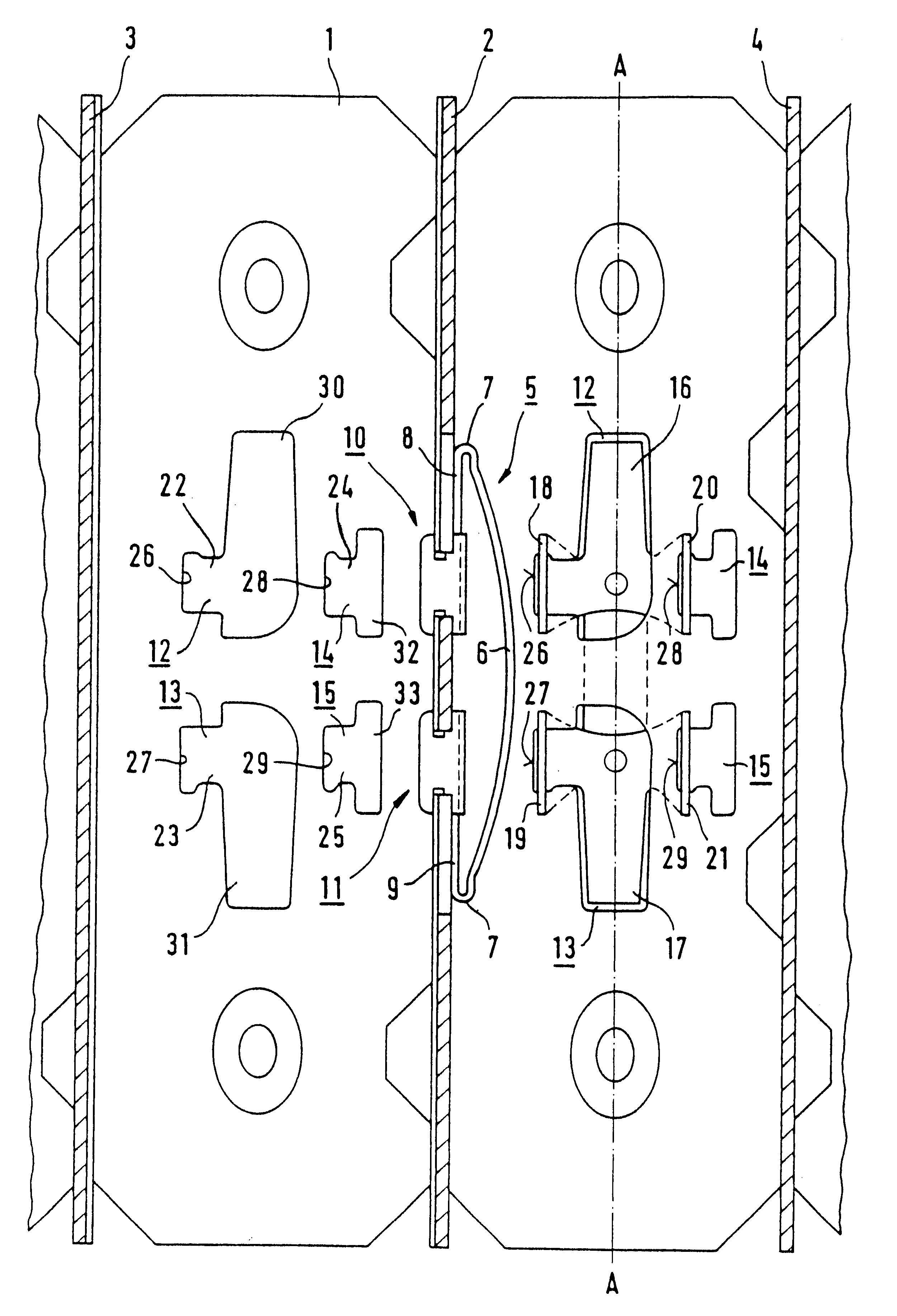

A spacer for a fuel assembly of a nuclear reactor includes an elongated spring which is held in a mesh in such a way that there is structural freedom with respect to a selection of a shape of the spring and that little spring material is required. Two lateral rims at a top end of the spring are bent around a center of a fuel element out of the mesh in such a way that they protrude through an assembly opening in the web into an adjacent mesh. The two rims approximately form-lockingly encompass an edge of the assembly opening through the use of a profiled section. A lower end of the spring is also correspondingly held on the web through the use of profiled sections on its two rims, which are bent outward. Two springs protruding into adjacent meshes can then also be fastened in the same assembly opening.
First Claim
Other Claims data not available
