Method and apparatus for measuring reporting channel state information in a high efficiency, high performance communications system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 29, 2002
Issued Date -
N/A
app pub date -
Mar 30, 2000
filing date -
Mar 22, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

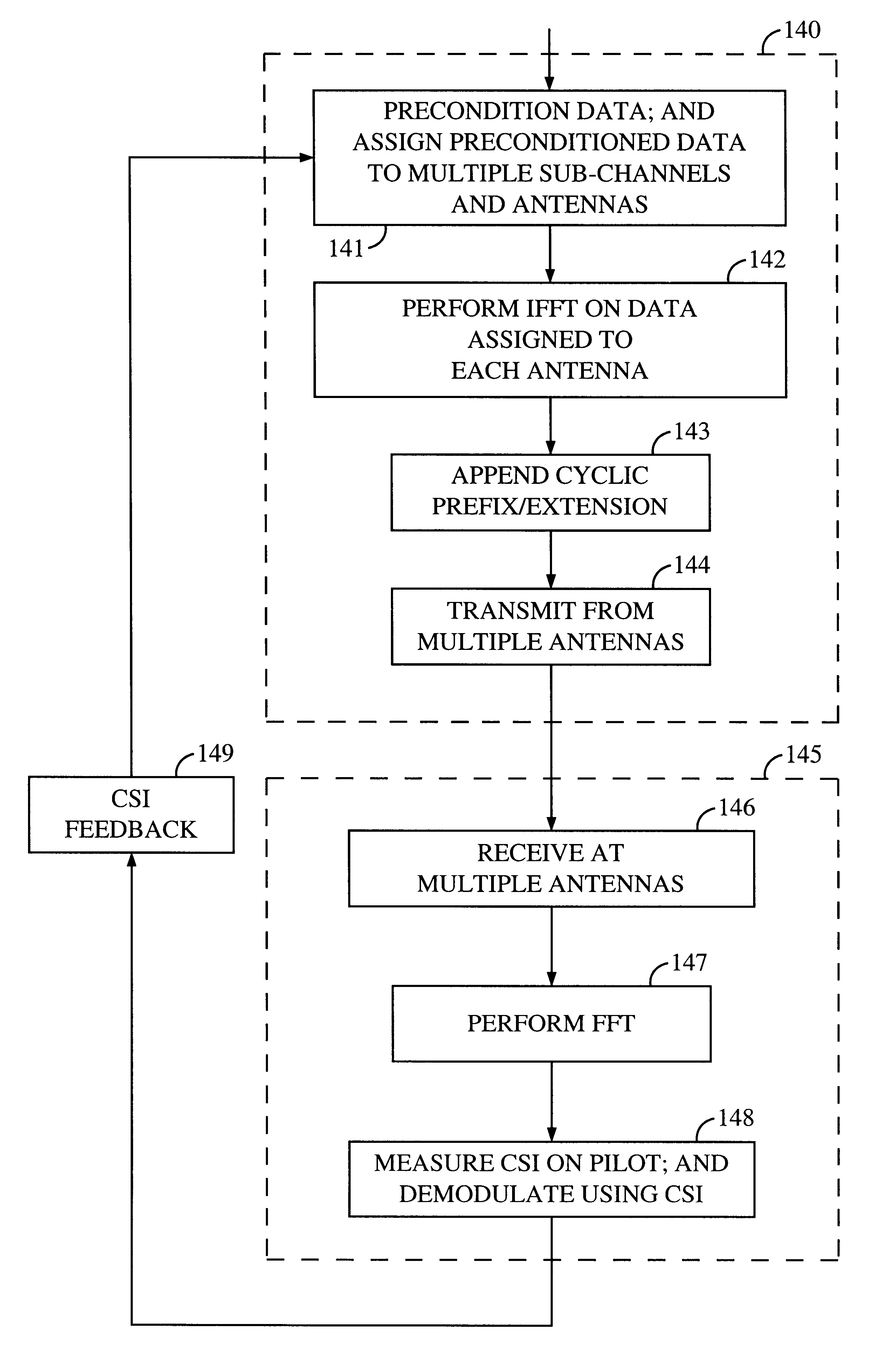

Channel state information (CSI) can be used by a communications system to precondition transmissions between transmitter units and receiver units. In one aspect of the invention, disjoint sub-channel sets are assigned to transmit antennas located at a transmitter unit. Pilot symbols are generated and transmitted on a subset of the disjoint sub-channels. Upon receipt of the transmitted pilot symbols, the receiver units determine the CSI for the disjoint sub-channels that carried pilot symbols. These CSI values are reported to the transmitter unit, which will use these CSI values to generate CSI estimates for the disjoint sub-channels that did not carry pilot symbols. The amount of information necessary to report CSI on the reverse link can be further minimized through compression techniques and resource allocation techniques.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 783 Citation Count
- H04B Class
- 95.94 % this patent is cited more than
- 23 Age
