Plastic substrates with improved barrier properties for devices sensitive to water and/or oxygen, such as organic electroluminescent devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 15, 2002
Grant Date -
N/A
app pub date -
Jun 12, 2000
filing date -
Jun 12, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

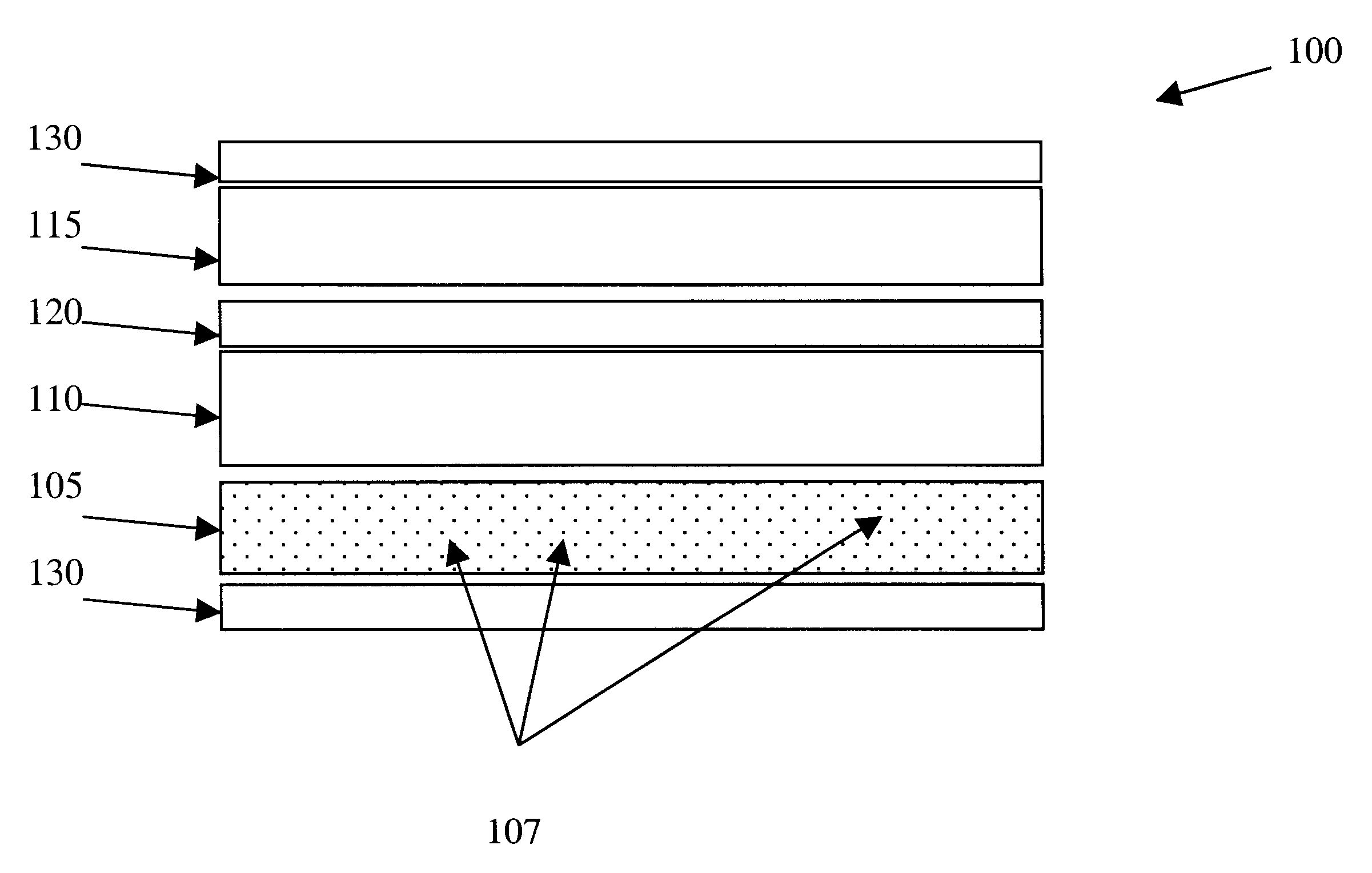

The invention relates to an organic light emitting device comprising a first conductor, a organic light emitting layer overlying the first conductor which emits light of a characteristic wavelength, a second conductor overlying the organic light emitting layer, and a transparent or substantially transparent substrate overlying at least one of the conductors. The substrate comprises dispersed particles of a getter material in an amount effective to protect the organic light emitting layer from being damaged by oxygen and/or water during a desired period of operation. The getter material has a particle size small enough that is smaller than the characteristic wavelength of the emitted light, so as to maintain the transparency or substantial transparency of the substrate. A method for making the device is also disclosed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2000 Application Filing Year
- H01J Class
- 1890 Applications Filed
- 638 Patents Issued To-Date
- 33.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 125 Citation Count
- H01J Class
- 99.31 % this patent is cited more than
- 23 Age
