Concrete void former and cooperating cover
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 8, 2002
Grant Date -
N/A
app pub date -
Apr 7, 2000
filing date -
Apr 8, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

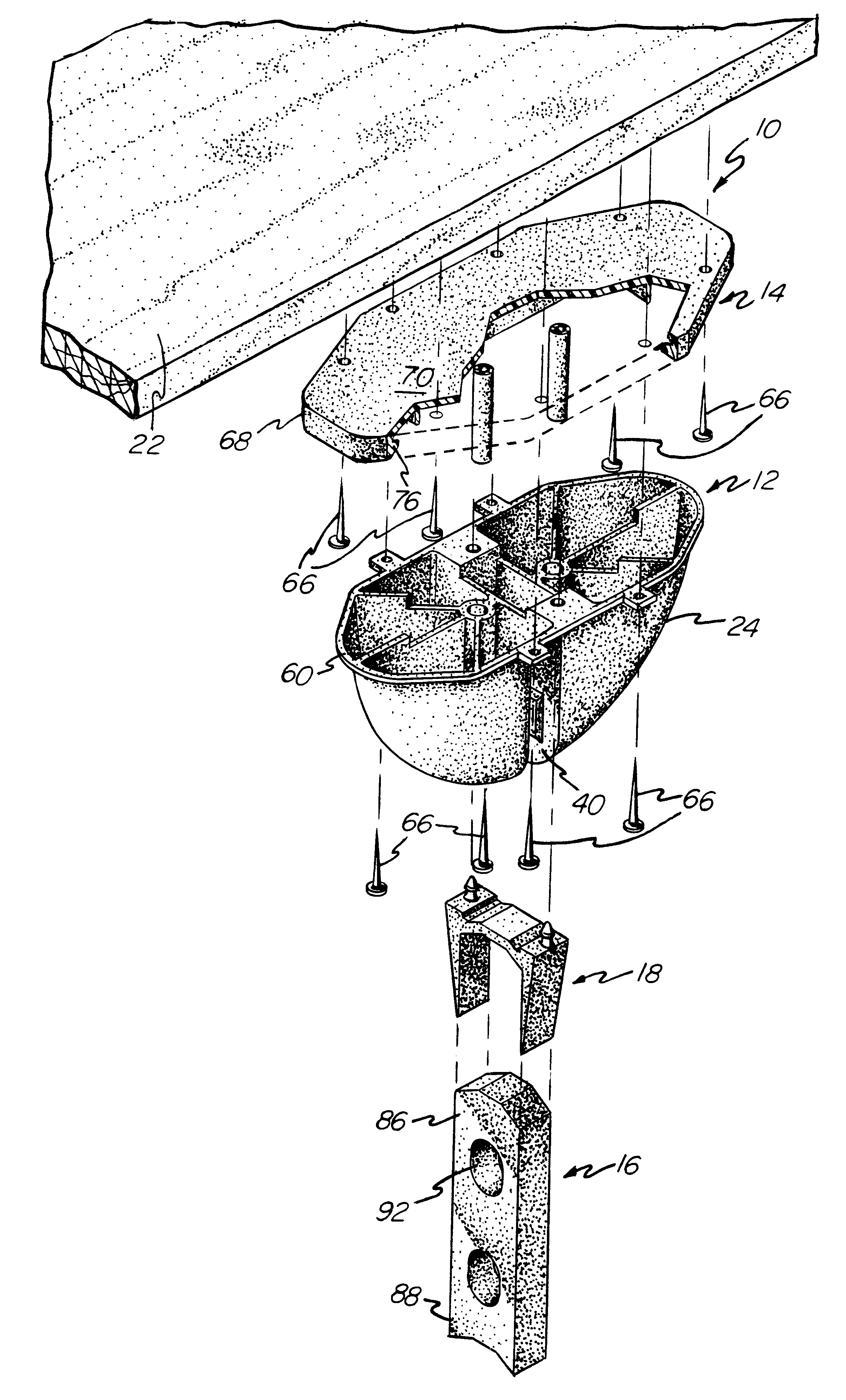

An anchor positioning assembly for use in casting a concrete panel. The anchor positioning assembly includes a void former, a cooperating cover and an anchor. The assembly may further include an adaptor insert for receiving anchors of variable shapes and sizes. The void former includes a body having first and second portions pivotally connected by a pair of hinge webs. A peripheral lip extends outwardly from the periphery of the void former. A cover includes a top plate having a reentrant edge defining a locking groove for releasably engaging the peripheral lip of the void former, thereby providing a seal between the void former and the cover. The cover includes a plurality of mounting apertures to facilitate securing of the cover to concrete formwork.
