Lock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 1, 2002
Grant Date -
N/A
app pub date -
Aug 15, 2000
filing date -
Aug 16, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

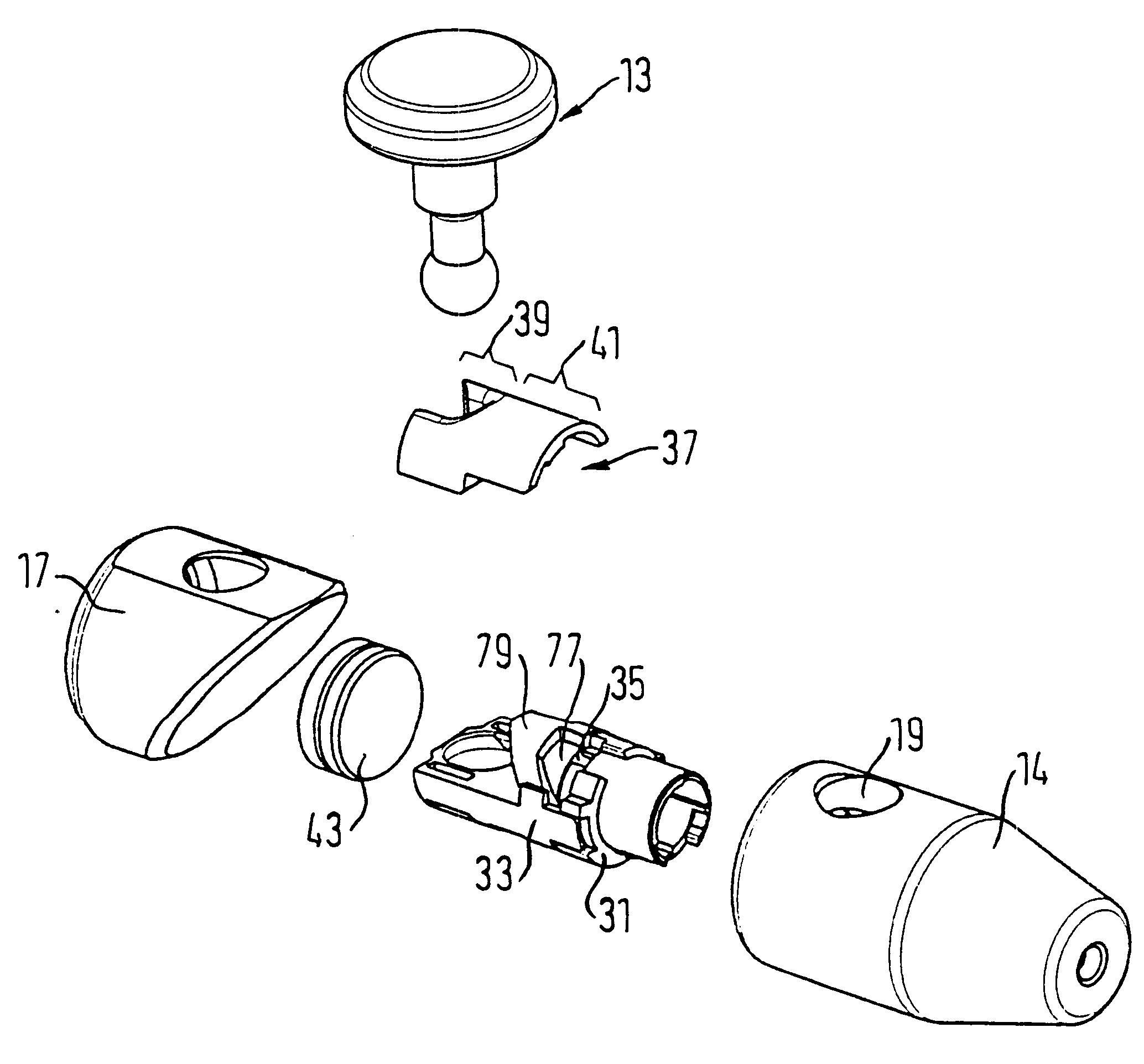

A lock, in particular a brake disk lock for motorcycles, comprising a lock housing and a bolt lockable thereto; with the bolt having a stop member, a bolt head and a bolt neck arranged therebetween, and with the lock housing having a receiving region to receive the bolt head of the bolt, a lock cylinder and a latch movable by a rotary actuation of the lock cylinder to lock or unlock the bolt head inserted into the receiving region. The lock housing further has at least one conversion element, by means of which a rotary actuation of the lock cylinder can be converted into an axial locking or unlocking movement of the latch.
First Claim
Other Claims data not available
