Method and device for production of components for microfabrication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 17, 2002
Issued Date -
N/A
app pub date -
Sep 29, 2000
filing date -
Nov 13, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

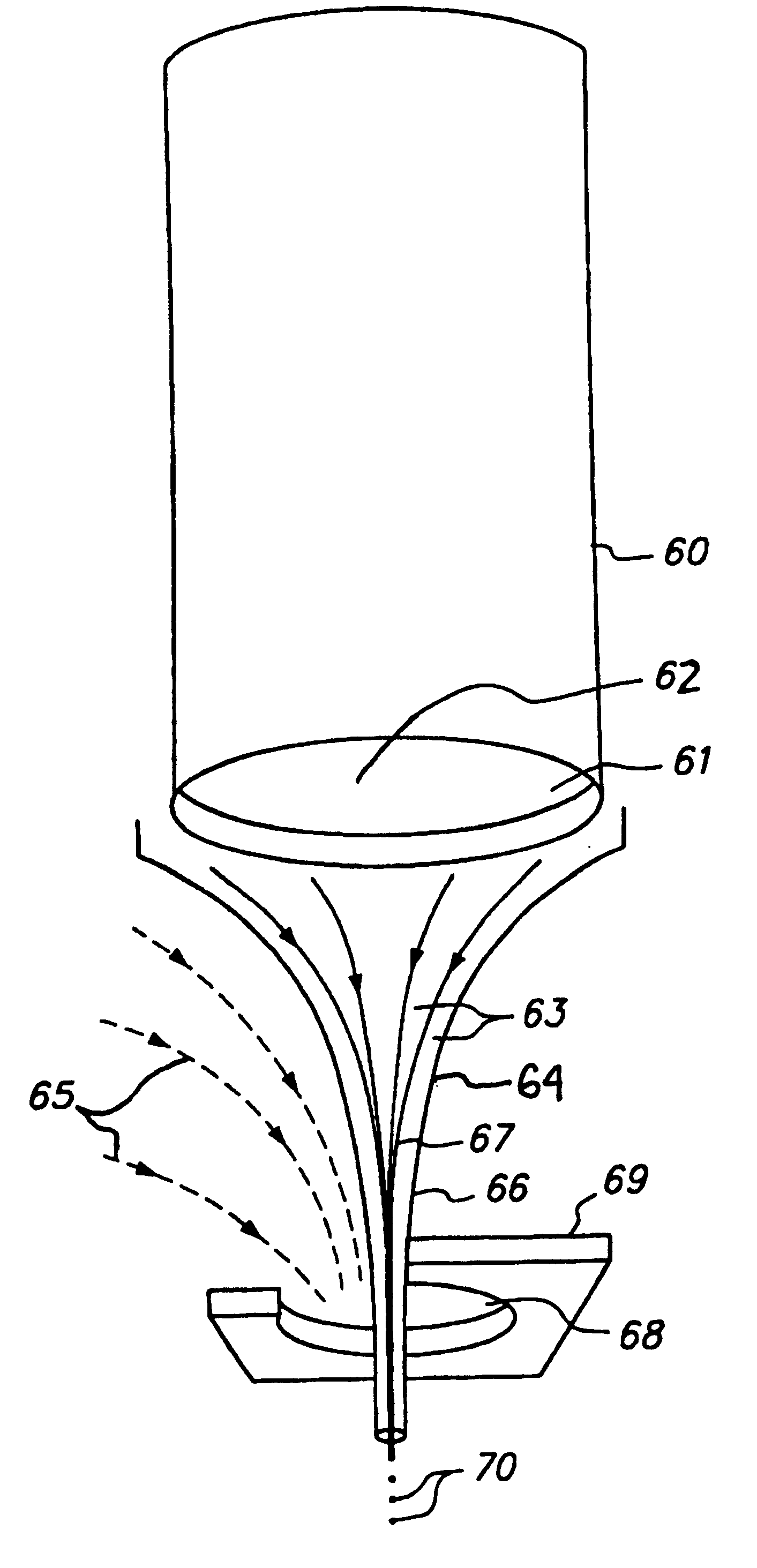

Atomized particles within a desired size range (e.g., 1 micron to about 5 microns) are produced from two immiscible fluids, a first fluid source containing the formulation to be atomized, and a second fluid source which is contained in a pressure chamber surrounding at least the area where the first liquid is to be provided. The invention provides methods for: the production of templates for microfabrication, such as particles that serve as templates for self-assembly of monolayers; the creation of small particles to serve as building blocks for the microassembly of objects; and the use of an atomizate to etch configurations and/or patterns onto the surface of an object by removing a selected portion of the surface.
First Claim
Other Claims data not available
