Electronic control device for optional controlling of different types and operating modes of internal combustion engines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2002
Grant Date -
Feb 21, 2002
app pub date -
Jun 26, 2001
filing date -
Jun 28, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

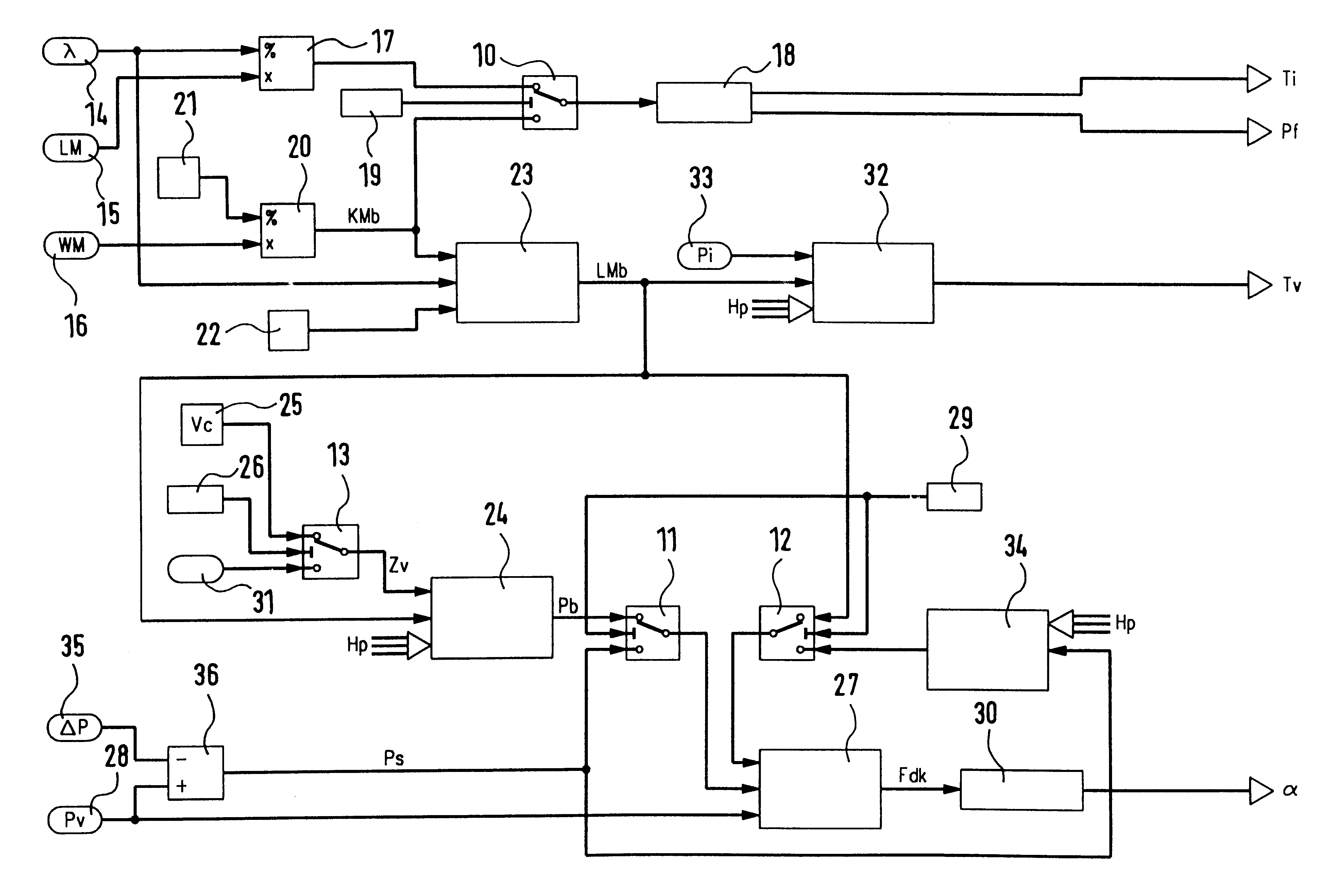

An electronic control device for the optional control of various types and operating modes of internal combustion engines includes a calculation device configured to calculate the respectively required manipulated quantities, including at least the manipulated variable (Ti) for the predetermination of the fuel quantity to be injected and the manipulated variable (.alpha.) for the predetermination of the throttle valve position of the throttle valve in the intake pipe, dependent on respectively required input parameters, including at least the desired quantity of heat (WM). A switchover device is configured to allocate, dependent on the operating mode, the respectively required input parameters and/or quantities derived therefrom as input quantities for the respectively required calculation device. A single type of control device may be manufactured, in large piece counts and with simplified warehousing, for variable possibilities of application. The adaptation to the respective type of engine or operating mode may occur through simple adaptation with the aid of a switchover device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | C2 | DE10031552 | Jun 28, 2000 |
International Classification(s)
- 2001 Application Filing Year
- F02D Class
- 447 Applications Filed
- 186 Patents Issued To-Date
- 41.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02D Class
- 3.19 % this patent is cited more than
- 23 Age
