Buoyancy system with buoyancy module seal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 20, 2002
Grant Date -
N/A
app pub date -
May 22, 2000
filing date -
May 22, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

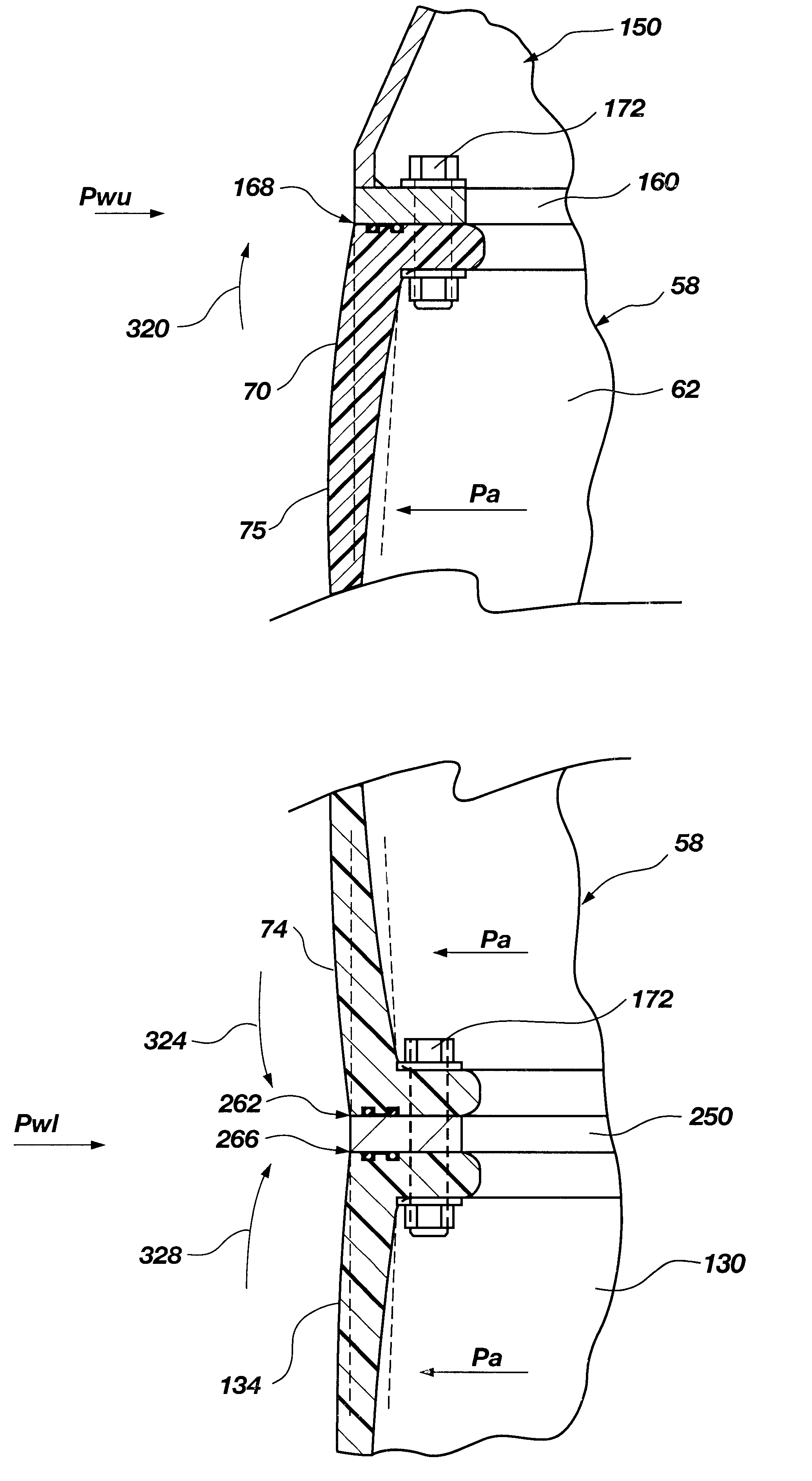

A buoyancy system for a deep water floating platform includes at least one buoyancy module coupled to the a riser. The module may be coupled to a ring structure of an end cap coupled to the riser, or two modules may be coupled to a ring structure to couple them together. The modules have an interior flange extending into the interior cavity and abutting the ring structure. Fasteners couple the interior flange of the module to the ring structure to form an interior attachment. A seal may be formed between the flange of the buoyancy module and the ring structure, and may include a seal member disposed in a groove. A test port extends to the groove to allow testing of the seal. The module may include a material and may have a thickness that together allow a wall of the buoyancy module to expand outwardly under an internal pressure and force the flange against the ring structure to enhance sealing between the flange and ring structure.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- F16L Class
- 55.59 % this patent is cited more than
- 23 Age
