Method for monitoring a rotational angle sensor on an electrical machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 30, 2002
Grant Date -
N/A
app pub date -
Jun 14, 2000
filing date -
Jun 18, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

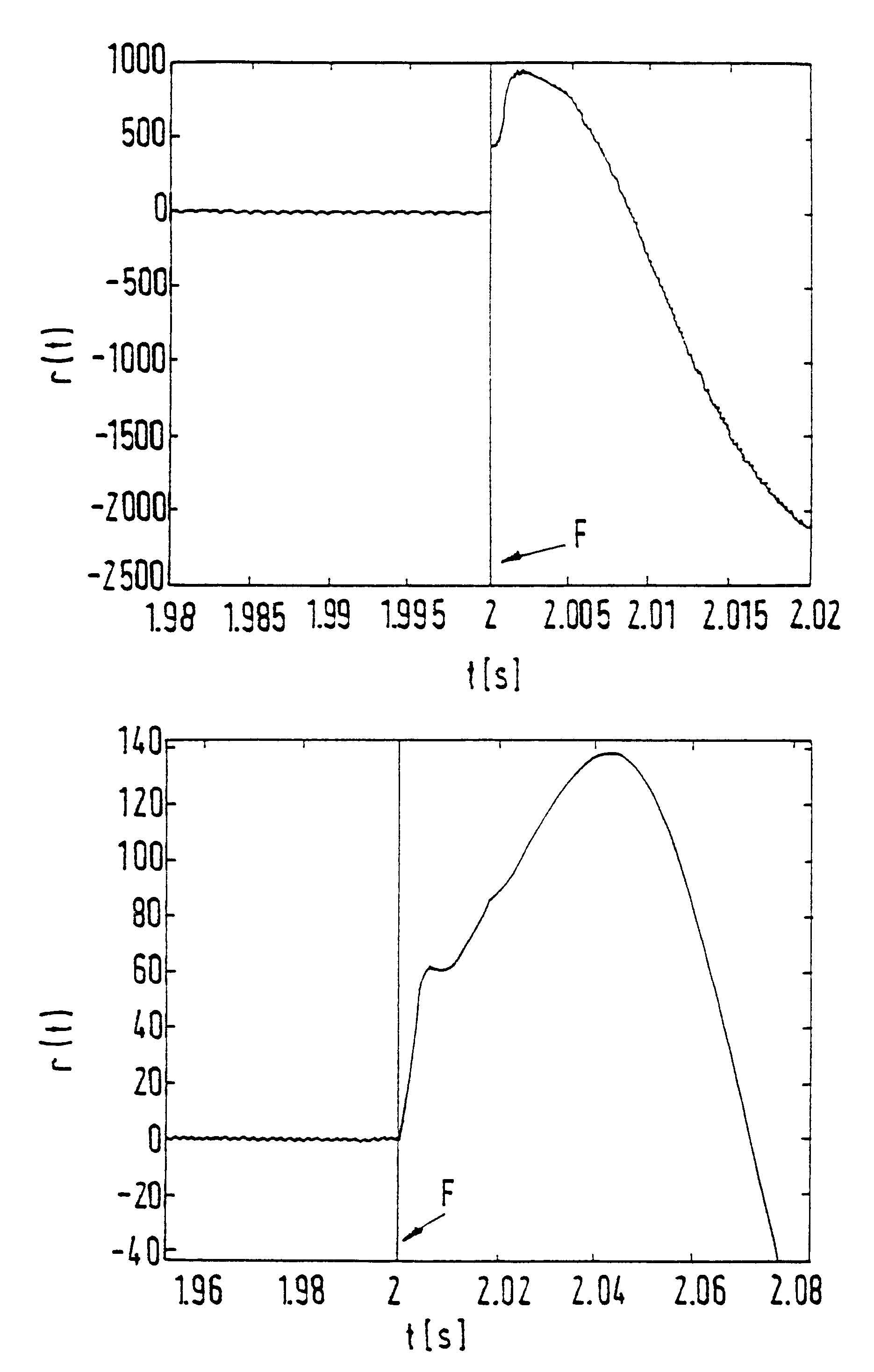

A method for monitoring a rotational angle sensor on an electrical machine. It is desired to provide a method that enables fault detection at both high speeds and low speeds of the rotor. The electrical power of the machine is measured and a power value is estimated using the output signal of the rotational angle sensor, a residual being formed from the measured power and the estimated power and the time curve of the residual being monitored.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 75 Citation Count
- G01R Class
- 96.74 % this patent is cited more than
- 23 Age
