Lowerator having an actuator capable of combined latch actuation and carrier movement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 16, 2002
Grant Date -
N/A
app pub date -
Sep 28, 1999
filing date -
Feb 19, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

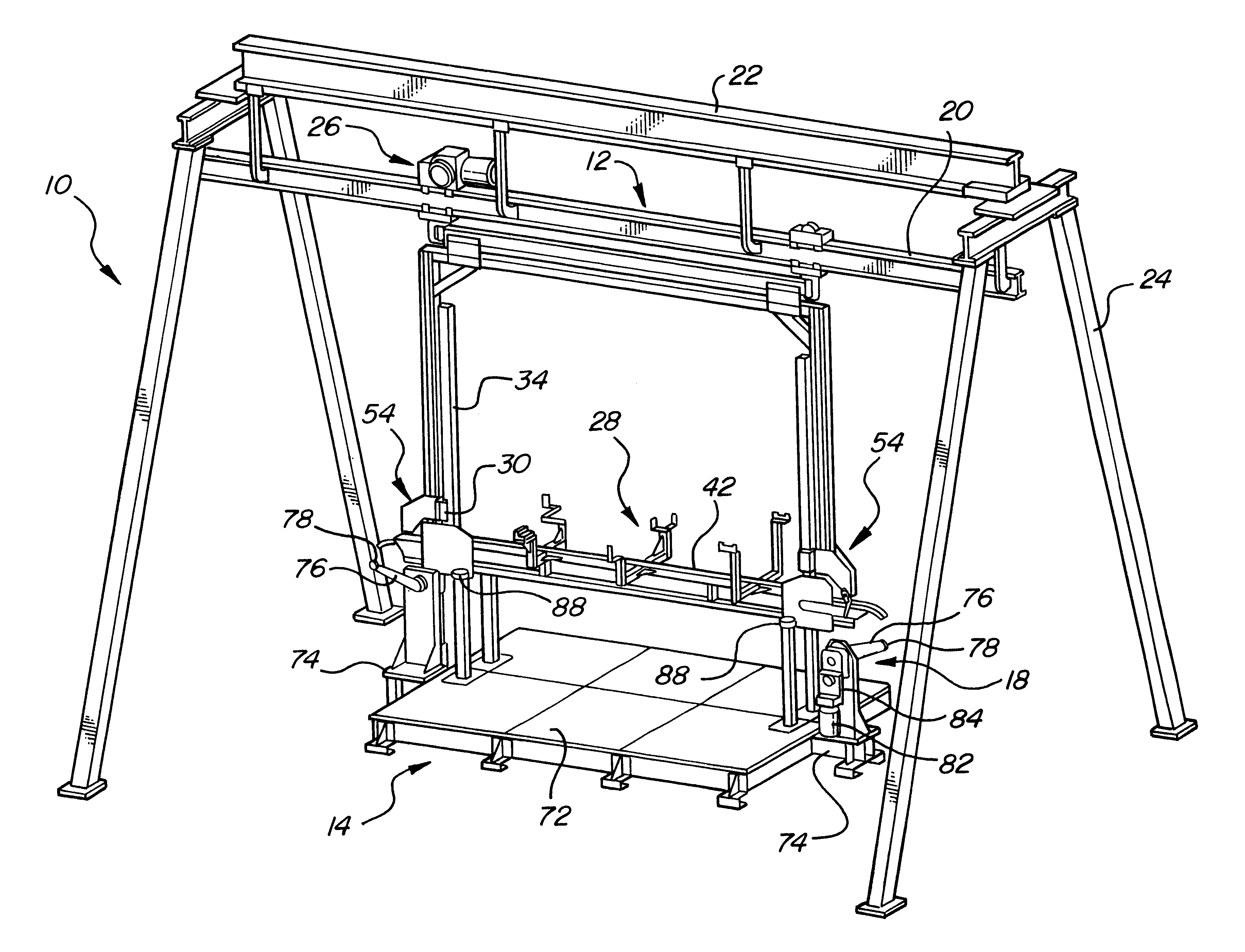

A lowerator for an assembly system of the type including at least one rail defining a path of travel with respect to at least one workstation, and a conveyor for transporting a work piece along the rail. The conveyor includes a trolley moveable along the rail and a carrier moveable with respect to the trolley. The carrier supports a work piece during movement with respect to the workstation. The carrier is vertically positionable between a raised position and lowered position with respect to the trolley. The lowerator moves the carrier between the raised and lowered positions and cycles a latch for securing the carrier to the trolley when in the raised position. The lowerator includes at least one lifter or actuator defining a path of travel in at least a first direction, wherein the lifter actuates the latch to uncouple the trolley and carrier before moving the carrier into the lowered position at the workstation so that one or more processing operations can be performed on the work piece.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B65G Class
- 3.41 % this patent is cited more than
- 23 Age
