Speed adjusting device for pneumatic grinding tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2002
Grant Date -
N/A
app pub date -
Jul 24, 2001
filing date -
Jul 24, 2001
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

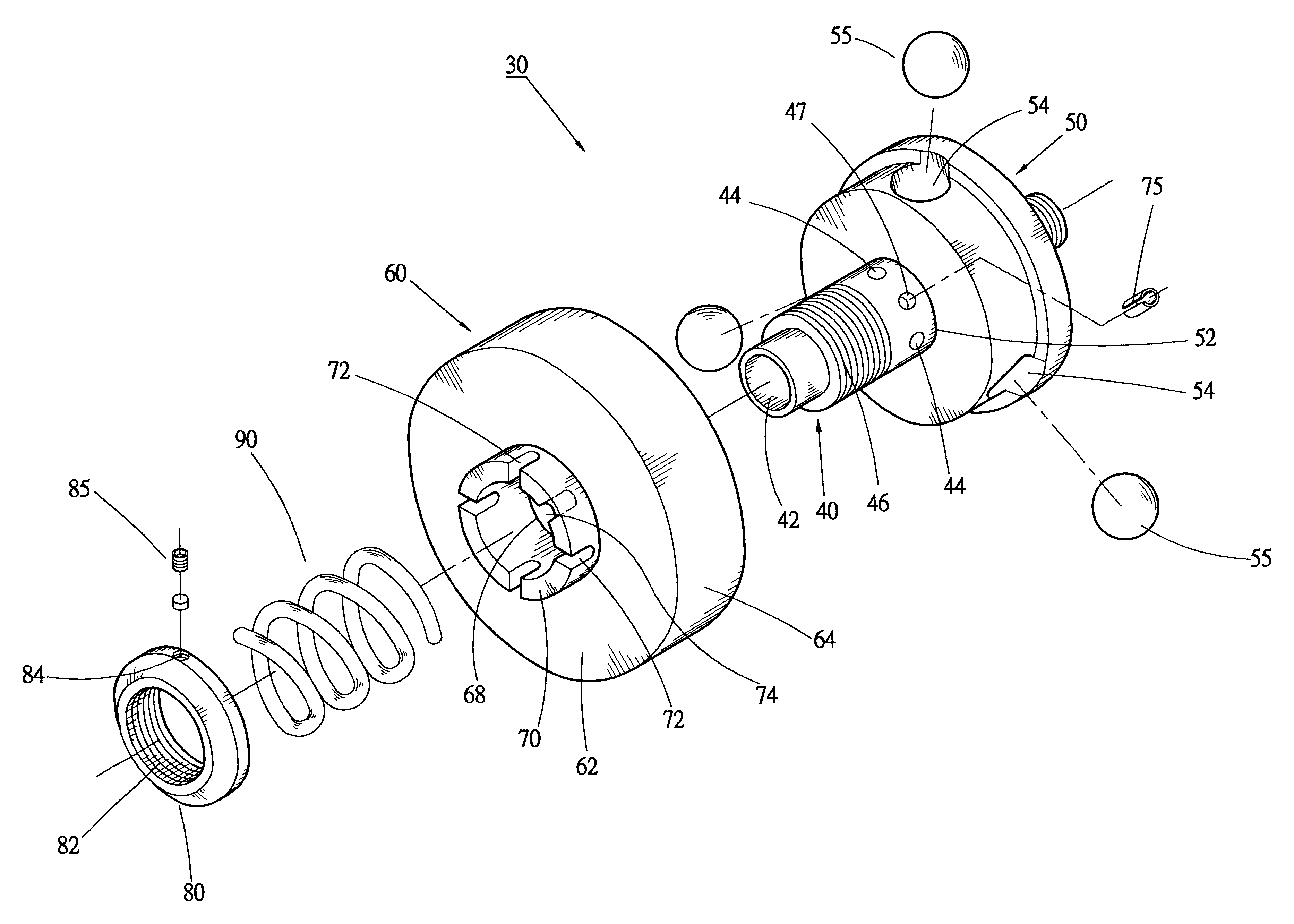

A speed adjusting device for a pneumatic grinding tool includes an axle having a passage defined longitudinally therein and a plurality of apertures are defined in an outer periphery of the axle. A base is mounted and rotated with the axle. A plurality of slide members are respectively and movably received in the slide paths in the base. A disk has a flange extending from a periphery of a front side of the body and a neck extends from a rear side of the body. A plurality of air holes are defined through the neck. The disk is movably mounted on the axle and rotated with the axle. The flange covers the outside of the base. The air holes are located in alignment with the apertures when in normal condition. The air holes are located off alignment with the apertures when the disk is pushed backward by the slide members affected by centrifugal force.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
GISON MACHINERY CO LTD | NO 6 ALLEY 105 LANE 68 SEC 2 SINAN RD WURIH DIST TAICHUNG CITY |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Lin, Freddy | Taichung, TW | 24 | 105 |
# of filed Patents : 24 Total Citations : 105 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
