Adjustable keyboard support mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2002
Grant Date -
N/A
app pub date -
Sep 17, 1999
filing date -
Oct 27, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

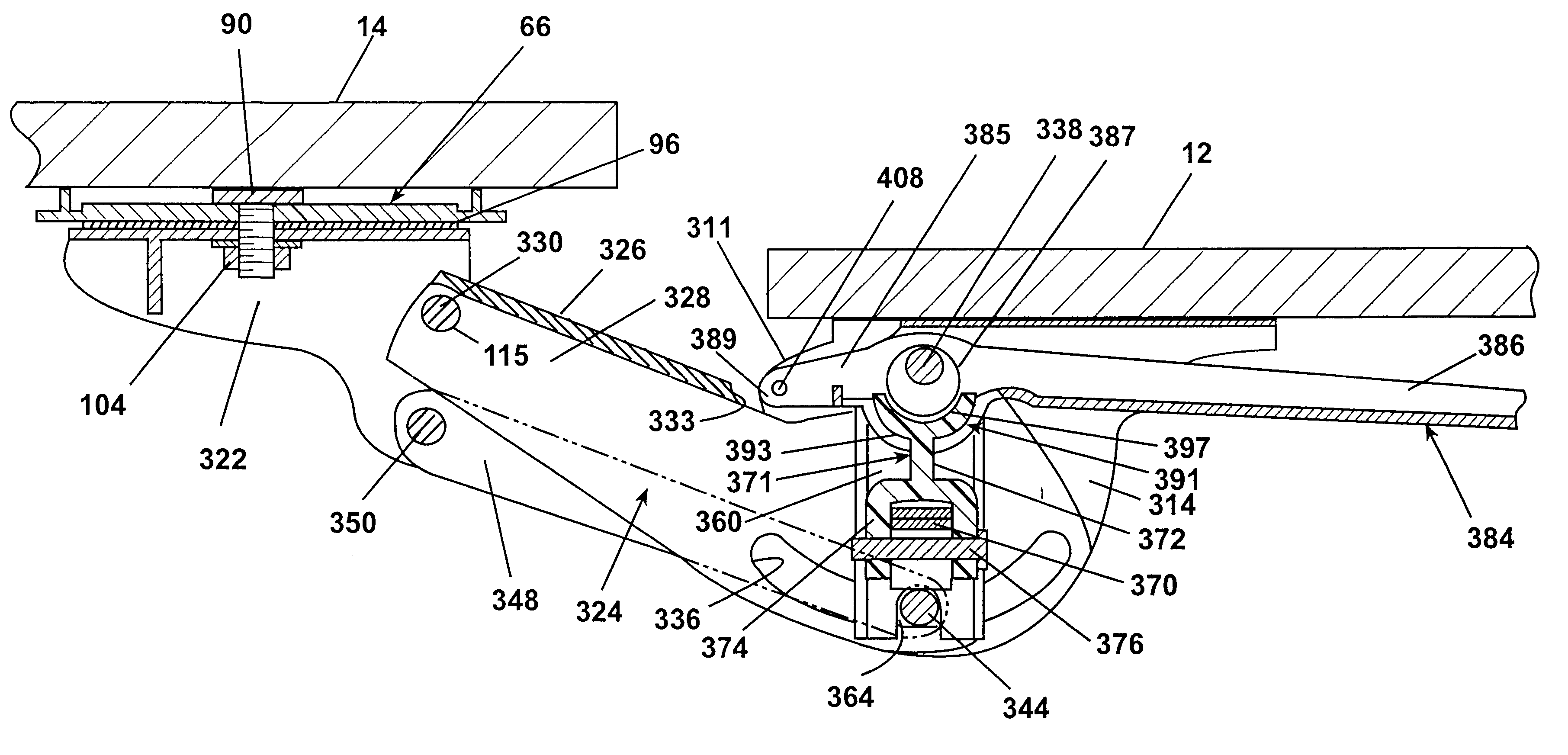

An adjustable keyboard support assembly including a keyboard tray support bracket; a work surface mounting bracket adapted to be coupled to a work surface; a connector mechanism having one end coupled to the work surface mounting bracket and an opposite end coupled to the keyboard tray support bracket, the connector mechanism comprising a support arm coupled to the keyboard support at an outer end, such that the keyboard tray support bracket is rotatable about a horizontal axis with respect to the support arm; an angle control mechanism between the keyboard tray support bracket and the support arm for locking the keyboard tray support bracket at a desired angular inclination with respect to the support arm, the angle control mechanism including a spring exerting a clamping pressure on the support arm and the keyboard tray support bracket and a spring lifter for repositioning the spring so as to relieve the pressured applied to the support arm and the keyboard tray support bracket; and a lever control bar coupled to the keyboard tray support bracket and the spring lifter for actuating the spring lifter to permit adjustment of the keyboard tray support bracket with respect to support arm. The lever control bar is pivotally mounted to the keyboard tray support bracket, and is substantially co-extensive with a front edge of the keyboard tray such that the keyboard support assembly may be repositioned using one hand.
First Claim
Other Claims data not available
