Lifting device for lifting and/or lowering an ordered stack of articles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 11, 2002
Grant Date -
N/A
app pub date -
May 25, 2000
filing date -
Sep 15, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

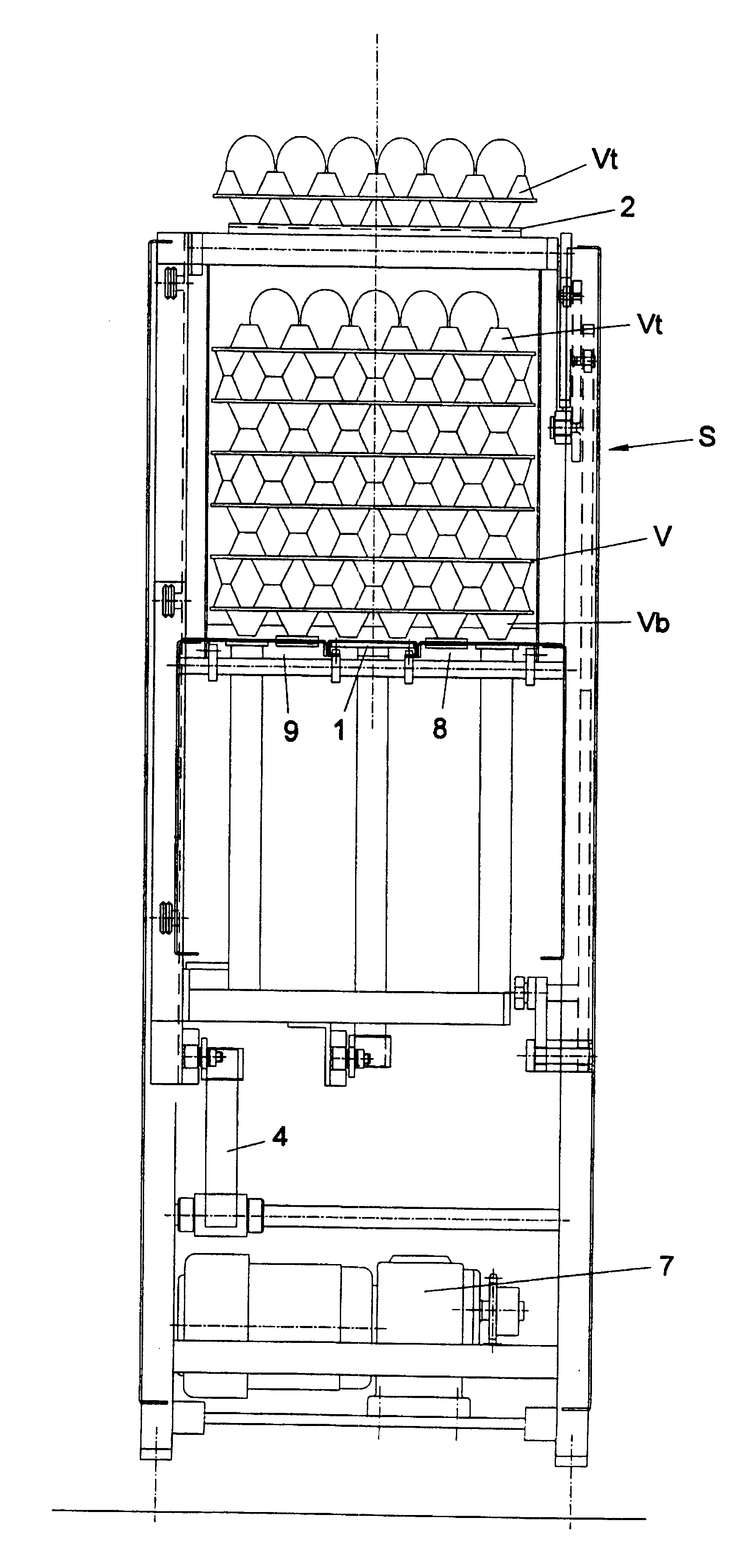

A lifting method and device. A first lifting device lifts a multi-layer stack of articles from a lower position upwardly to a raised position at which the uppermost layer is at a desired level for removal of articles. The first lifting device continues to move the stack upwardly in increments for subsequent removal of articles in subsequent layers at the desired level. A second lifting device engages the bottom of the stack at locations different from the areas engaged by the first lifting device for continuing upward movement of the stack for positioning the remaining layers at the desired level for the removal of articles therefrom. The first lifting device is then movable downwardly to receive a new stack and the second lifting means is foldable to a retracted position and movable to a position below the new stack.
First Claim
Other Claims data not available
