Pleated blind
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 11, 2002
Grant Date -
N/A
app pub date -
Jun 27, 2000
filing date -
Jun 30, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

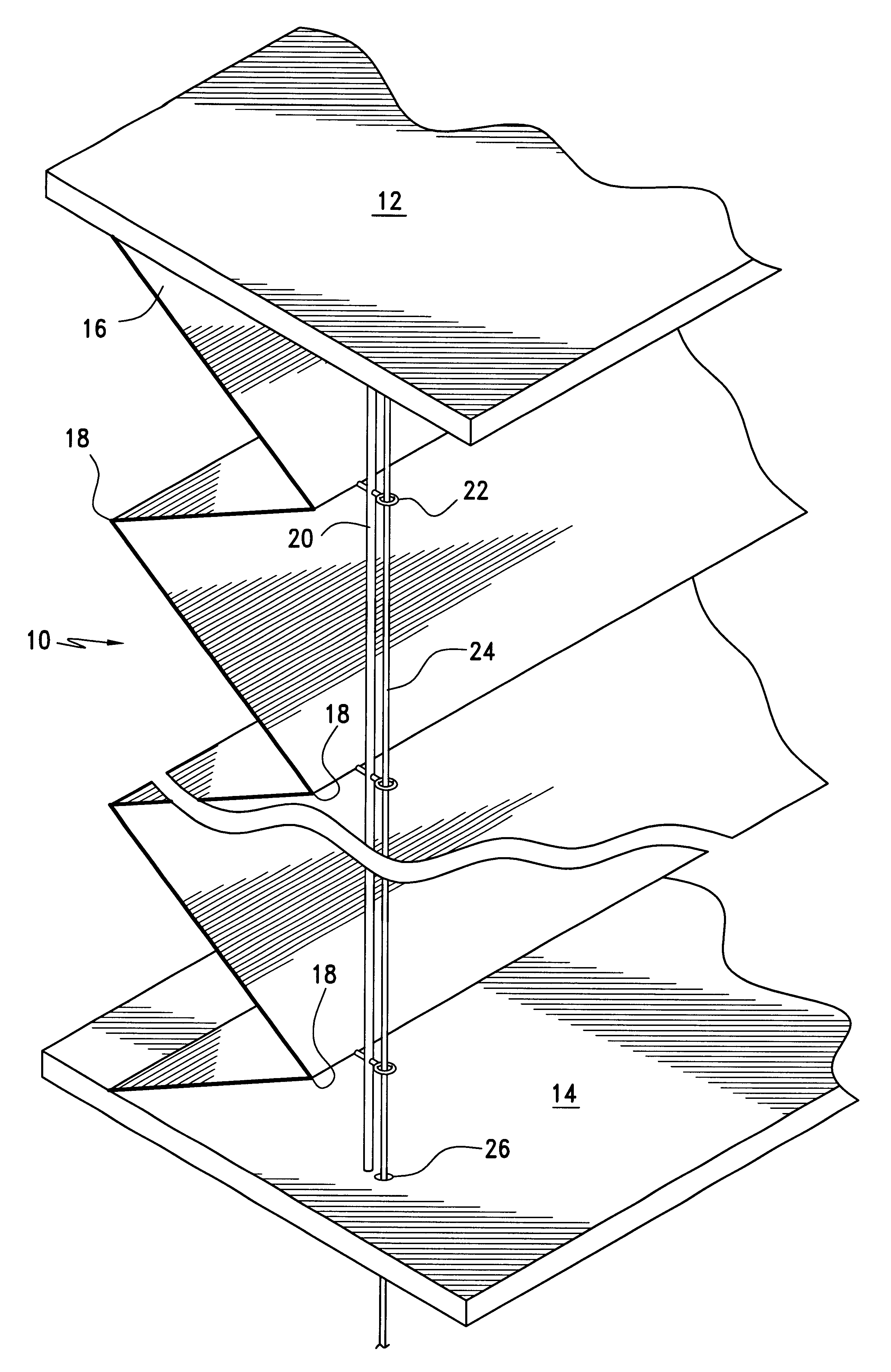

A blind 10 which is particularly suitable for mounting at an angle to the vertical includes two rails, one fixed 12 and the other 14 moveable relative to it, and arranged therebetween a flexible sheet element 16 folded concertina fashion such that it can be folded between the rails when they are displaced towards one another. The blind includes a plurality of support members 22 attached to the sheet element which are slideably engageable with a fixed guide element 24. In a preferred embodiment each support member comprises an annular engagement portion 34 for receiving therethrough a guide element a T-shaped connecting portion 30, 32 extending from the annular engagement portion for attaching the support member to the sheet element.
First Claim
Other Claims data not available
