Decorative cover for a ceiling fan suspension rod
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2002
Grant Date -
N/A
app pub date -
Apr 28, 2000
filing date -
Apr 28, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

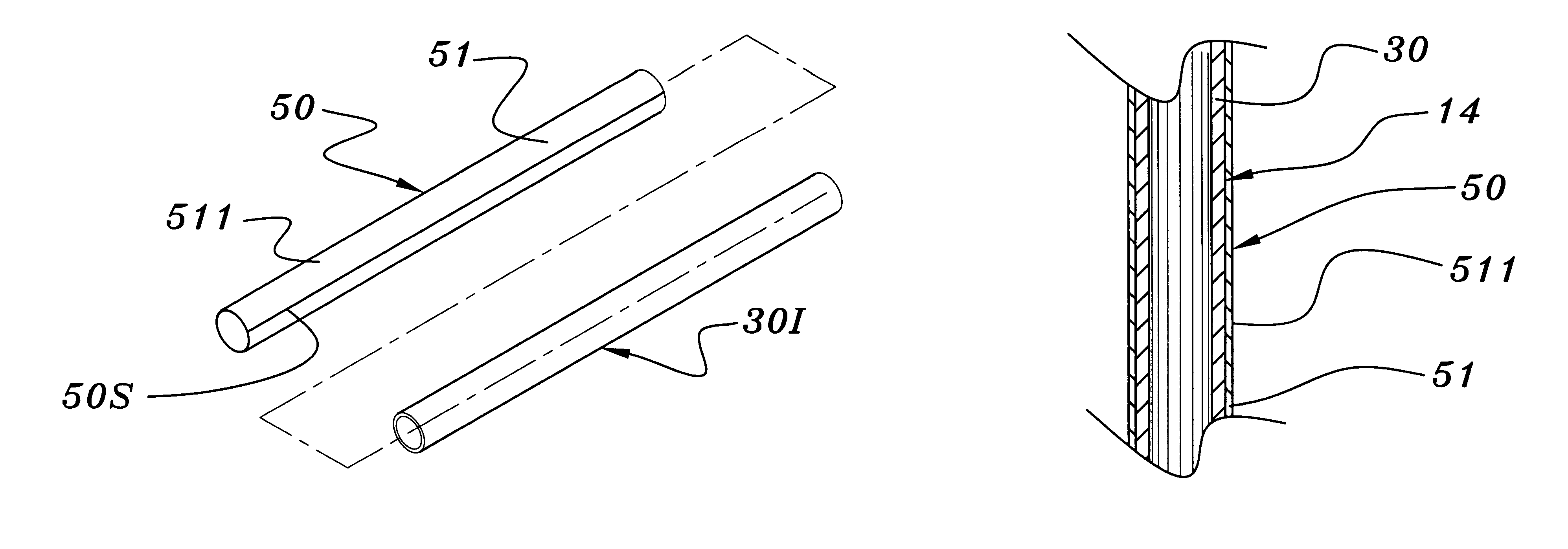

A suspension rod is adapted to connect a ceiling fan to a ceiling bracket that is used to suspend the ceiling fan from a ceiling, and includes a ball portion, an elongated tubular portion, and a sheath member. The ball portion is adapted to be secured to the ceiling bracket. The elongated tubular portion is adapted to permit electrical cables to pass therethrough for providing electricity to a motor of the ceiling fan, and includes an upper end integrally formed with or rigidly connected to the ball portion, a lower end distal to the ball portion and adapted to be inserted into a central hole in an upper major wall of a motor casing, and an intermediate portion that is disposed between the upper end and the lower end, and that has an outer diameter which is smaller than the central hole in size. The sheath member is disposed to surround and extend along the entire length of the intermediate portion, thereby enabling a display of color, shape or texture different from that of the intermediate portion.
First Claim
Other Claims data not available
Family
