Connection between the intake end of a discharge pipe and the outlet end of a connection curve of a water toilet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2002
Grant Date -
N/A
app pub date -
Jul 24, 2000
filing date -
Jul 24, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

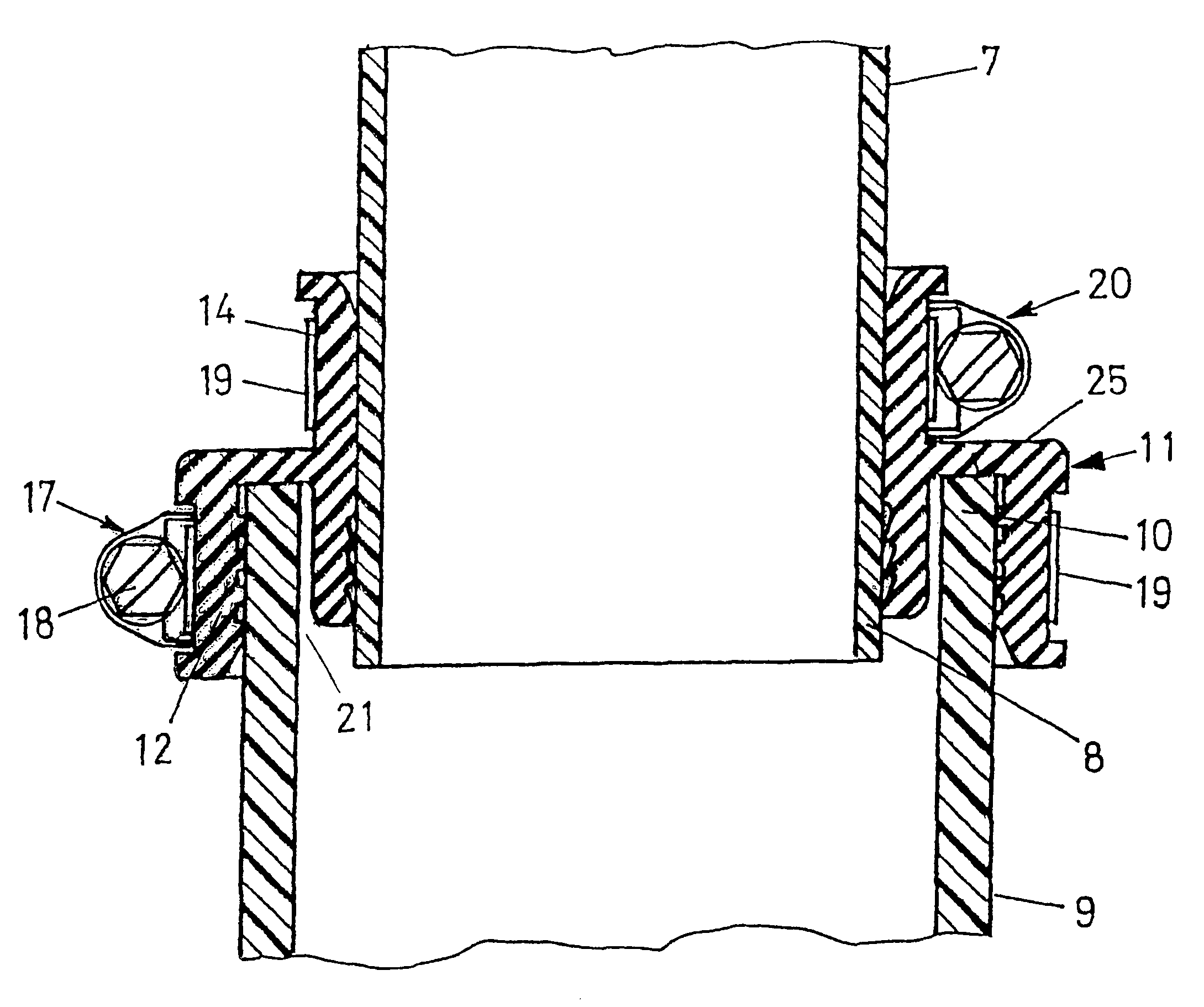

A connection adapted to connect an intake end (10) of a discharge pipe (9) and an outlet end (8) of a connecting curve (7) of a water toilet, wherein the outlet end (8) projects concentrically into the intake end (10) of the discharge pipe (9), said connection comprising a rubber-elastic sealing collar (11), adapted to seal said outlet (8) and said intake end against one another, wherein the sealing collar (11) is h-shaped in a radial section, and has a first downwardly projecting region (12) adapted to tightly engage an outside of the intake end (10); a second downwardly projecting region (13) adapted to tightly engage an outside of the outlet end (8) and a upward-projecting region (14) adapted to tightly engage against the outside of the outlet end (8) of the connecting curve (7).
First Claim
Other Claims data not available
