Clear plastic industrial traffic curtain
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2002
Grant Date -
N/A
app pub date -
Jan 8, 2001
filing date -
Jan 8, 2001
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

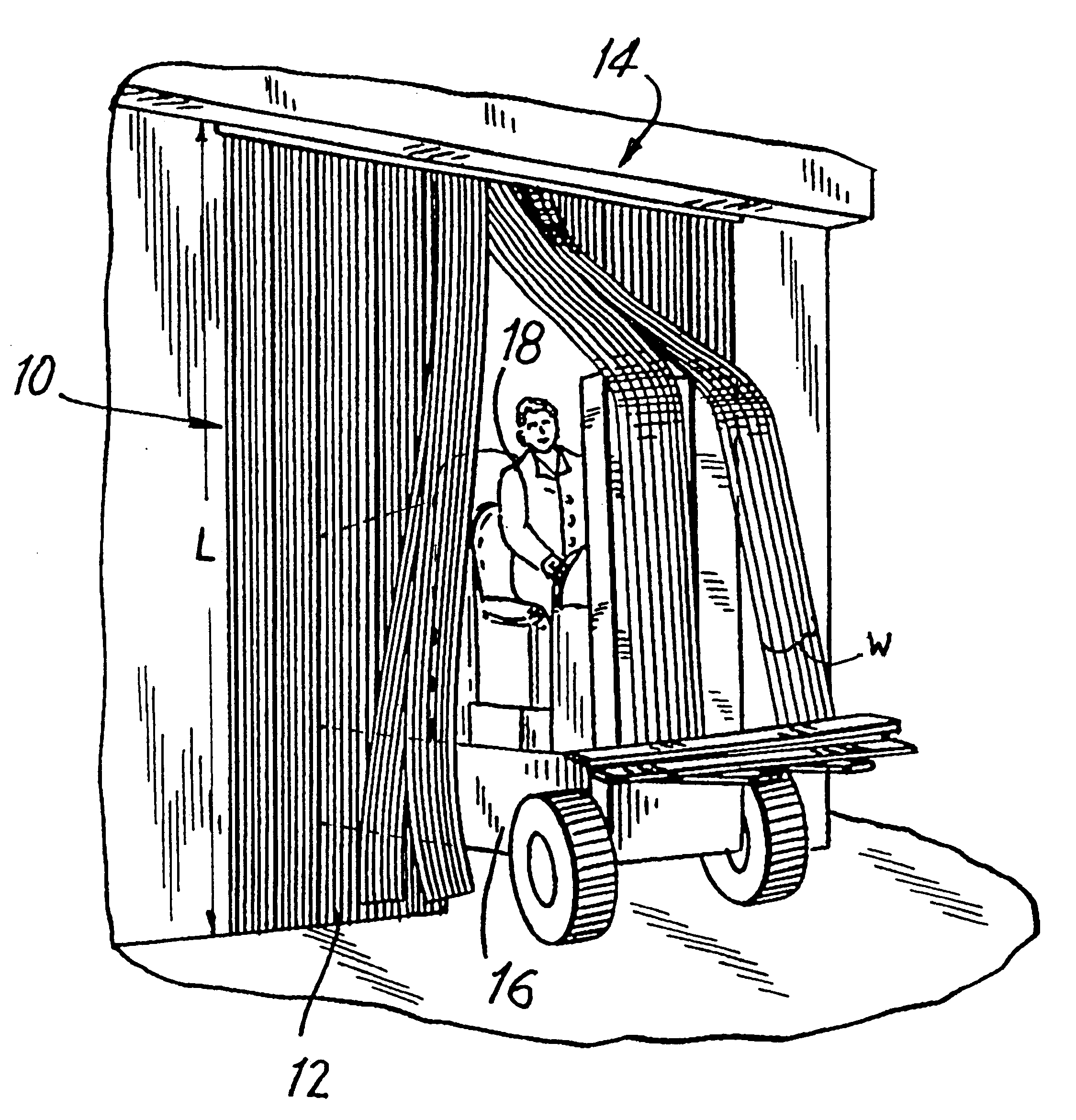

A material for use in an industrial traffic curtain formed of a flexible transparent material, such as polyvinyl chloride, having a substantially uniform longitudinal cross-section, which can be achieved by way of a conventional extrusion process. The strip of material has a transverse cross-section defined by first and second parallel surfaces, the surfaces having an array of regularly spaced, generally rectangular longitudinal ribs of predetermined height and width. The ribs on the first surface are arranged to be coincident with the ribs on the second surface. Each adjacent pair of ribs on each of the surfaces is interspersed by a linear bead having a height dimension approximating the height dimension of the adjacent pair of ribs. The linear beads have a width dimension less than about 10% of the distance between the adjacent pair of ribs so that the space between each pair of ribs remains substantially transparent and vision through the strip is unimpeded. The overlapping strips are arranged in the curtain so that distal surfaces of the ribs on confronting portions of the overlapping strips are in contact with each other.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
ROBBINS III MR EDWARD S | 2802 E AVALON AVENUE MUSCLE SHOALS AL 35630 |
International Classification(s)

- 2001 Application Filing Year
- E05D Class
- 240 Applications Filed
- 70 Patents Issued To-Date
- 29.17 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Robbins, III Edward S | 128 Hazelwood La., Florence, AL 35630 | 125 | 3557 |
# of filed Patents : 125 Total Citations : 3557 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 14 Citation Count
- E05D Class
- 60.54 % this patent is cited more than
- 23 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Jun 23, 2014 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
May 28, 2014 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: May 28, 2014 |
May 28, 2014 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | |
Jan 03, 2014 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Sep 16, 2010 | AS | ASSIGNMENT | free format text: RELEASE BY SECURED PARTY;ASSIGNOR:PNC BANK, NATIONAL ASSOCIATION, AS AGENT;REEL/FRAME:025008/0316 Owner name: ROBBINS, EDWARD S., III, ALABAMA Effective Date: Sep 16, 2010 |
Aug 06, 2009 | FPAY | FEE PAYMENT | year of fee payment: 8 |
Sep 07, 2005 | FPAY | FEE PAYMENT | year of fee payment: 4 |
May 16, 2005 | AS | ASSIGNMENT | free format text: TERMINATION OF SECURITY INTEREST;ASSIGNOR:UNION PLANTERS BANK, NATIONAL ASSOCIATION;REEL/FRAME:016145/0761 Owner name: ROBBINS, MS. MARY L., ALABAMA Effective Date: May 16, 2005 free format text: TERMINATION OF SECURITY INTEREST;ASSIGNOR:UNION PLANTERS BANK, NATIONAL ASSOCIATION;REEL/FRAME:016145/0761 Owner name: ROBBINS, III, MR. E. S., ALABAMA Effective Date: May 16, 2005 free format text: NOTICE OF GRANT OF SECURITY INTEREST;ASSIGNOR:ROBBINS, III, MR. EDWARD S.;REEL/FRAME:016164/0122 Owner name: PNC BANK, NATIONAL ASSOCIATION, AS AGENT, PENNSYLV Effective Date: May 16, 2005 free format text: TERMINATION OF SECURITY INTEREST;ASSIGNOR:UNION PLANTERS BANK, NATIONAL ASSOCIATION;REEL/FRAME:016145/0761 Owner name: E.S. ROBBINS CORPORATION, ALABAMA Effective Date: May 16, 2005 free format text: TERMINATION OF SECURITY INTEREST;ASSIGNOR:UNION PLANTERS BANK, NATIONAL ASSOCIATION;REEL/FRAME:016145/0761 Owner name: CENTAUR HTP NORTHEAST FENCING SYSTEMS, INC., ALABA Effective Date: May 16, 2005 |
May 16, 2005 | AS | ASSIGNMENT | free format text: NUNC PRO TUNC ASSIGNMENT;ASSIGNOR:UNION PLANTERS BANK, NATIONAL ASSOCIATION;REEL/FRAME:016153/0951 Owner name: ROBBINS, III, MR. EDWARD S., ALABAMA Effective Date: May 16, 2005 |
May 28, 2002 | I | Issuance | |
Jan 08, 2001 | F | Filing | |
Jan 08, 2001 | PD | Priority Date |
