Tubular keyed cam lock with screw attachment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2002
Grant Date -
N/A
app pub date -
Mar 2, 2000
filing date -
Mar 2, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

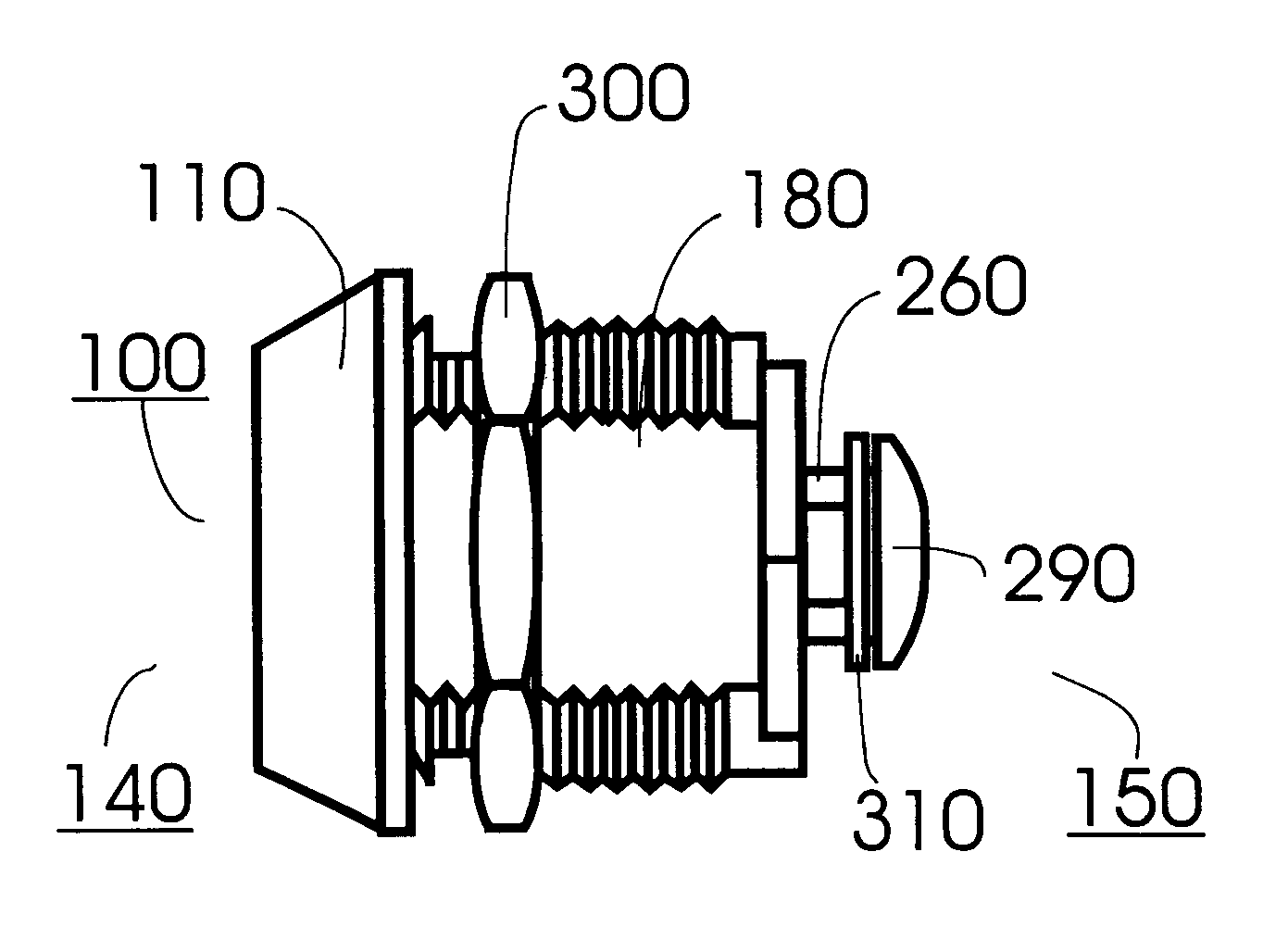

The present invention provides a tubular keyed cam lock with increased resistance to tampering. The cam lock has a rear screw which attaches the cam to the rotatable cam of the lock, thereby increasing the strength of the lock by preventing the lock from being pried off. The lock includes a plug body with a key entering end and a cam actuating end, a plurality of spring biased pin tumblers engaging the key when the key is inserted into the plug body and a lock housing within which the plug body is rotatably positioned. The lock housing has at least one limit stop disposed thereon. As discussed above, the cam-actuating end of the plug body is connected with a screw to a metal stop plate.
First Claim
Other Claims data not available
Family
International Classification(s)
- Non-US Classification not provided for expired patents
Cited Art Landscape
Patent Citation Ranking
- Citation Ranking not provided for expired patents
