Chopping machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 21, 2002
Grant Date -
Jul 19, 2001
app pub date -
Jan 18, 2001
filing date -
Jan 19, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

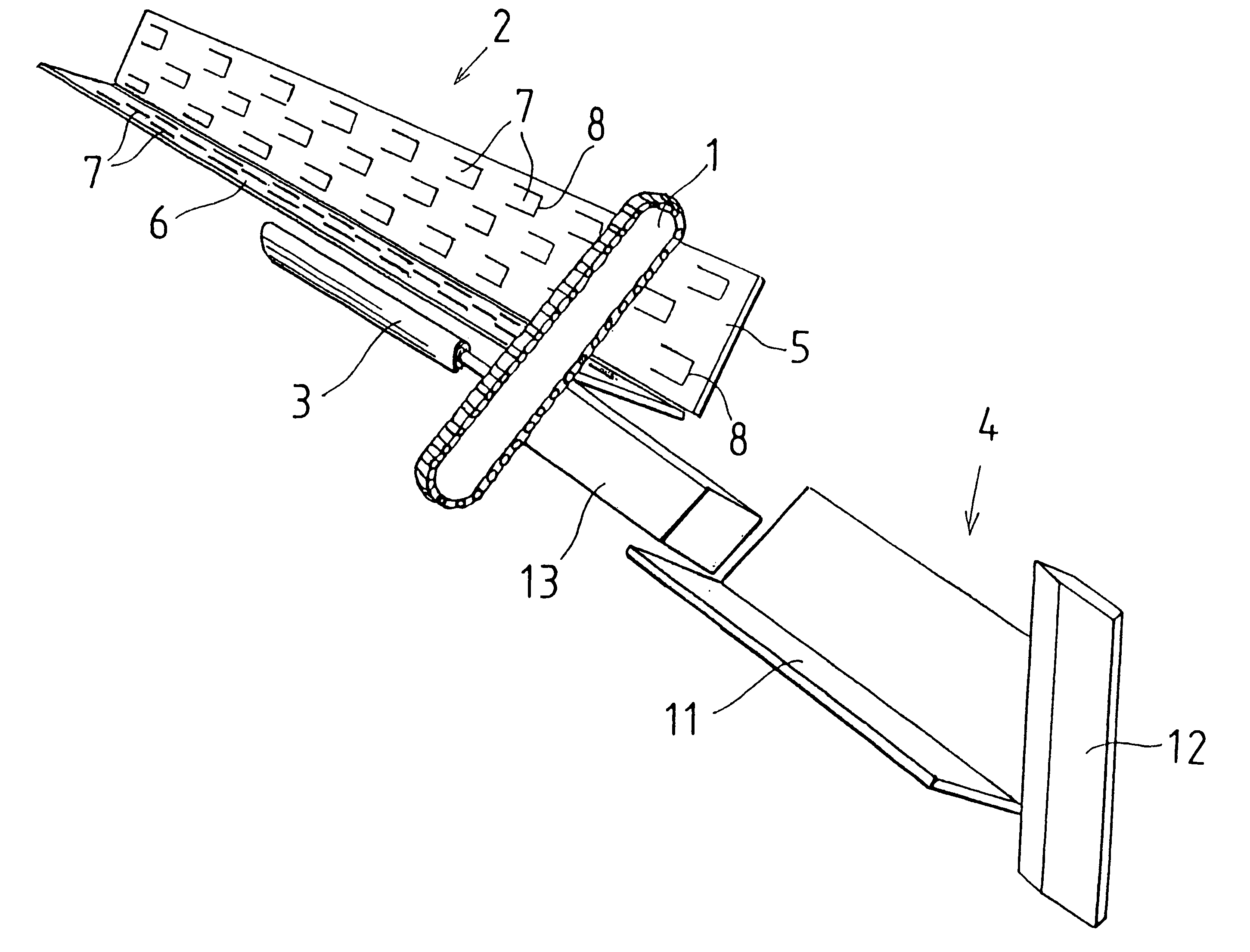

The chopping machine includes a crosscutting device for cutting the timber, a feeder for feeding the timber in its longitudinal direction to the crosscutting device and a splitting apparatus operated by a splitting cylinder for splitting a cut block of timber. The feeder includes two elongated supporting surfaces forming a substantially horizontal trough open in the upward direction, into which the timber to be treated can be placed. One of the supporting surfaces is connected to a power device for moving the supporting surface back and forth in the longitudinal direction of the trough, and the supporting surfaces are provided with directional holding elements arranged in the longitudinal direction of the trough to prevent the timber from moving in relation to the surface away from the crosscutting device.
First Claim
Other Claims data not available
