Display case frame
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 9, 2002
Grant Date -
N/A
app pub date -
Jun 9, 2000
filing date -
Jun 9, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

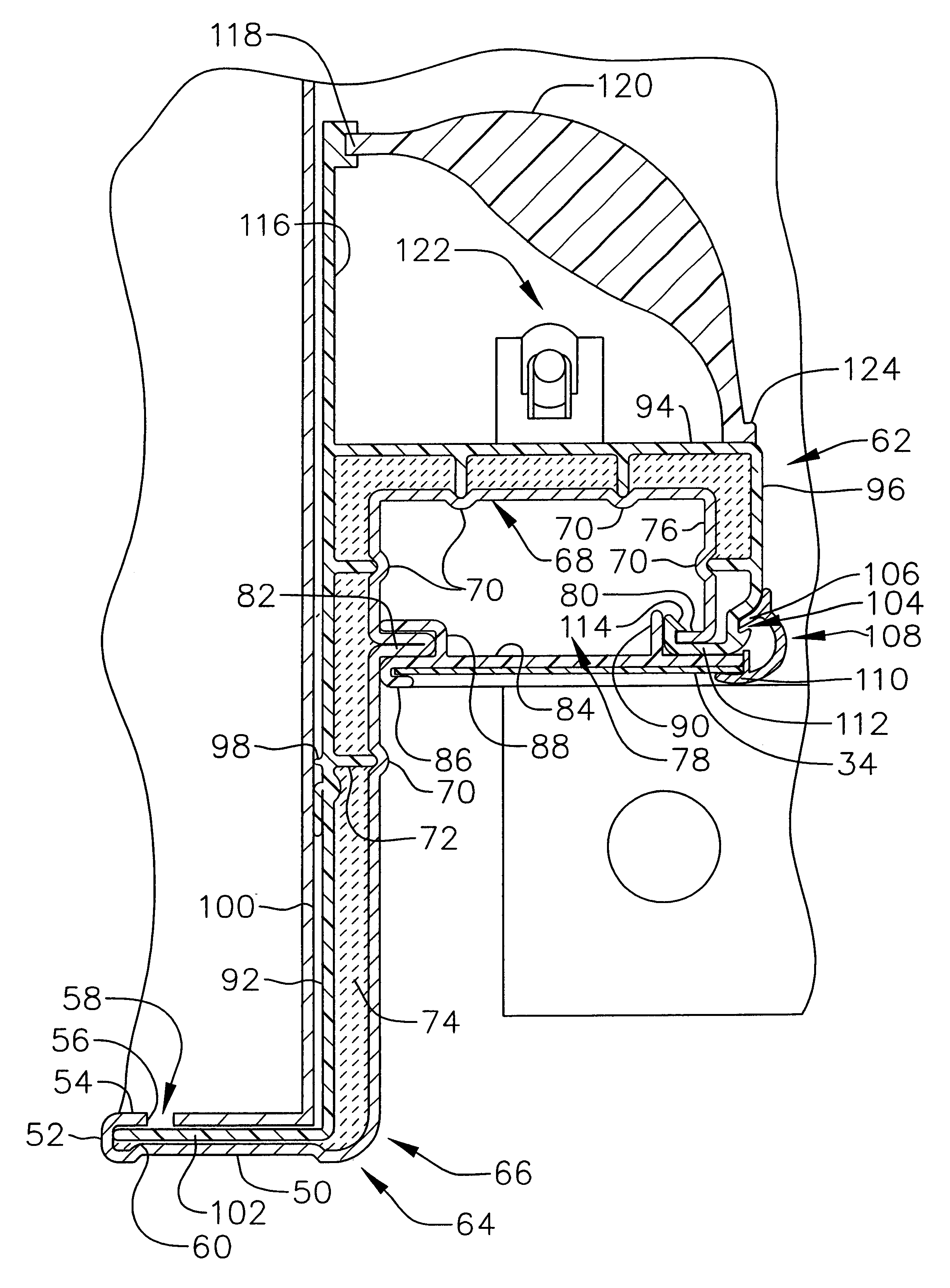

Perimeter frame rails and door frames rails are described for a more thermally efficient and cost-effective display case such as for refrigerated display cases. The frames are preferably formed from cold rolled steel. A perimeter frame may include first, second and third walls defining an opening or a recess that can be closed by a contact plate. A door for a refrigerated display case may include a glass unit and a forward portion extending inwardly from a perimeter frame edge portion toward an edge of the forward glass pane and a first side portion extends rearwardly to a groove. An insulating member insulates the door rail from the cold area and includes a portion engaging the groove.
First Claim
Other Claims data not available
