Operating-cycle synchronized engagement and disengagement of servo axle groups by means of electronically simulated cam disks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 2, 2002
Grant Date -
N/A
app pub date -
Jul 17, 2000
filing date -
Jul 16, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

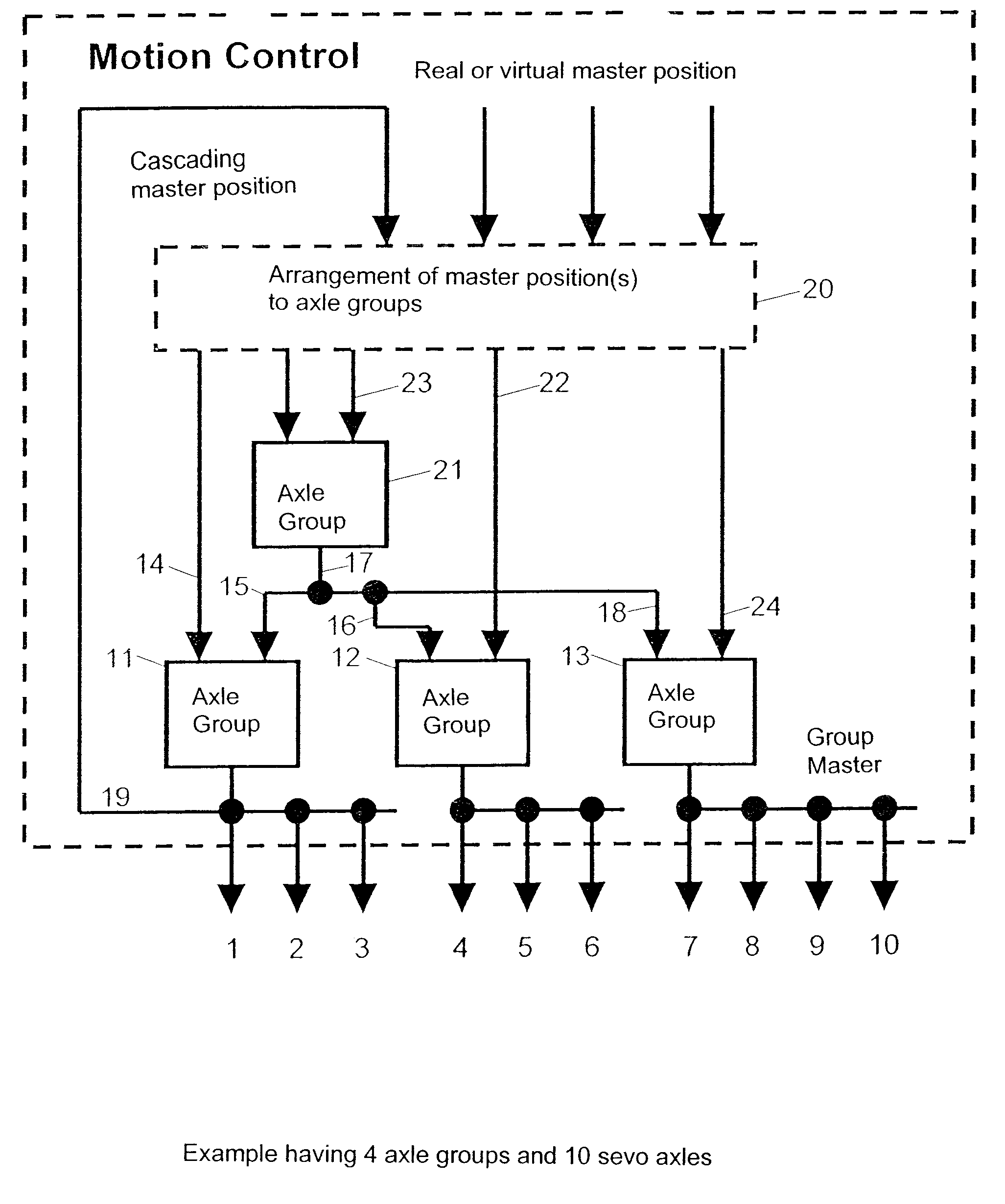

Disclosed is a system for an operating-cycle synchronized disengagement and re-engagement of groups of servo axles to be synchronized electronically and a method for disengaging and engaging a servo axle group to be synchronized electronically with a master position value sequence where, by correlations of master position value sequences stored in a computer, and servo axle group reference values assigned to these sequences in each case, the servo axle group reference values are determined in such a way that, following engagement, synchronization of the speed and angle of the servo axle group with the master position value sequence is carried out. The synchronization of the angle of the servo axle group reference values with the master position value sequence on the basis of the tables during disengagement and subsequent engagement is carried out in such a way that operating cycles executed by the servo axle group during the processing of a product are offset in time with respect to the master position value sequence by one or more complete operating cycles of the master position value sequence or of the servo axle group.
First Claim
Other Claims data not available
Family
