Seismic isolator for exhibits
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 2, 2002
Grant Date -
N/A
app pub date -
Nov 18, 1999
filing date -
Nov 18, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

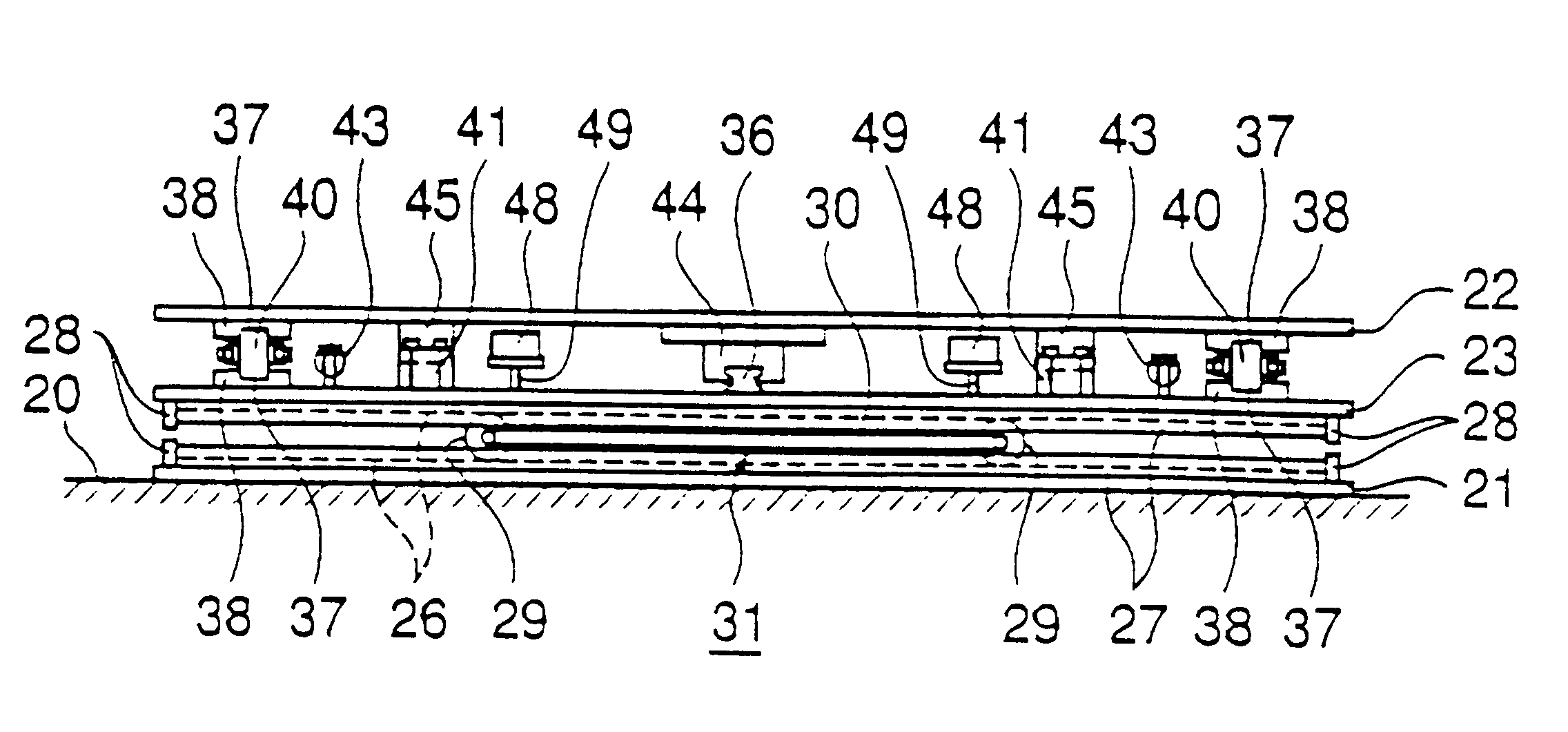

A flat-type seismic isolator for exhibits includes a lower face plate installed on a foundation; an upper face plate that is installed to the lower surface of a seismic isolation object and placed above the lower face plate; an intermediate plate placed between the upper face plate and the lower face plate; and elastic restoring means and damping means provided for returning the plates to their original positions and placed in a lower area between the lower face plate and the intermediate plate and an upper area between the intermediate plate and the upper face plate, respectively. In the lower area, one lower linear guide rail is disposed in the center of the area and guide rails and rollers are disposed on opposite sides of the lower linear guide rail in parallel relation therewith for smoothly moving the intermediate plate with respect to the lower face plate in one linear direction. In the upper area, one upper linear guide rail is disposed in. the center of the area and guide rails and rollers are disposed on opposite sides of the upper linear guide rail in parallel relation therewith for smoothly moving the upper face plate with respect to the intermediate plate in one linear direction. The lower linear guide rail and the upper linear guide rail orthogonally cross each other, and the guide rails and rollers in the lower area and the upper area orthogonally cross each other.
First Claim
Other Claims data not available
