Handle for a barbecue grill
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 2, 2002
Grant Date -
N/A
app pub date -
Aug 13, 1999
filing date -
Aug 13, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

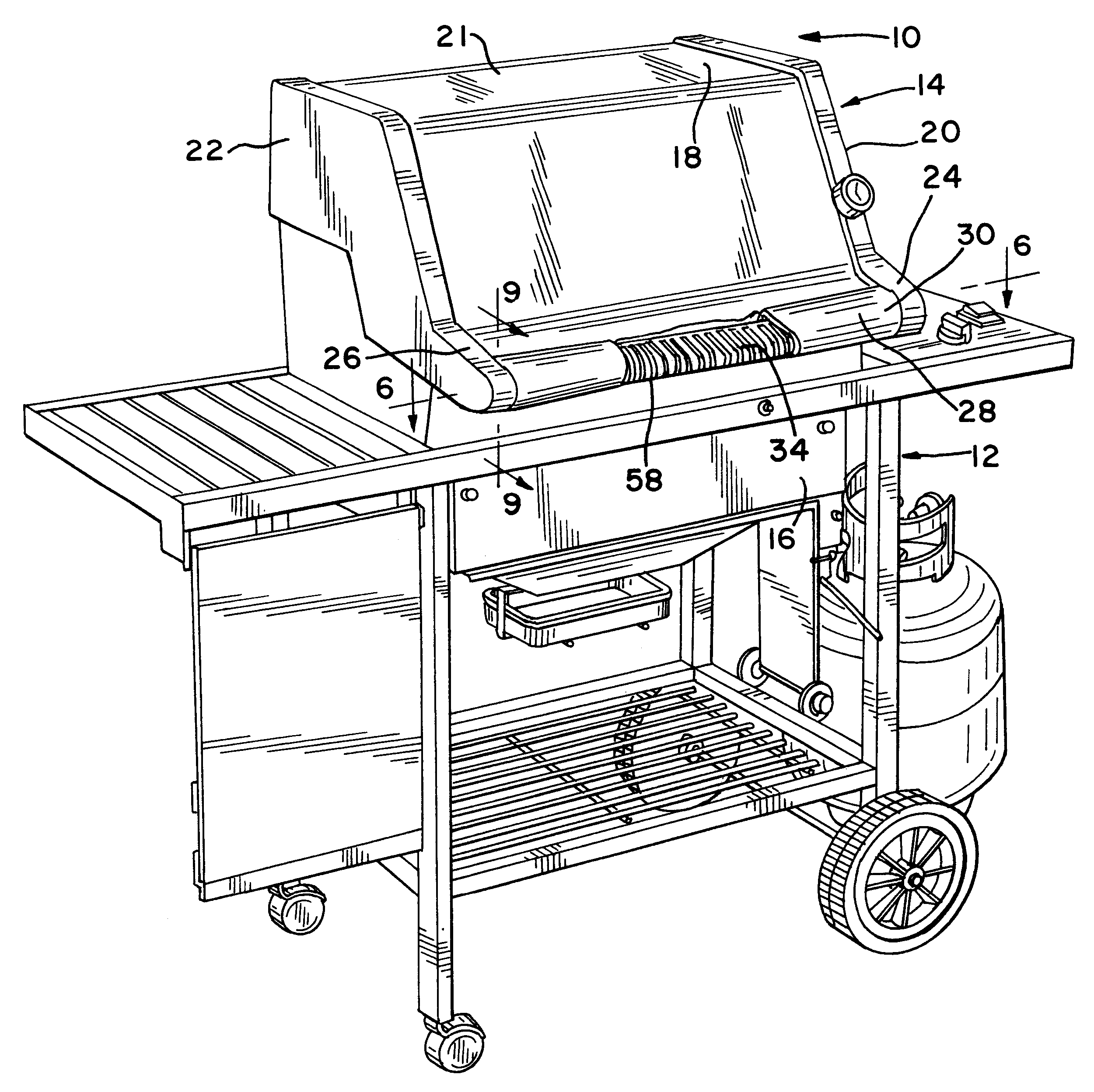

A handle (28) for a grill (10) has a gripping portion (34). The gripping portion (34) defines an inner chamber (31) therein. The gripping portion (34) has a passageway (52) in fluid communication with the inner chamber (31) and the atmosphere. The handle (28) is adapted to be connected to a lid (18) of the grill (10). The lid (18) has a support member (20) having a sleeve (24). The sleeve (24) has an inner wall (64) having an inner surface (66). The gripping portion (34) has an end (38) and an expansion member (42) connected to the end (38). The expansion member (42) is adapted to be received by the sleeve (24). The expansion member (42) has an expansion wall (72) having an outer surface (80) wherein the expansion wall (72) is adapted to be expanded outwardly wherein the outer surface (80) of the expansion wall (72) engages the inner surface (66) of the sleeve (24).
First Claim
Other Claims data not available
