Multi-ply integrated label form
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 26, 2002
Grant Date -
N/A
app pub date -
May 15, 1998
filing date -
May 15, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

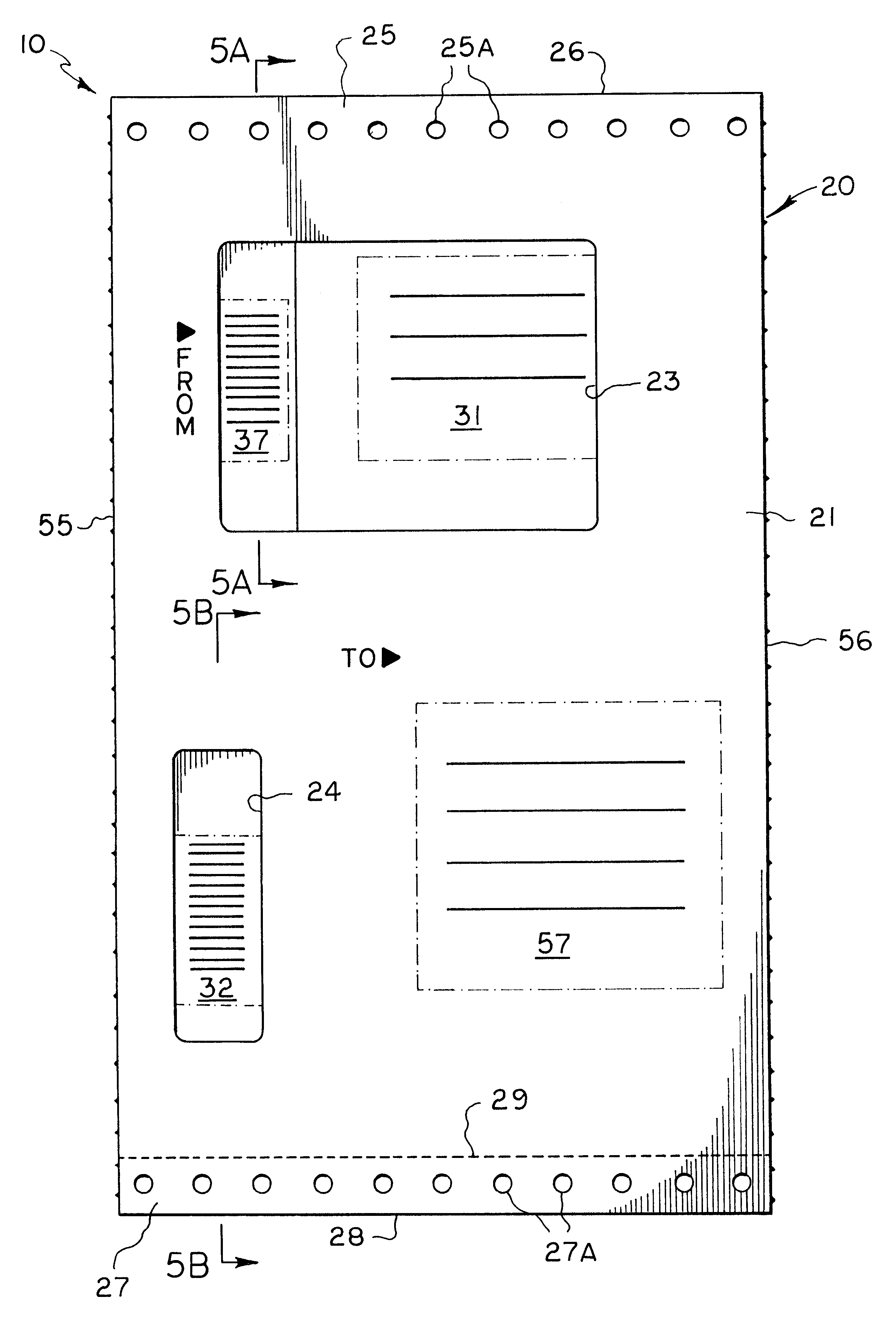

The invention broadly comprises a multi-ply integrated label form including a first ply having an upper side and an underside and having a first die cut window and a second die cut window, and also having an integral marginal feed strip along a first edge of the first ply and a detachably secured marginal feed strip along a second edge of the first ply, where the first edge and second edge are parallel to one another; a second ply having a label portion, a card stock portion adjacent to and detachably secured to the label portion, a marginal strip portion adjacent to and detachably secured to the card stock portion, and a marginal feed strip portion adjacent to and detachably secured to the marginal strip portion, each of the label portion, card stock portion, marginal strip portion, and marginal feed strip portion having an upper side and an underside, the underside of the label portion and of the marginal strip portion being coated with an adhesive, wherein the first ply is removably secured to the second ply; and, a third ply comprising a first portion and a second portion, each of the third ply first and second portions having an upper side coated with a release material, the third ply first portion being in register with the second ply label portion and removably secured thereto by the adhesive, and the third ply second portion being in register with the second ply marginal strip portion and removably secured thereto by the adhesive.
First Claim
Other Claims data not available
