Window lift bracket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 26, 2002
Grant Date -
N/A
app pub date -
Jul 18, 2000
filing date -
Oct 18, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

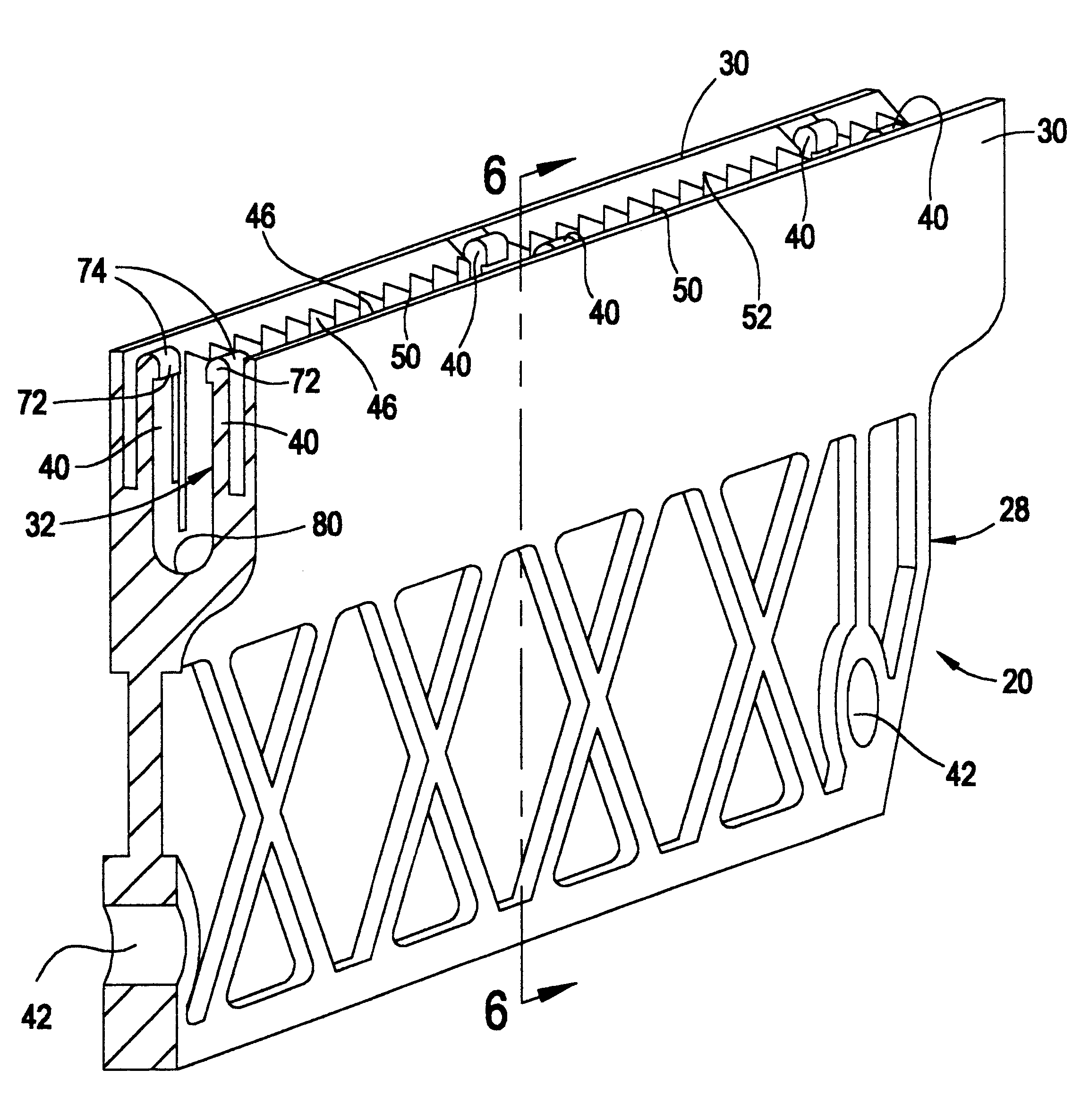

A window lift bracket for attachment to a mounting edge of a movable window and which is connectable to a window lifting mechanism. The window lift bracket includes a base which is attachable to the window lifting mechanism and spaced apart portions extending from the base being positionable on either side of the movable window. The spaced apart portions define a channel therebetween. The window lift bracket includes at least one member, such as a flexible beam member, which is disposed generally in the channel for engaging the window when the window is disposed therein. Preferably, the engagement between the member and the window provides a reduced stress area at the bottom of the channel. Opposing surfaces of the spaced apart portions may provide convoluted surfaces, such as protrusions and depressions, which effectively increase the surface area to which the adhesive adheres, thereby improving the adhesion of the adhesive to the window bracket and the window.
First Claim
Other Claims data not available
