Virtualized endoscope system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 12, 2002
Grant Date -
N/A
app pub date -
Feb 27, 1998
filing date -
Feb 27, 1997
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

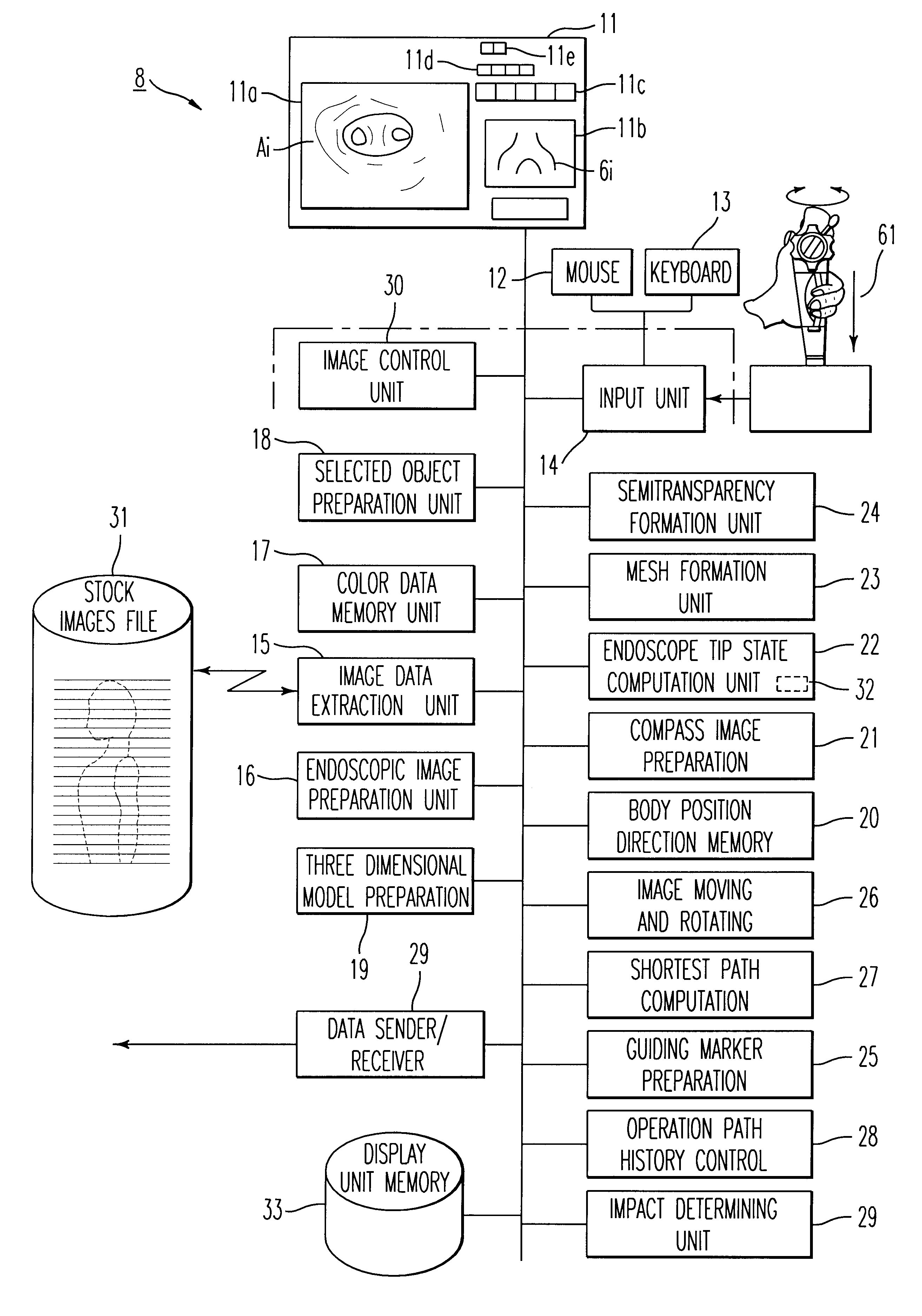

An image processing system displaying an endoscopic image of a three-dimensional object from a desired viewpoint position and view direction. A three-dimensional model preparation unit prepares a three-dimensional model of the object and an endoscopic image preparation unit prepares a first image of the three-dimensional model as viewed from the viewpoint position and view direction. A simulated endoscopic examination of a virtual subject can be realized by permitting an operator to change the viewpoint position and view direction to coincide with the movement of a virtual endoscope. The usefulness of the virtual endoscope is enhanced with various features of the invention which facilitate control over the virtual endoscope and make the virtual images useful in the insertion of a real endoscope. Such features include: the superimposition of endoscopic images; an indicator image which indicates the orientation of the virtual endoscope relative to the organ being examined; a compass image indicating the orientation of a virtual subject relative to the virtual endoscope tip; guiding markers which indicate the direction in which the virtual or real endoscope is to be advanced; and focus markers which reveal the location of predetermined conditions such as a nidus within the virtual subject. A virtual operation device, modeled after an actual endoscope operating member, is used to control movement of the virtual endoscope tip within the virtual subject.
First Claim
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
TOSHIBA MEDICAL SYSTEMS CORPORATION | OTAWARA-SHI TOCHIGI-KEN 324-8550 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Fukunaga, Tomohisa | Tochigi-ken, JP | 4 | 210 |
# of filed Patents : 4 Total Citations : 210 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 195 Citation Count
- G06T Class
