Abstract

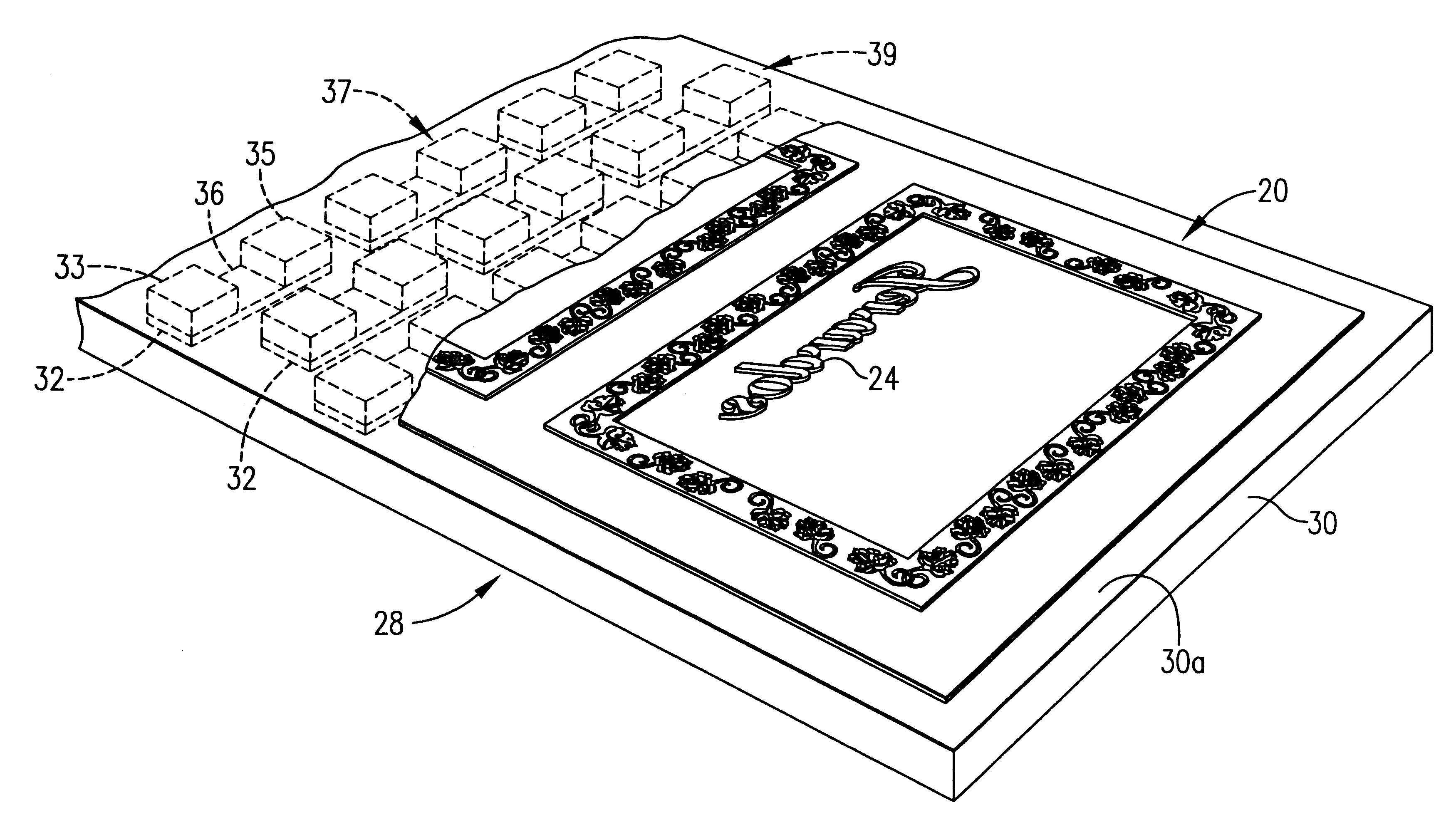

This invention relates to a relatively thin cladded graphic arts impression graphic arts impression die plate (20) having a steel layer (22) which is integral throughout the extent thereof with a layer of copper (24) or bronze. A relieved design-defining surface may be formed in the copper or bronze layer by a chemical etching process or by chemical milling. In the case of chemical etching of the graphic arts impression die plate (20), a design-defining layer of photo-resist is applied to the outer surface of the copper layer (24) or the bronze layer and the relieved design is formed in the copper or bronze layer using a conventional ferric chloride etching solution. The etched graphic arts impression die plate may be mounted on an etchant-resistant backing or magnetic support member (28) to present an assembly which increases the thickness of the die assembly sufficiently to permit use thereof on standard stamping and embossing equipment without modification of the die-supporting chase. The magnetic support member (28) has a plurality of pairs of permanent magnets (33, 35) each pair of which is embedded within a respective cavity (32) and that are magnetically bridged by a steel plate (36). The pairs of magnets (33 and 35) attract the steel layer (22) of the graphic arts impression die plate (20) and thereby hold the graphic arts impression die plate on the magnetic support member (28). Etching of a blank cladded metal graphic arts impression die plate (20) is facilitated by provision of a rotatable magnetic support member (64, 164, 264, 364) within die etching apparatus (40) which serves to support the die blank while it is being subjected to the etchant solution. The die blank magnetic support member (64, 164, 264, 364) has permanent magnets (78, 178, 278, 378) embedded therein, or altematively pairs of magnets each pair of which is bridged by a steel plate, which magnetically attract the steel layer (22) of the graphic arts impression die plate (20) to affix the graphic arts impression die plate to the magnetic support member.
