Apparatus for externally modulating two optical channels at the same time
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 11, 2001
Grant Date -
N/A
app pub date -
Oct 6, 1999
filing date -
Oct 6, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

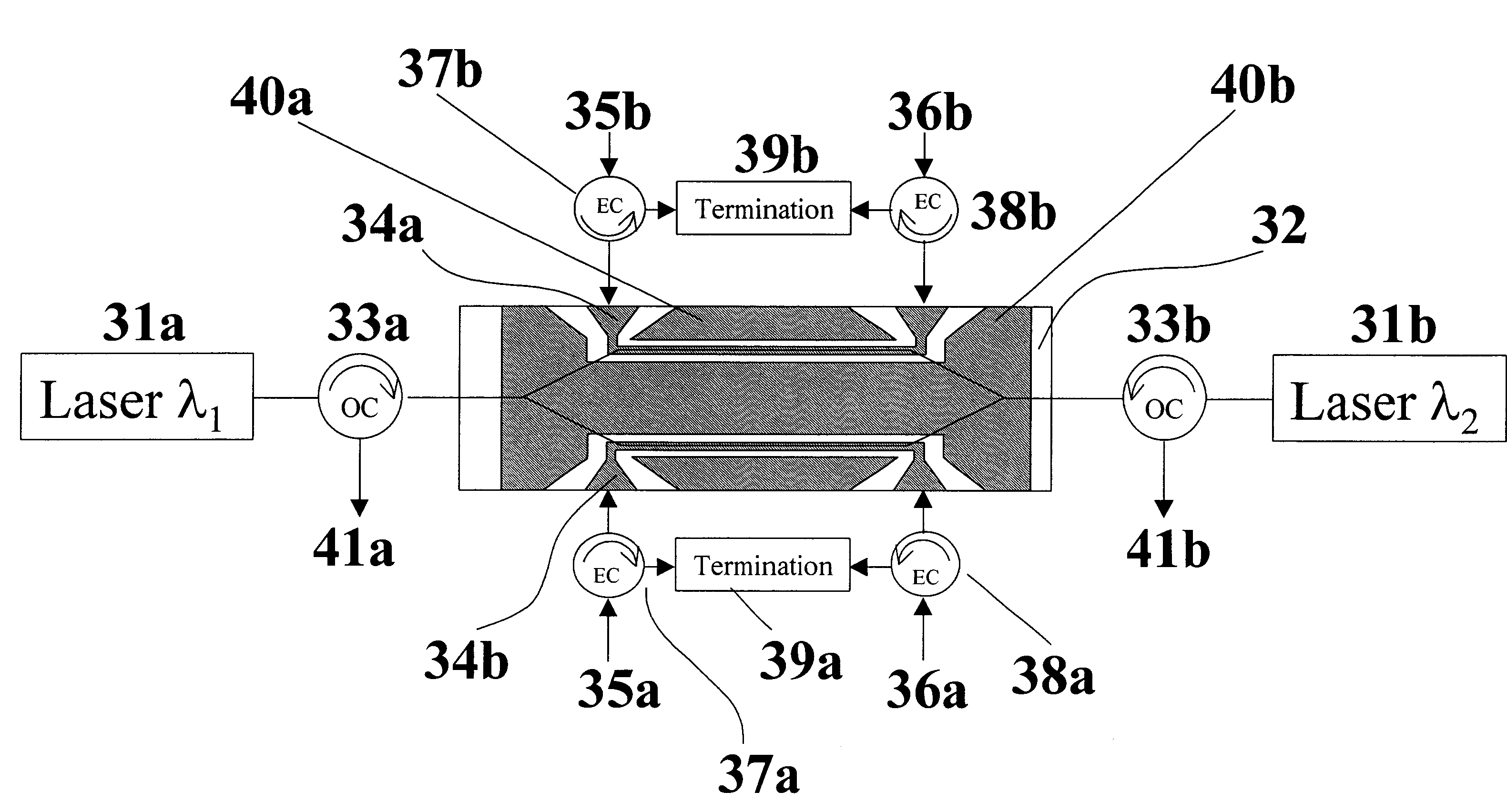

A Mach-Zehnder interferometer-type modulator for externally modulating two independent optical signals with first and second electrical signals, the modulator includes a first electrode receiving the first electrical signal, a second electrode receiving the second electrical signal, a first optical signal path co-propagating the first optical signal with the first electrical signal and counter-propagating the first optical signal with the second electrical signal, to generate a first modulated optical signal corresponding to the first optical signal modulated with the first electrical signal, and a second optical signal path co-propagating the second optical signal with the second electrical signal and counter-propagating the second optical signal with the second electrical signal, to generate a second modulated optical signal corresponding to the second optical signal modulated with the second electrical signal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 21 Citation Count
- G02B Class
- 70.89 % this patent is cited more than
- 24 Age
