Device, system and method for on-line explosive deslagging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 27, 2001
Grant Date -
N/A
app pub date -
Sep 10, 1999
filing date -
Jan 17, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

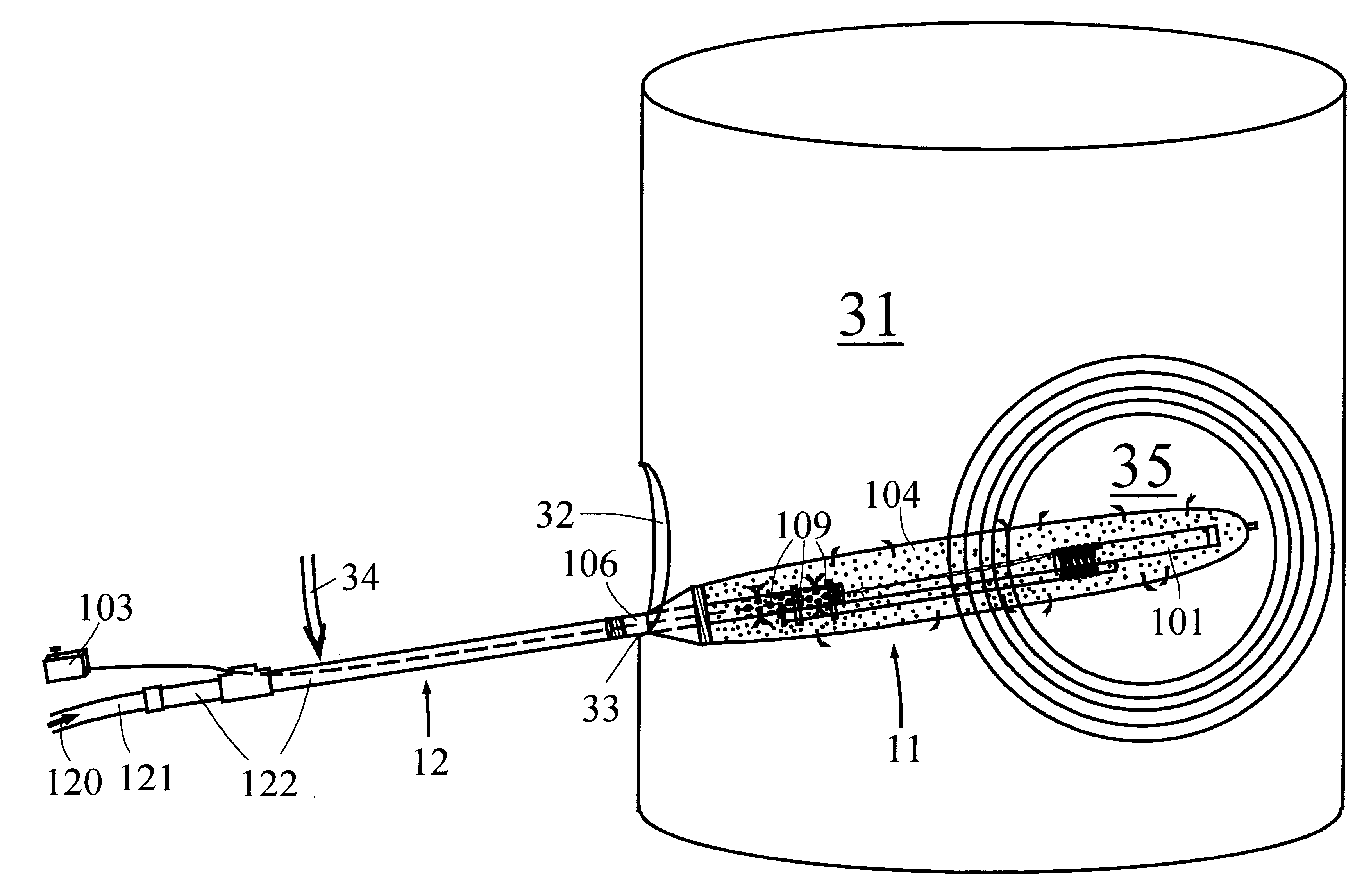

A device, system and method permitting on-line explosives-based cleaning and deslagging of a fuel burning facility such as a boiler, furnace, incinerator, or scrubber. A coolant, such as ordinary water, is delivered to the explosives to prevent them from detonating due to the heat of the on-line facility. Thus, controlled, appropriately-timed detonation can be initiated as desired, and boiler scale and slag is removed without the need to shut down or cool down the facility. Alternative preferred embodiments include, but are not limited to: (1) using a non-liquid coolant, such as compressed air or other non-flammable gas, in place of the aforementioned liquid coolant; (2) using one or more highly-heat-resistant insulating materials to insulate the explosive and detonator cap, in place of or in addition to the aforementioned liquid or gaseous coolants; and (3) preparing and using a highly-heat-resistant explosive device, in place of or in addition to the aforementioned liquid or gaseous coolants, and/or the aforementioned highly-heat-resistant insulating materials, in any desired combination.
First Claim
Other Claims data not available
