Airtight adapter and a replacement method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2001
Grant Date -
N/A
app pub date -
Feb 10, 1999
filing date -
Feb 10, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

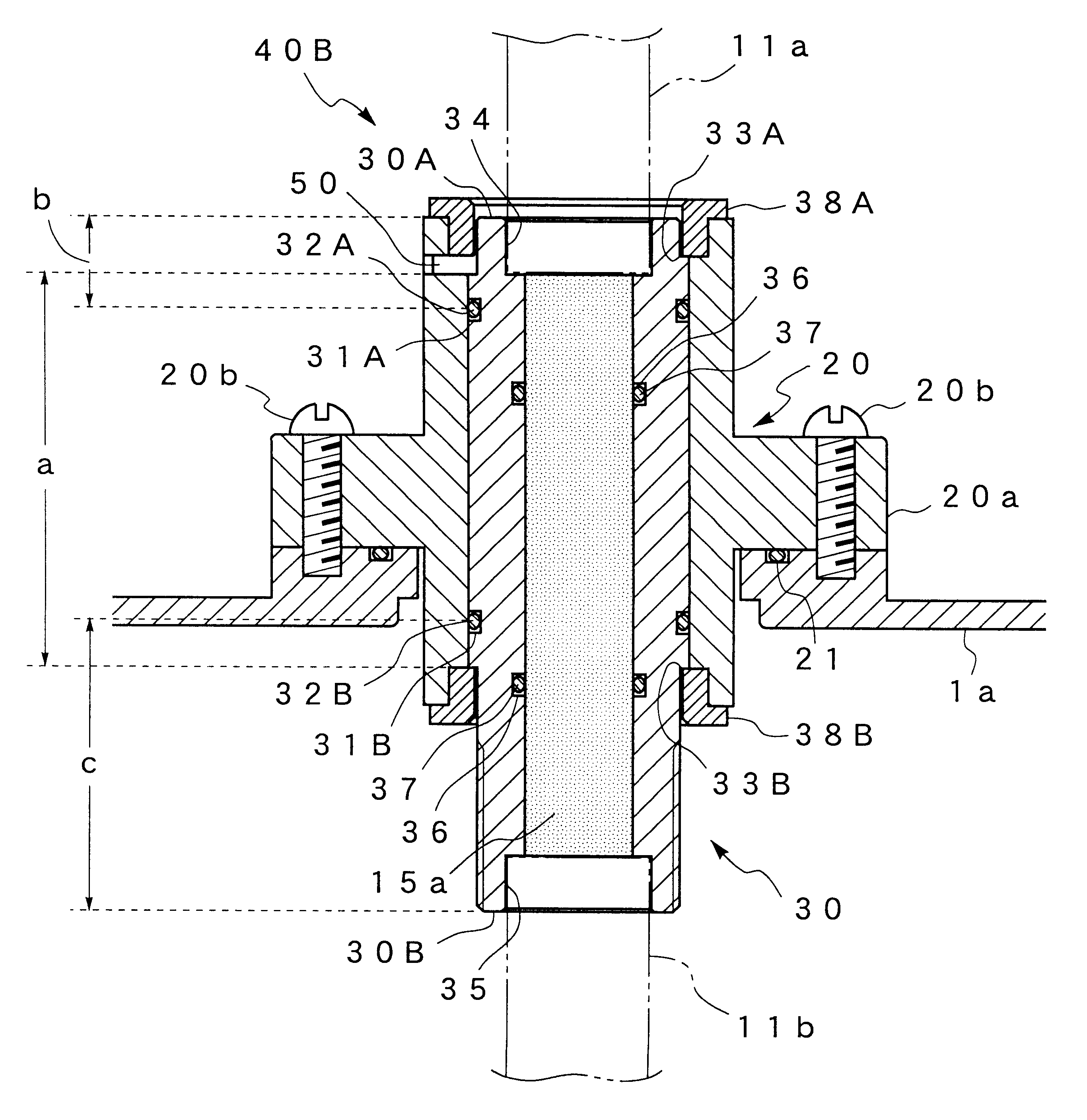

An airtight adapter to be mounted to an airtight unit requiring airtightness, e.g. a glove box, with which it is possible to easily replace a part of the airtight adapter while maintaining airtightness. The adapter has an outer-cylinder adapter body, an internal adapter body inserted into and fitted in the outer-cylinder adapter body and at least two annular sealing members positioned between the internal adapter body and the outer-cylinder adapter body. By determining a length of the outer-cylinder adapter body and positions of the sealing members, the internal adapter body can be easily, airtightly replaced by bringing a spare internal adapter body into contact with the already-fitted internal adapter body at the outside of the airtight unit; pushing and inserting the spare internal adapter body into the cylinder of the outer-cylinder adapter body while moving the already-fitted internal adapter body toward the inside of the airtight unit; securing the spare internal adapter body at a predetermined position in the cylinder of the outer-cylinder adapter body.
First Claim
Other Claims data not available
