Fireplace with vertical or horizontal venting
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2001
Grant Date -
N/A
app pub date -
Jan 12, 2000
filing date -
Jan 13, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

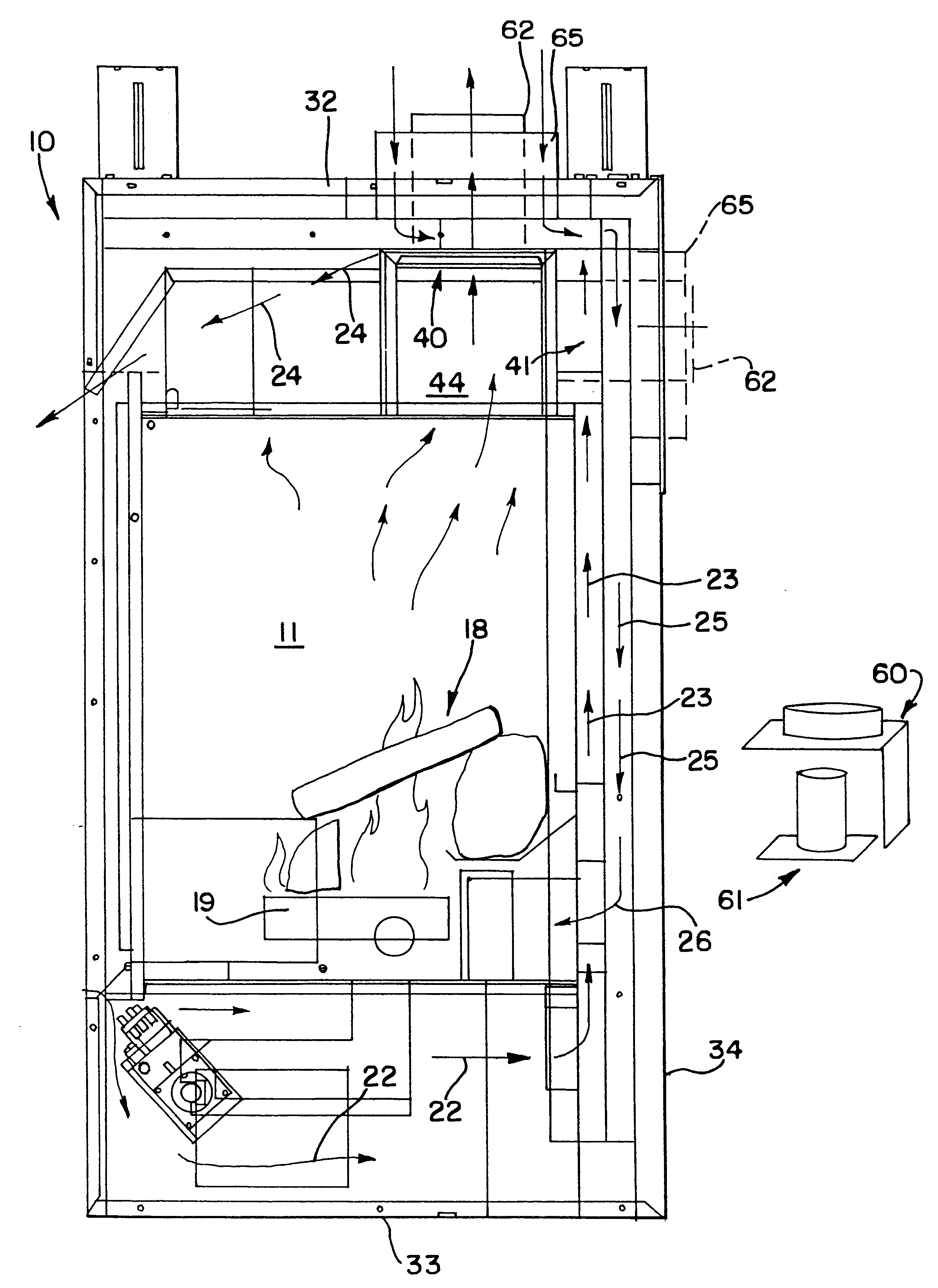

A fireplace adapted for attachment to a flue pipe assembly including an exhaust pipe and a surrounding fresh air pipe is provided. The fireplace comprises an interior housing. The interior housing forms a combustion chamber. The fireplace also comprises a top wall, a rear wall and side walls. These walls define an exterior housing about the combustion chamber. A combustion air flowpath is defined within the housing through which air for combustion is brought from outside the housing into the combustion chamber. The fireplace also comprises a top port formed in the top wall and a rear port formed in the rear wall. Each of the top and rear ports include a first portion that communicates with the combustion chamber and a second portion that communicates with the combustion air flowpath. Finally, the fireplace comprises a vent pipe assembly. The vent pipe assembly includes an inlet air pipe member and an outlet air pipe member. The outlet air pipe member is connectable with the selected port at the first portion. The inlet air pipe member is connectable with the selected port at the second portion. The inlet air pipe member further includes a plate portion which overlies and closes an unselected port. The vent pipe assembly is non-integral with the housing and is movable between the top port and the rear port.
First Claim
Other Claims data not available
