Measurement apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 25, 2001
Issued Date -
N/A
app pub date -
Oct 23, 1998
filing date -
Oct 27, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

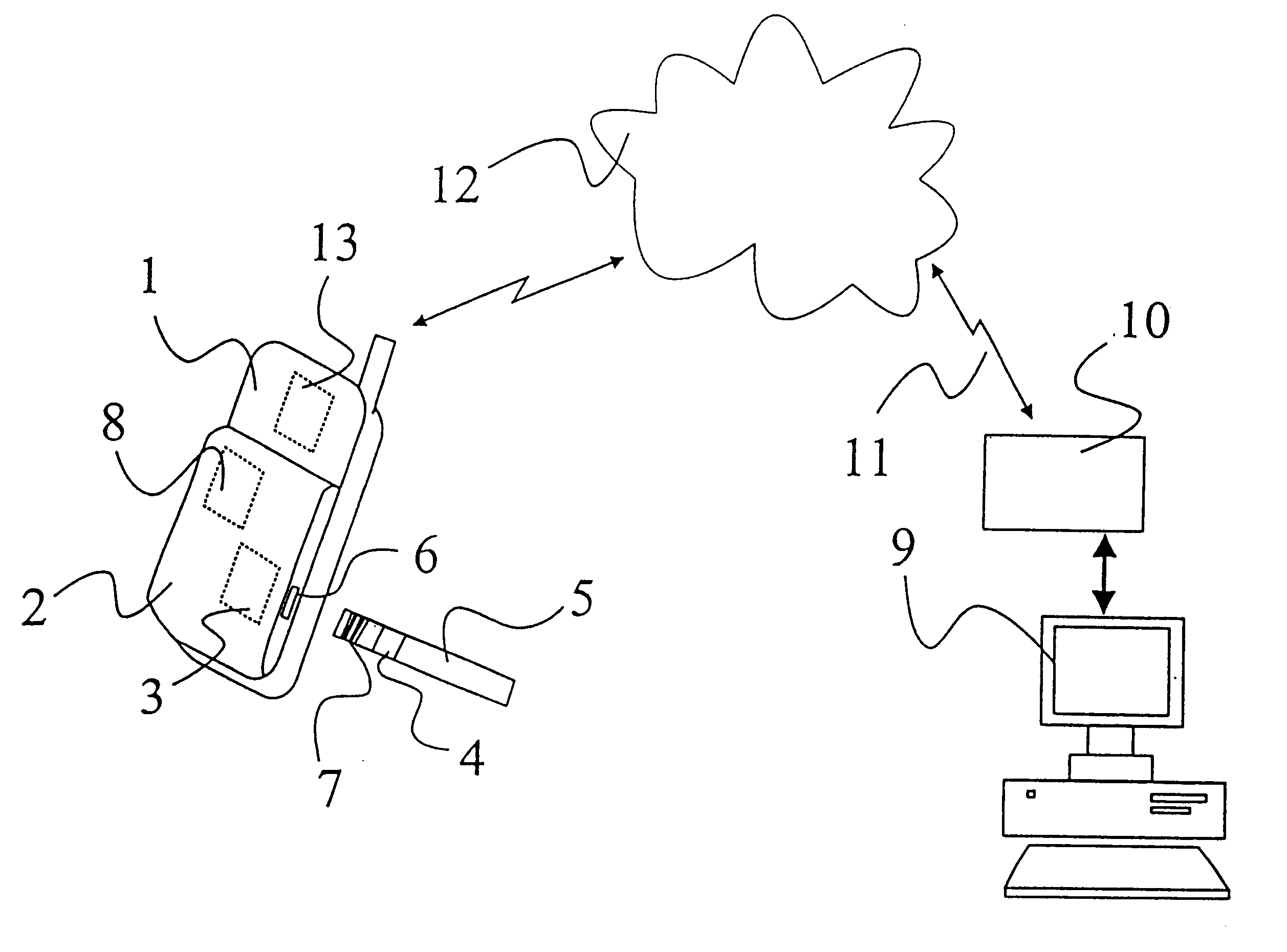

A system for measuring the blood glucose level in a sample of a patient's blood. Consumable test strips (5) are provided together with a code (7) which identifies the manufacturing batch of the strip (5). A measurement unit (2) is provided and is coupled to a mobile telephone (1). The measurement unit (2) is arranged to receive a test strip (5) and to determine a color change in a reagent (4) due to reaction of the reagent (4) with a blood sample. The identification code (7) is read at the same time by the measurement unit (3) and is transmitted by the mobile telephone (1) to a central database (9) provided by the test strip manufacturer. The database (9) contains identification codes (7) together with associated calibration data. Upon receipt of an identification code (7), the remote database (9) transmits the associated calibration data to the mobile telephone (1) which uses the calibration data to calculate a test result from the measured change in color. The result can be displayed to the patient on a display of the telephone (1).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1041 Citation Count
- A61B Class
- 90.37 % this patent is cited more than
- 24 Age
