Installation for positioning and welding body parts of different types of motor vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 25, 2001
Grant Date -
N/A
app pub date -
Jul 26, 2000
filing date -
May 6, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

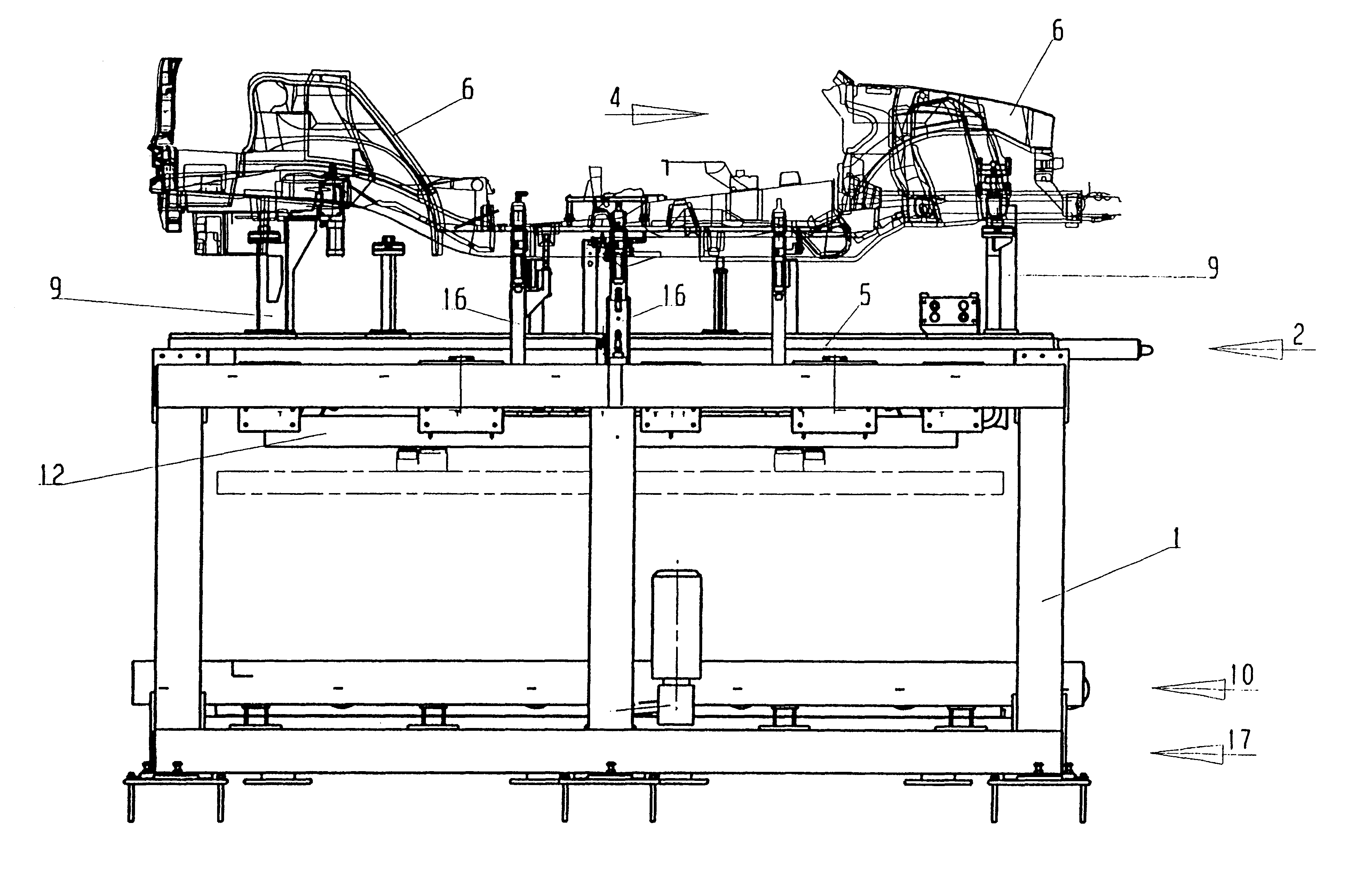

An installation for positioning and welding body parts of different types of motor vehicles. The installation includes a mounting frame (5) which is guided on a conveyor line and which has receiving elements for at least some vehicle body parts. Positioning devices (8) are provided for the vehicle body parts (6) and at least one robot is provided for carrying out welding work. The invention is very flexible in terms of product modifications. The mounting frame (5) has positioning devices for at least some vehicle body parts (6) and clamping devices for the vehicle body parts. An additional (lower) conveyor line (10) is located under the first conveyor (2). One of several auxiliary mounting frames (12) is guided on the additional conveyor line. Parking positions (13) for the auxiliary mounting frames (12) are provided next to the lower conveyor line (10). The auxiliary mounting frames (12) each have receiving elements for other vehicle body parts of different types of vehicles and devices for positioning and clamping with the mounting frame (5). A lifting device (17) is also provided for the auxiliary mounting frame (12).
