Heat exchange equipment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 21, 2001
Grant Date -
N/A
app pub date -
Jul 21, 1999
filing date -
Jul 23, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

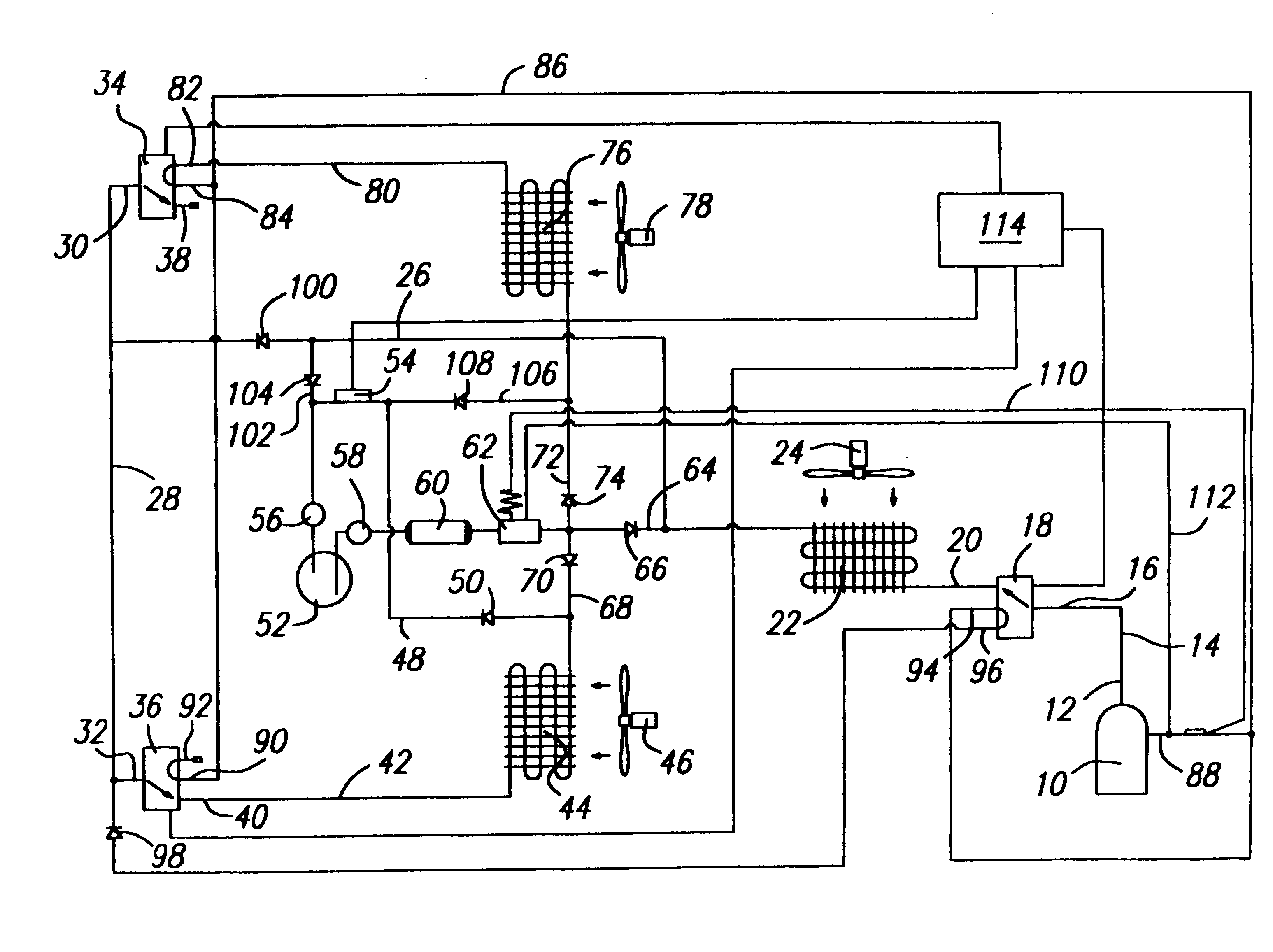

Heat exchange equipment comprising a compressor which is connected to an indoor heat exchanger and also to two outdoor heat exchangers, and flow-direction changing means to change the direction of flow in the heat exchangers whereby each of the outdoor heat exchangers can be defrosted whilst the other continues to remove heat from its surroundings. Pressure lowering means are provided between the two outdoor heat exchangers. The flow-direction changing means are provided between the compressor and the heat exchangers and are controlled by control means to switch alternately between a first direction of flow of the heat exchange fluid, in which the latter passes from the indoor heat exchanger to one of the outdoor heat exchangers to defrost it, and thence to the other outdoor heat exchanger via the said pressure lowering means before it is returned to the compressor, so that the said other outdoor heat exchanger removes heat from its surroundings, and a second direction of flow of the heat exchange fluid, wherein the latter passes from the indoor heat exchanger to the said other outdoor heat exchanger to defrost it, and thence to the said one of the other outdoor heat exchangers via the said pressure lowering means, before it is returned to the compressor, so that the said one of the outdoor heat exchangers removes heat from its surroundings.
First Claim
Other Claims data not available
