Test device for testing a module for a data carrier intended for contactless communication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 14, 2001
Grant Date -
N/A
app pub date -
Aug 18, 1999
filing date -
Aug 21, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

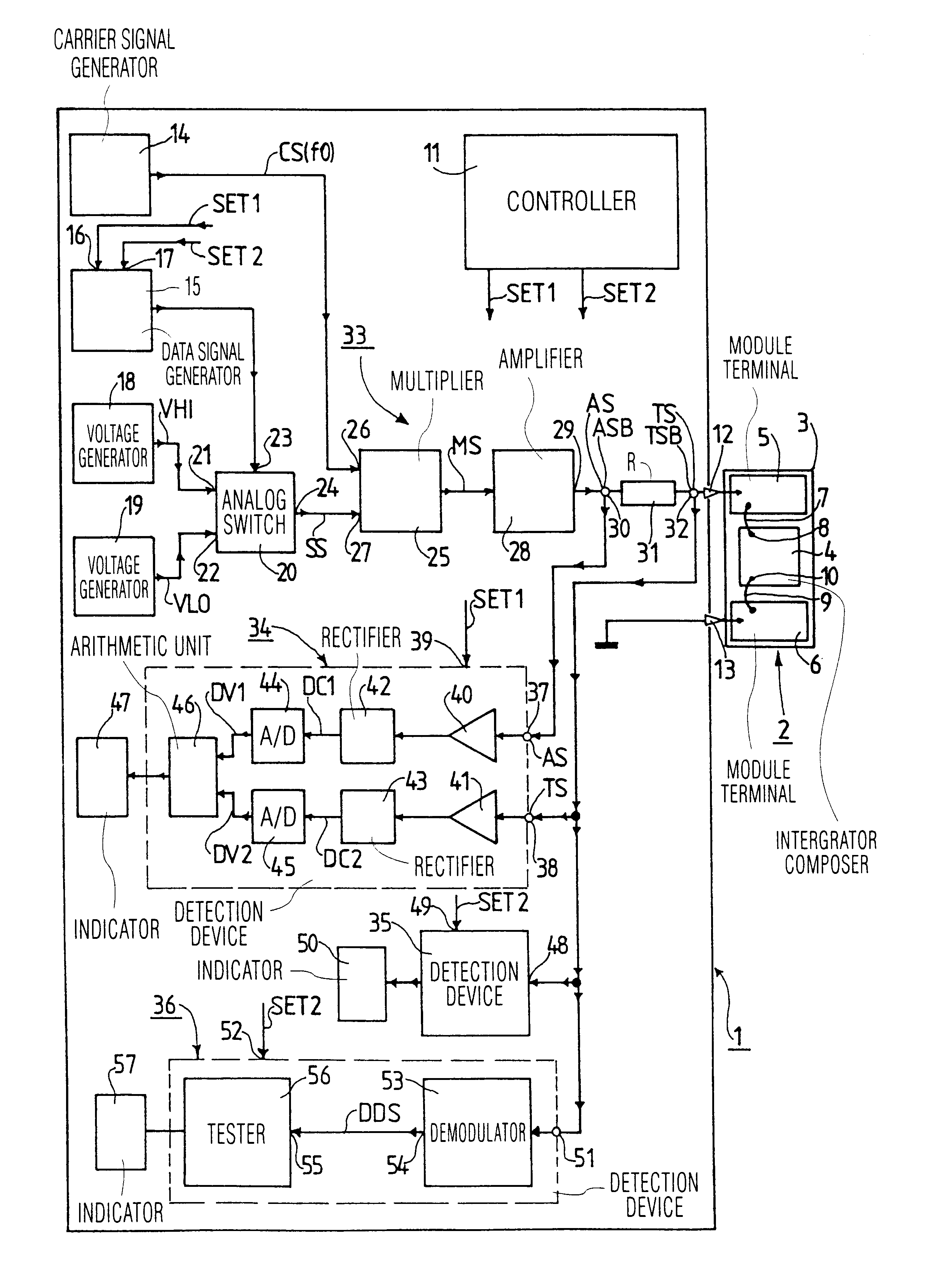

A test device (1) for testing a module (2) for a data carrier intended for contactless communication includes a carrier signal generator (14) which is arranged to generate a carrier signal (CS) whereby a test signal (TS) can be generated, a conductive connection being provided between the carrier signal generator (14) and a module (2) to be tested, which connection includes an impedance (31), preferably being a series resistor (31), which is connected directly ahead of a module terminal (5) of the module (2) to be tested, the test device (1) being provided with at least one detection device (34, 35) for determining an analog characteristic value (C, m) of a module (2) to be tested while utilizing the test signal (TS) appearing on an impedance terminal (32) of the impedance (31).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 41 Citation Count
- H04Q Class
- 72.99 % this patent is cited more than
- 24 Age
