Method of and means for upgrading hydrocarbons containing metals and asphaltenes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 14, 2001
Grant Date -
Jun 7, 2001
app pub date -
Jul 9, 1999
filing date -
Aug 13, 1997
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

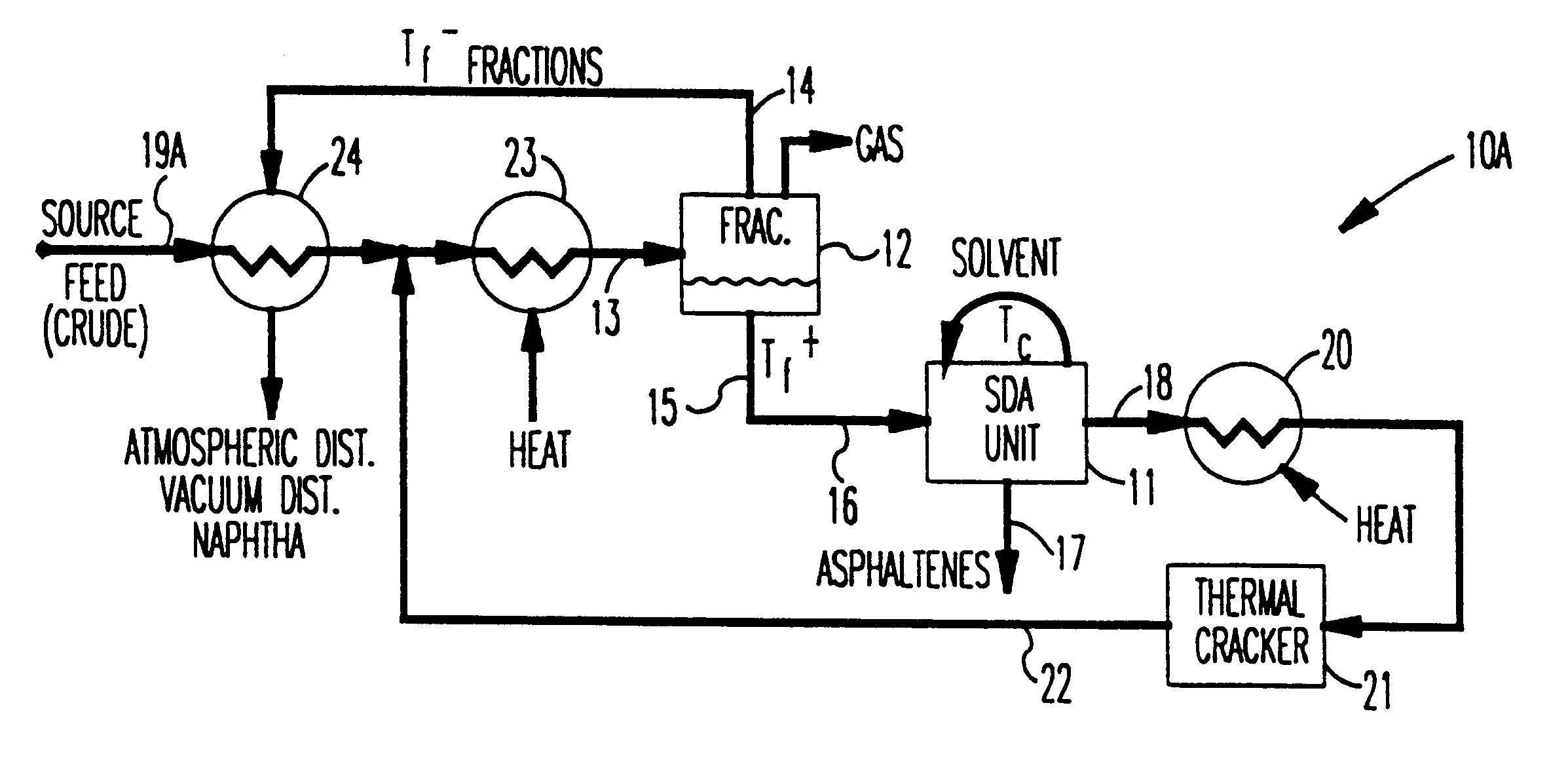

A hydrocarbon source feed is upgraded using a solvent deasphalting (SDA) unit employing a solvent having a critical temperature T.sub.c by initially separating from a first hydrocarbon input stream fractions with an atmospheric equivalent boiling temperature less than about T.sub.f.degree. F. for producing a stream of T.sub.f.sup.- fractions and a residue stream (T.sub.f.sup.+ stream), where T.sub.f is greater than about T.sub.c -50.degree. F. In the SDA unit, a second hydrocarbon input stream which includes the residue stream is deasphalted for producing a first product stream of substantially solvent-free asphaltenes, and a second product stream containing substantially solvent-free deasphalted oil (DAO). The source feed may be included in either the first or second input streams. The DAO in the second product stream is thermally cracked for producing an output stream that includes thermally cracked fractions and by-product asphaltenes produced by thermally cracking the DAO. Finally, at least some the said thermally cracked fractions are included in the first input stream.
First Claim
Other Claims data not available
